Kilargo IS7080 Compact Acoustic Door Perimiter Seal
IS70802500CA

This is a non-stocked item which leaves the warehouse in 3-5 business days after payment is made.

Perimeter Seal can be used to replace the door stop on both steel and timber door frames, where frames are non fire-rated.

Perimeter Seal Function - A wide selection of slimline perimeter seals for use around the head, jambs, and meeting stiles of doors. These seals are suited for use with drop seals or door bottom seals and can accommodate a wide range of gap widths and applications.

Features:

  • Aesthetically designed, compact perimeter seal, proven to be effective acoustic, cold smoke, light and weather seals.

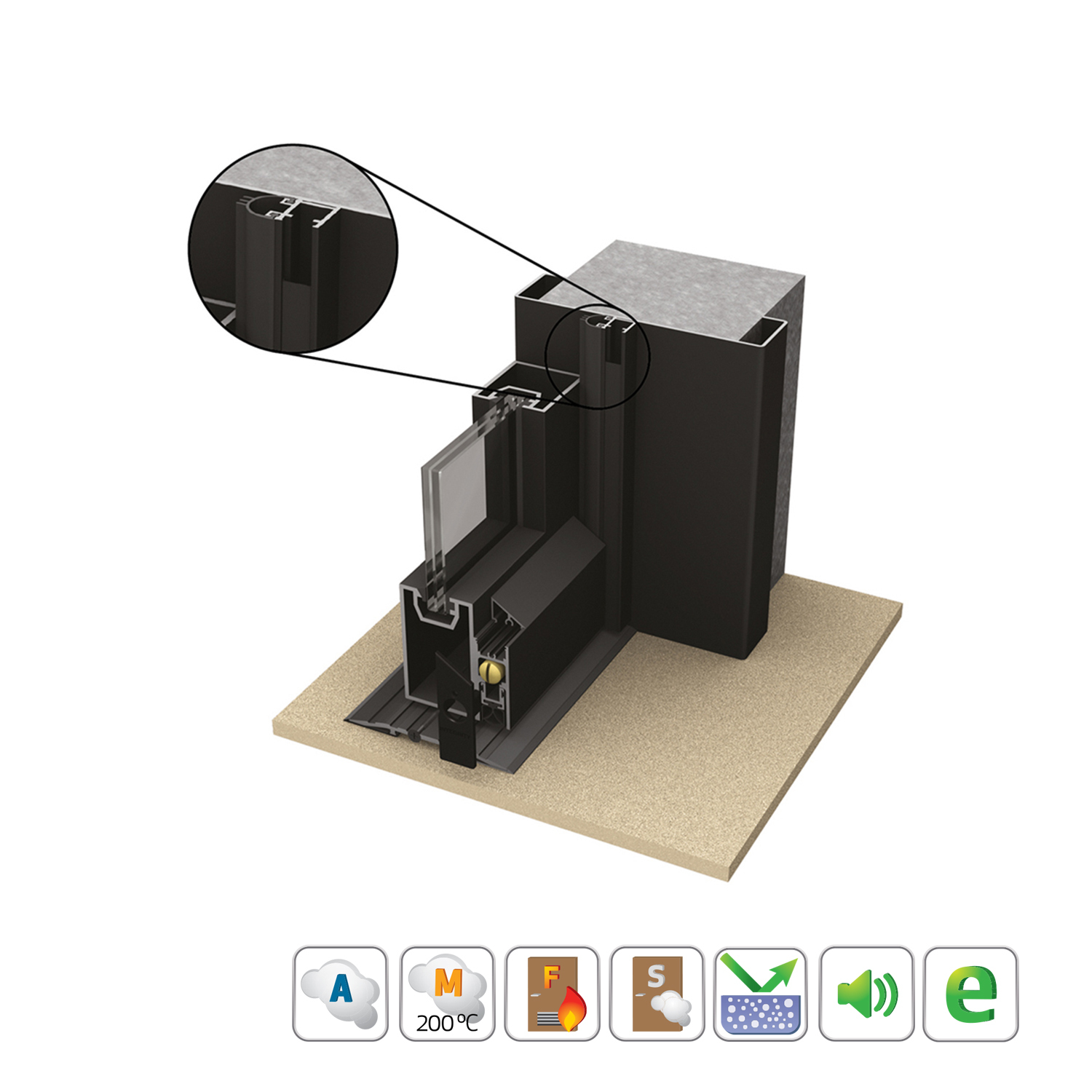

  • Can be installed in lieu of a door stop on both steel and timber door frames (where frames are non fire-rated).
  • The fixing holes are pre-drilled and slotted to allow the seal to be adjusted and positioned accurately.
  • A decorative cover strip is supplied to conceal fixings.

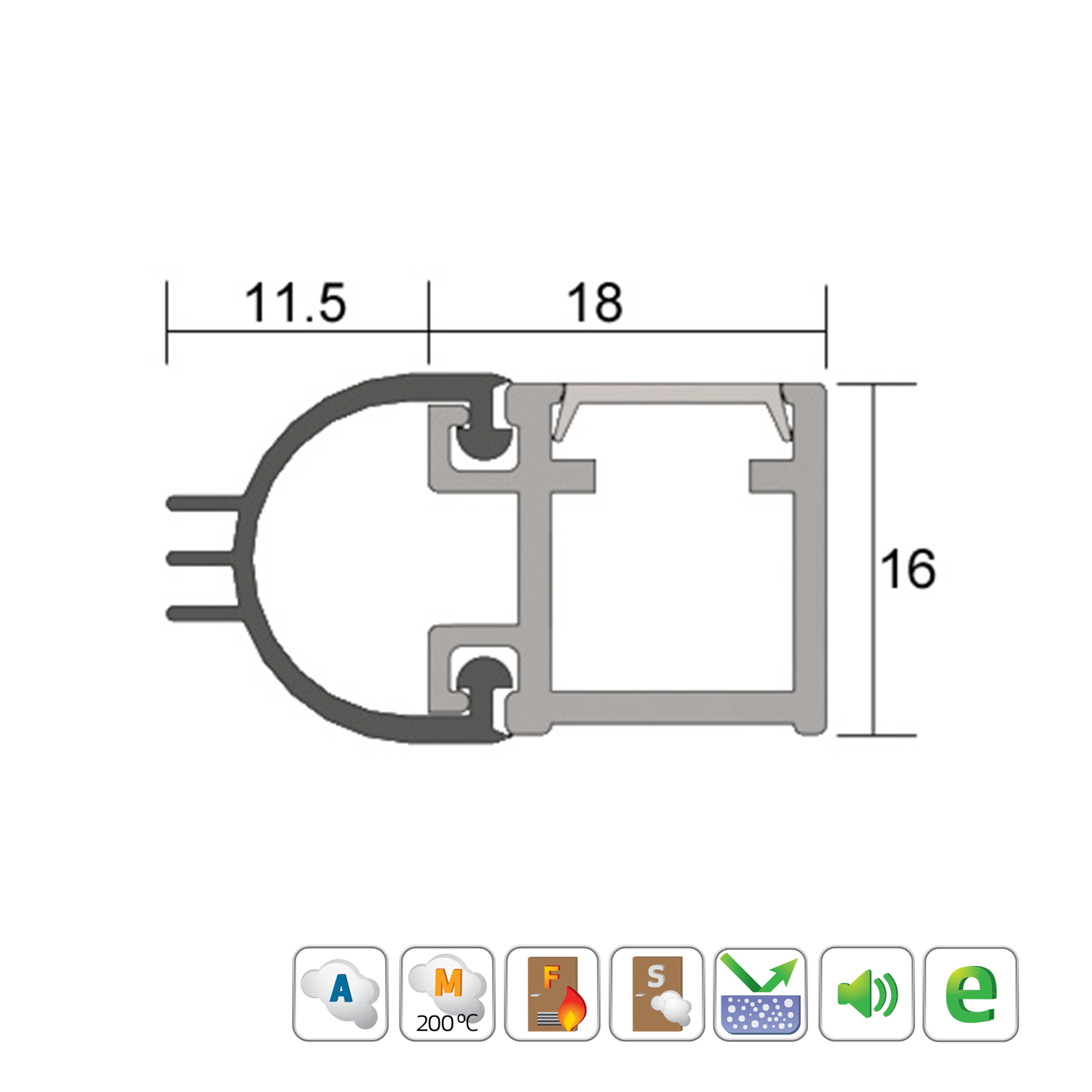

Specifications:

  • Gap Size: Min. 0mm / max. 10mm
  • Lenght: 2500
  • Finish: Clear Anodised
  • Fixing: When fixing IS7080 to rebated frames of single doors, specify a long back set door latch

Approvals:

  • Acoustically tested in accordance with AS1191, IS0140.3 and ISO10140-2
SKU KILIS70802500CA
Brand Kilargo
