Kilargo Door Perimeter Seal
IS7080AMSILDDSCA

PLEASE NOTE: This item is Non-returnable. Upon placing your order, it CAN'T be cancelled or returned (unless faulty or damaged)

This is a non-stocked item which leaves the warehouse in 5-10 business days after payment is made.

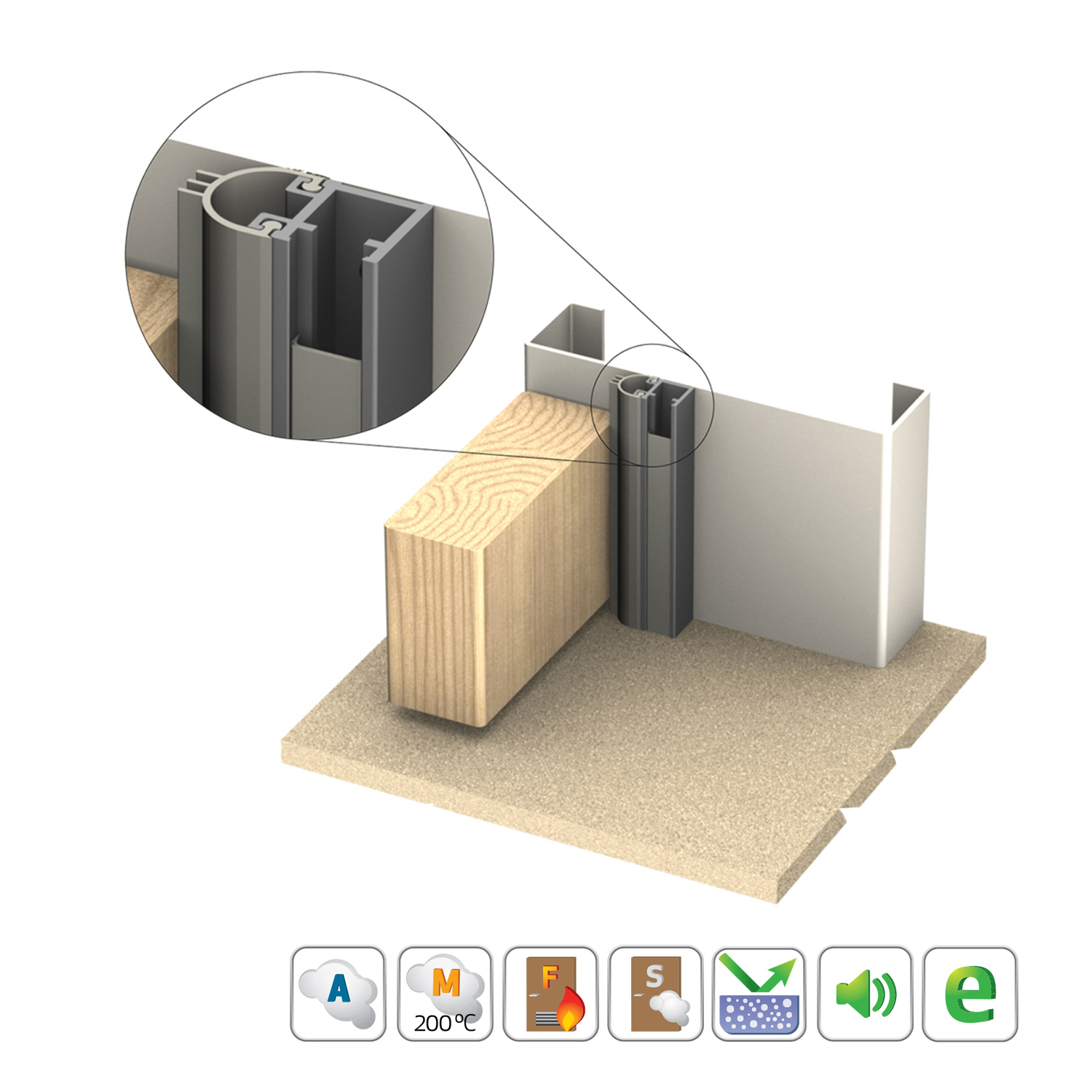

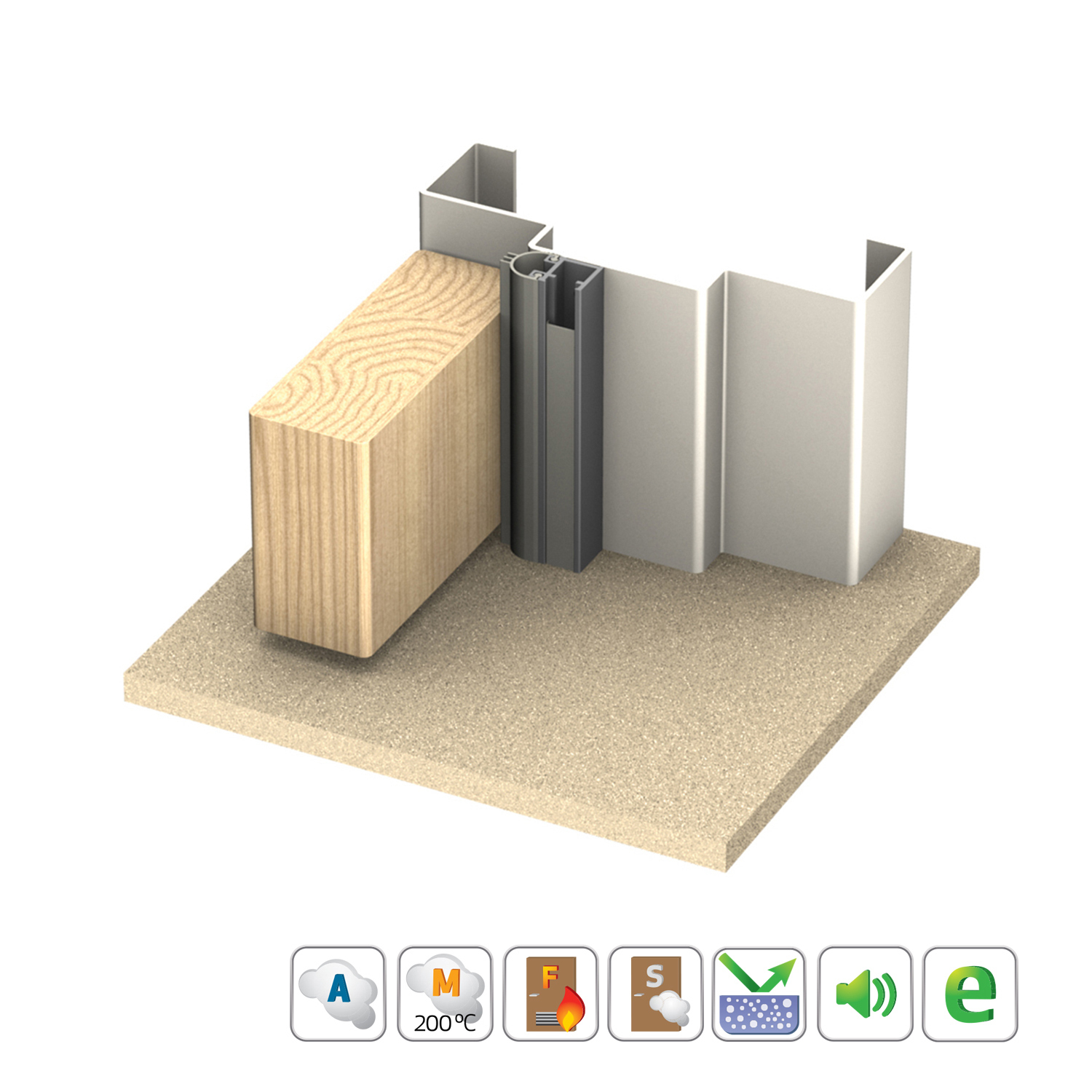

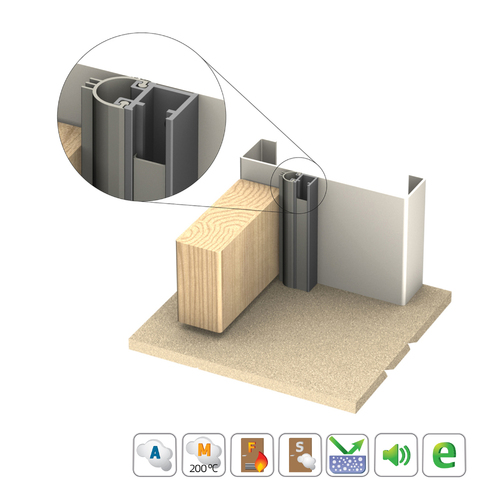

Perimeter Seal can be used to replace the door stop on both steel and timber door frames, where frames are non fire-rated.

Perimeter Seal Function - A wide selection of slimline perimeter seals for use around the head, jambs, and meeting stiles of doors. These seals are suited for use with drop seals or door bottom seals and can accommodate a wide range of gap widths and applications.

Features:

• Designed for high performance acoustic applications and is fitted to the head and jambs of door frame perimeters, with or without door stops
• This seal can achieve up to 10mm sealing adjustment once the seal has been fitted for maximum sound control
• Fixing screws are concealed behind an aesthetic, tamper-proof aluminium cover plate
• Has been successfully tested on proprietary fire door assemblies (mounted on a 25mm frame stop)

Specifications:

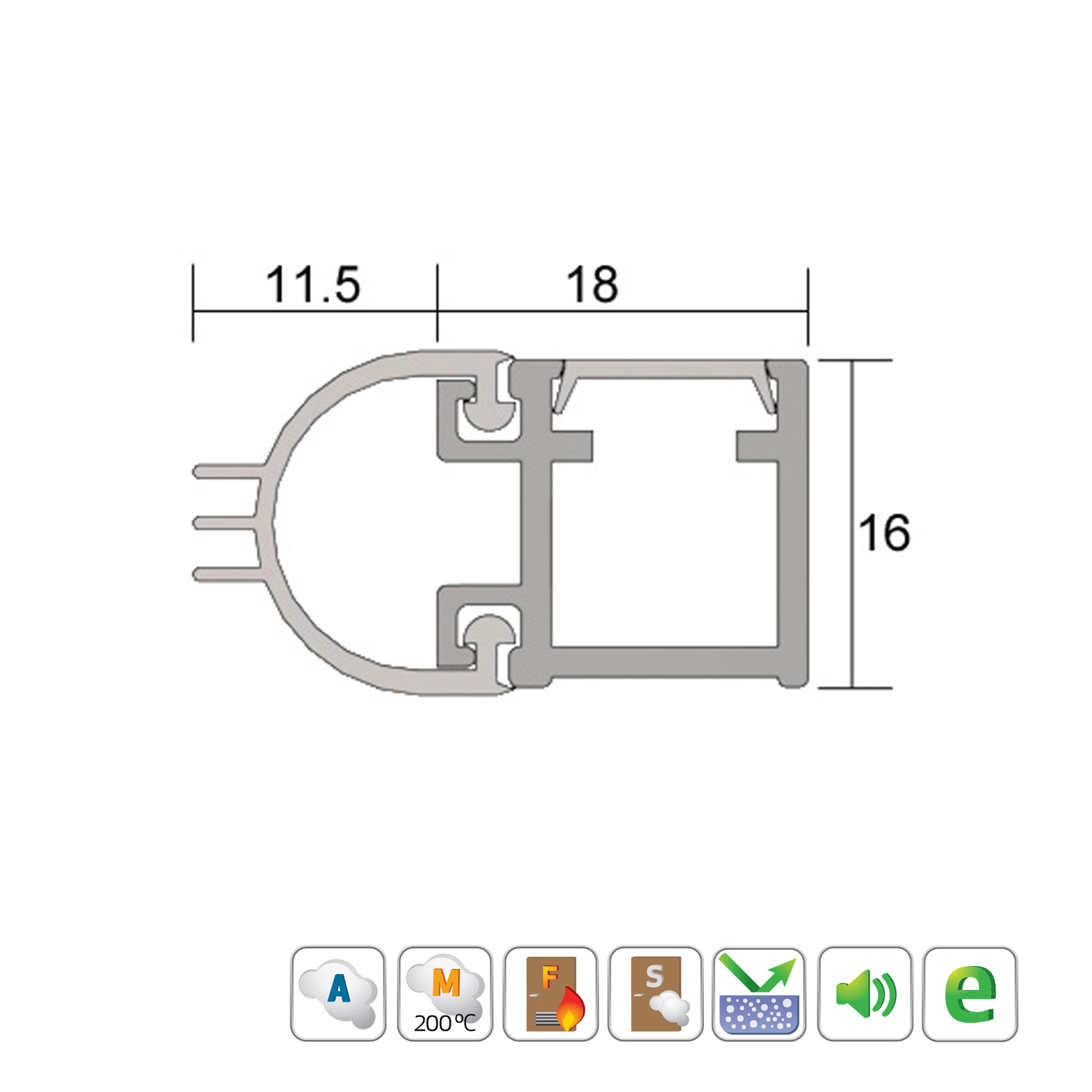

• Gap size: Min. 0mm / max. 10mm
• Door Set Standard Lengths: Long Double Door Set: 1 x 2100mm, 2 x 2750mm
• Anti-microbial: Yes
• Finish: Clear Anodised
• Fixing: When fixing IS7080si to rebated frames of single doors, specify a long back set door latch

Approval/s:

• Fire tested to AS1530 Part 4 in accordance with AS1905 Part 1
• Certifications GVYI.R26629, GVWZ.R26629, GVWZ7.R26629
• Medium temperature smoke leakage approvals to AS1530 Part 7 available on proprietary door assemblies
• Acoustically tested in accordance with AS1191, IS0140.3 and ISO10140-2
• Durability tests demonstrate over 100,000 open and close cycles

Antimicrobial Architectural Seals

• The threat of bacterial infection exists in all environments, but particularly in ‘high traffic’ commercial buildings. Dangerous bacteria live on all common surfaces, including doors, door hardware and door seals. These can be easily spread by simple human contact.
• To assist in suppressing the growth & spread of these bacteria, Kilargo has incorporated antimicrobial technology into the manufacture of its range of silicone door seals. Our innovative range of antimicrobial silicone gaskets provide outstanding performance with unbeatable hygiene, eliminating up to 99.99% of bacteria.
• Manufactured with in-built SteriTouch® protection, they are designed for ‘clean room’ environments and buildings that demand superior infection control, including:
  • hospitals, medical centres and nursing homes
  • laboratories and testing facilities
  • childcare centres and schools
  • food-handling areas

SteriTouch®

Like all Kilargo products, our SteriTouch® range is professionally manufactured to exacting standards - providing exceptional solutions for containing sound, limiting the spread of smoke, improving energy efficiency and preventing weather infiltration. Along with incredible bacteria resistance, they’re the perfect choice for the most hygienic buildings.

What is SteriTouch®?

• SteriTouch® additives use the proven, natural sterilising properties of silver to reduce the growth of harmful bacteria, mould and fungi by up to 99.99%. In fact, SteriTouch® provides protection against a wide range of pathogens, and is particularly effective against illnesscausing bacteria such as E.Coli, Salmonella and MRSA.
• A trusted and established brand, SteriTouch® is safe for even the most sensitive applications and is backed by independent testing and continual assessment. In line with Kilargo’s ‘green’ commitment, SteriTouch® additives do not leach and have no environmental impact.
• Best of all, the antibacterial qualities of silver are constantly active and enduring - bringing the peace-ofmind and lasting protection you need.
