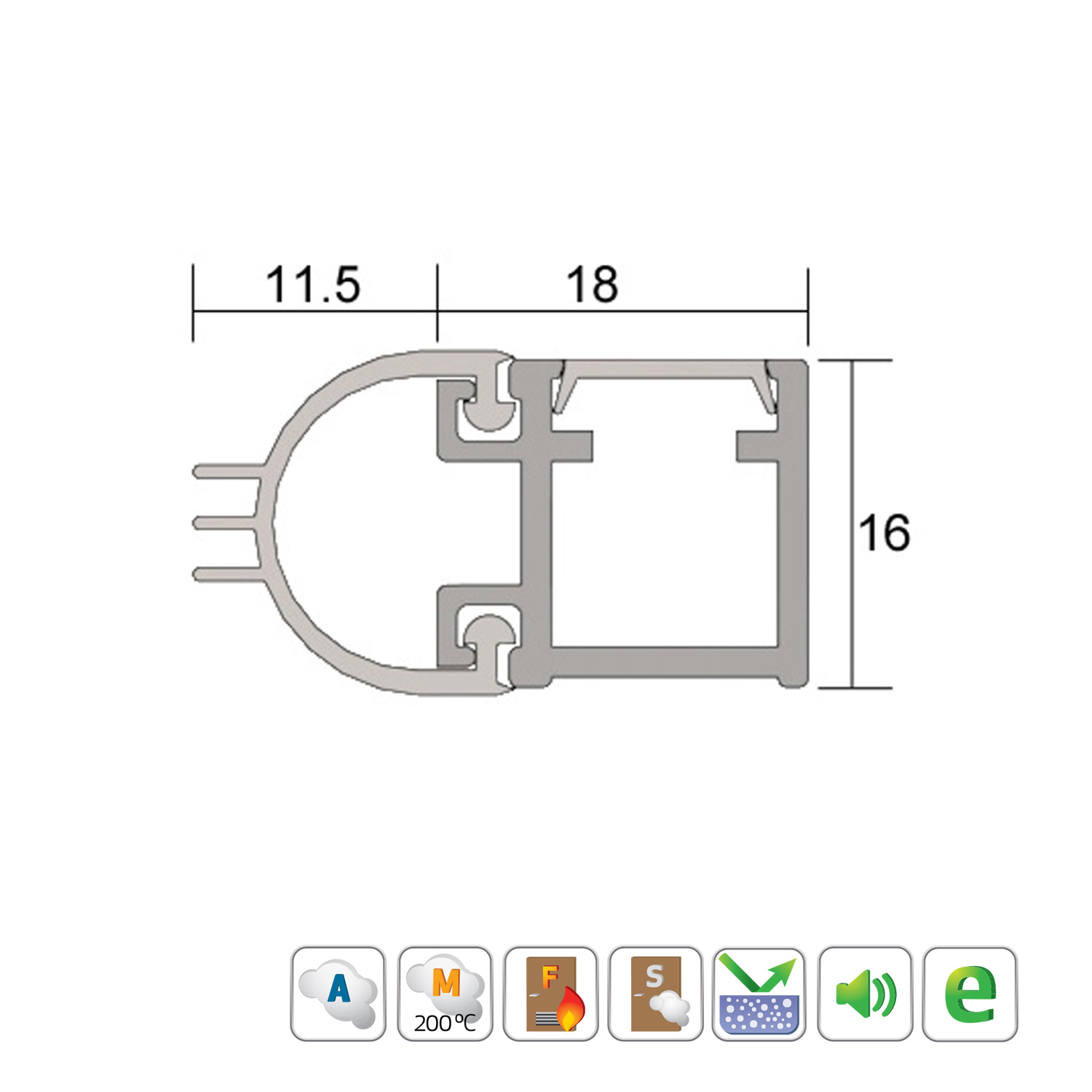

Kilargo Door Perimeter Seal
IS7080SILSDSBK

Perimeter Seal can be used to replace the door stop on both steel and timber door frames, where frames are non fire-rated.

Perimeter Seal Function - A wide selection of slimline perimeter seals for use around the head, jambs, and meeting stiles of doors. These seals are suited for use with drop seals or door bottom seals and can accommodate a wide range of gap widths and applications.

Features:

  • Designed for high performance acoustic applications and is fitted to the head and jambs of door frame perimeters, with or without door stops
  • This seal can achieve up to 10mm sealing adjustment once the seal has been fitted for maximum sound control
  • Fixing screws are concealed behind an aesthetic, tamper-proof aluminium cover plate
  • Has been successfully tested on proprietary fire door assemblies (mounted on a 25mm frame stop)

Specifications:

  • Gap size: Min. 0mm / max. 10mm
  • Door Set Standard Lengths: Long Single Door Set: 1 x 1000mm, 2 x 2750mm
  • Anti-microbial: No
  • Finish: Black Anodised
  • Fixing: When fixing IS7080si to rebated frames of single doors, specify a long back set door latch

Approval/s:

  • Fire tested to AS1530 Part 4 in accordance with AS1905 Part 1
  • Certifications GVYI.R26629, GVWZ.R26629, GVWZ7.R26629
  • Medium temperature smoke leakage approvals to AS1530 Part 7 available on proprietary door assemblies
  • Acoustically tested in accordance with AS1191, IS0140.3 and ISO10140-2
  • Durability tests demonstrate over 100,000 open and close cycles
SKU KILIS7080SILSDSBK
Barcode # 9355723029823
Brand Kilargo
