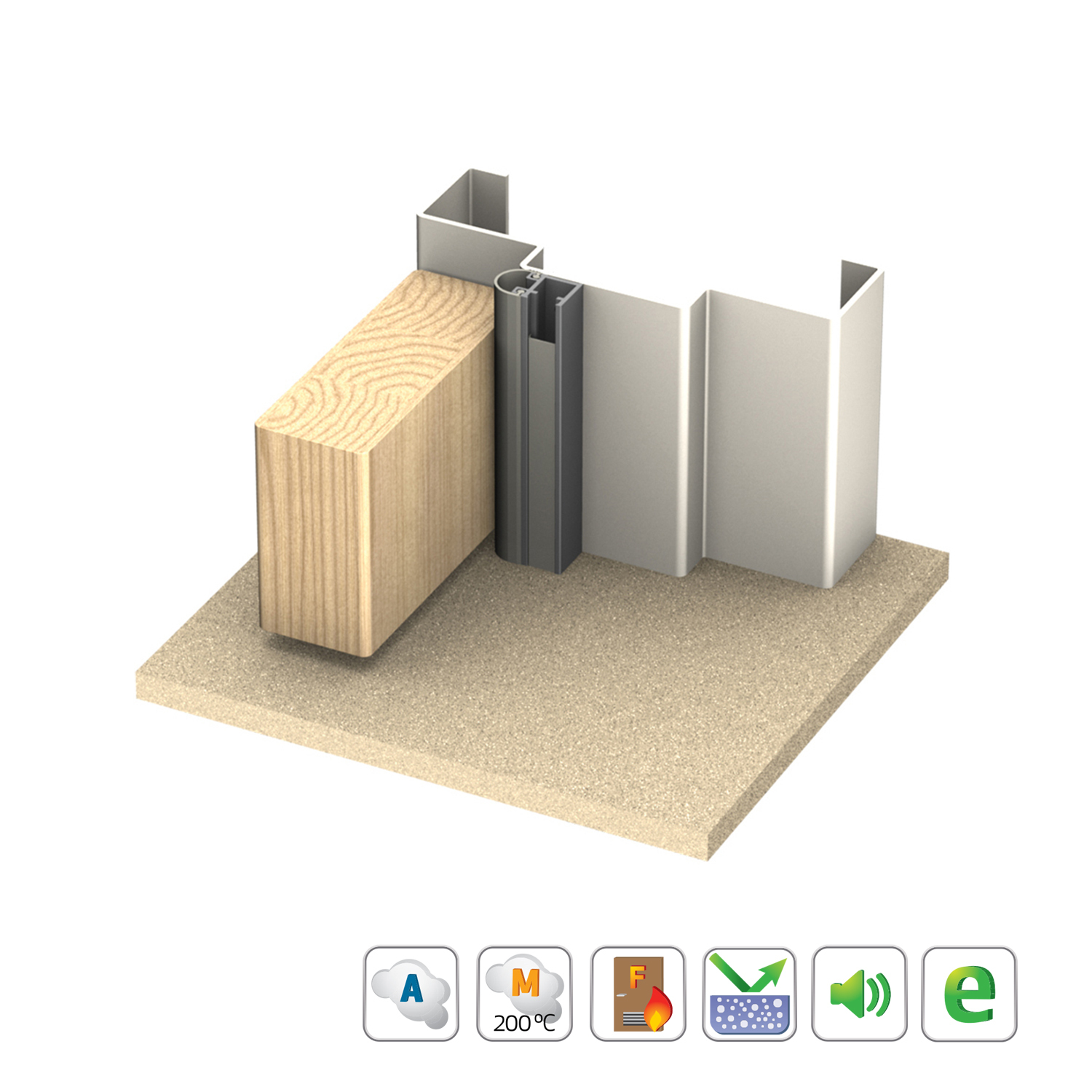

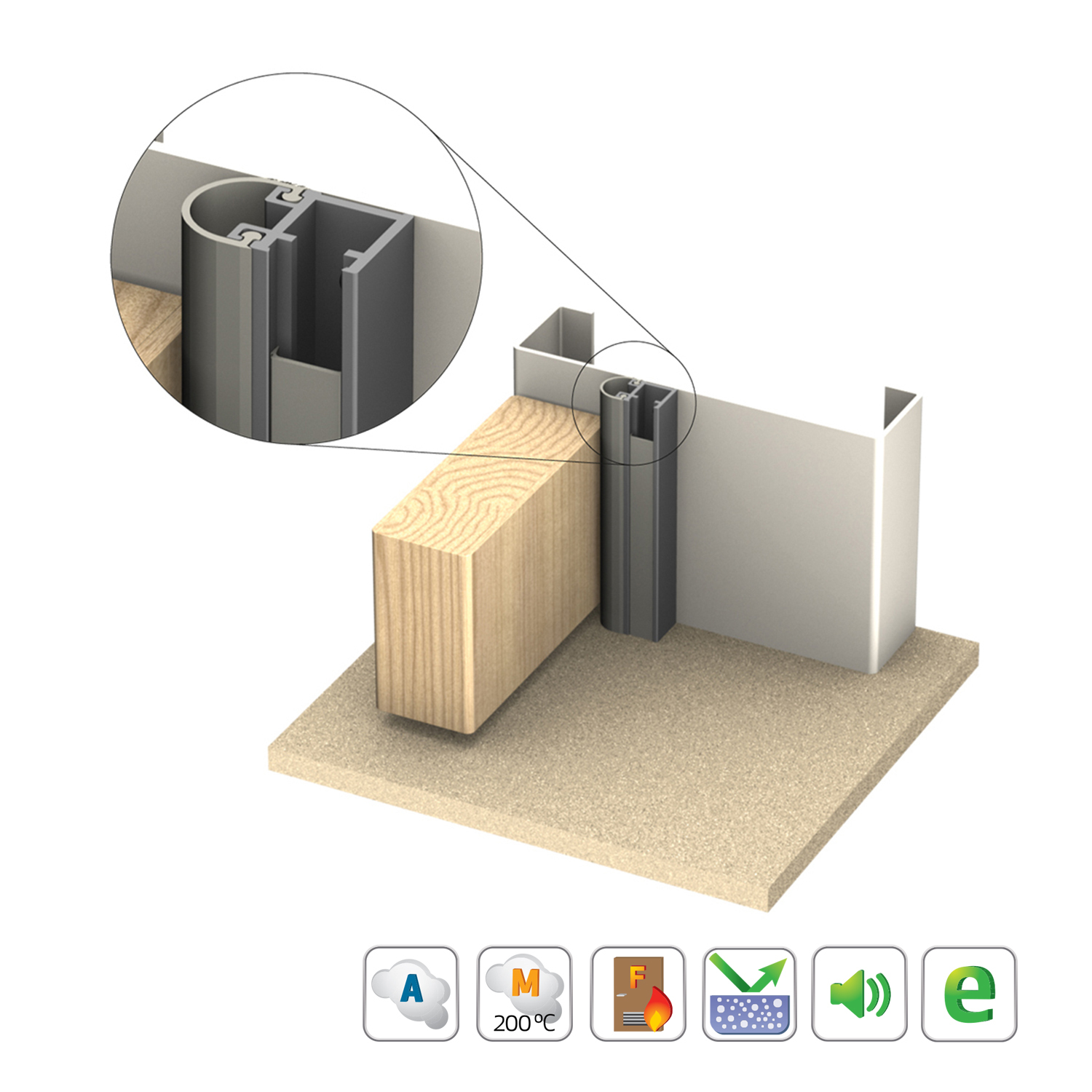

Kilargo IS7085SI Compact Acoustic Perimeter Seal
IS7085SI4000CA

This is a non-stocked item which leaves the warehouse in 3-5 business days after payment is made.

Perimeter Seal can be used to replace the door stop on both steel and timber door frames, where frames are non fire-rated.

Perimeter Seal Function - A wide selection of slimline perimeter seals for use around the head, jambs, and meeting stiles of doors. These seals are suited for use with drop seals or door bottom seals and can accommodate a wide range of gap widths and applications.

Features:

• An aesthetic compact perimeter seal, specifically designed for ‘clean room’ applications
• The highly resilient, smooth silicone rubber gasket allows for easy cleaning and assists in preventing the movement of air borne contaminates, whilst also contributing to reduced sound transmission.

Specifications:

• Gap Size: Min. 0mm / max. 7mm
• Door Set Standard Lengths:
  • Single: 1 x 1000mm, 2 x 2100mm
  • Long Single: 1 x 1000mm, 2 x 2750mm
  • Double: 3 x 2100mm
  • Long Double: 1 x 2100mm, 2 x 2250mm
• Length: 4000mm
• Anti-Microbial: No
• Finish: Clear Anodised
• Fixing: When fixing the IS7085si seal to rebated frames of single doors, specify a long back set door latch

Approval/s:

• Fire tested to AS1530 Part 4 in accordance with AS1905 Part 1
• Certifications GVYI.R26629, GVWZ.R26629, GVWZ7.R26629
• Medium temperature smoke leakage approvals to AS1530 Part 7 available on proprietary door assemblies
• Acoustically tested in accordance with AS1191, IS0140.3 & ISO10140-2
