Kilargo IS7195si Acoustic Perimeter Door Seal
IS7195SI3000CA

This is a non-stocked item which leaves the warehouse in 3-5 business days after payment is made.

Perimeter Seal can be used to replace the door stop on both steel and timber door frames, where frames are non fire-rated.

Perimeter Seal Function - A wide selection of slimline perimeter seals for use around the head, jambs, and meeting stiles of doors. These seals are suited for use with drop seals or door bottom seals and can accommodate a wide range of gap widths and applications.

Features:

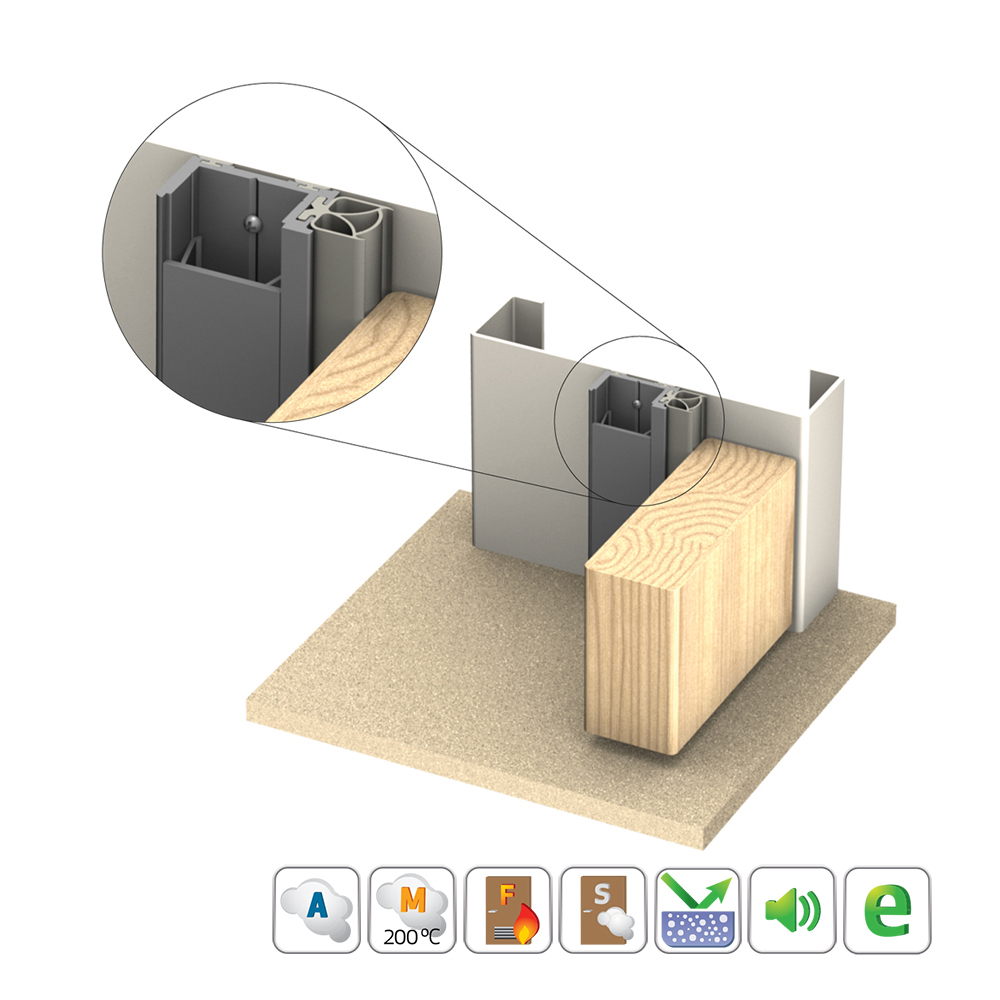

• Designed for high performance acoustic applications and is fitted to the head and jambs of door perimeters (with or without door stops) on steel or timber frames
• Ideal seal for heavy traffic areas such as hospitals, schools, prisons and TAFES, etc.
• An anodised aluminium cover ‘strip’ simply ‘presses’ onto the main carrier to conceal fixings
• Once fitted, the space behind this cover plate can be utilised for low voltage cable management

Specifications:

• Gap size: Min. 0mm / max. 15mm
• Length: 3000mm
• Antimicrobial: No
• Fixing: When fixing the IS7195si seal to rebated frames of single doors, specify a long back set door latch
• Finish: Clear Anodised

Approvals:

• Fire tested to AS1530 Part 4 in accordance with AS1905 Part 1
• Certifications GVYI.R26629, GVWZ.R26629, GVWZ7.R26629
• Medium temperature smoke leakage approvals to AS1530 Part 7 available on proprietary door assemblies
• Acoustically tested in accordance with AS1191, IS0140.3 and ISO10140-2
• Durability tests demonstrate over 100,000 open and close cycles
