Kilargo IS7310si Adjustable Aluminium Meeting Stile

Meeting Stile are seals for frameless glass sliding doors.

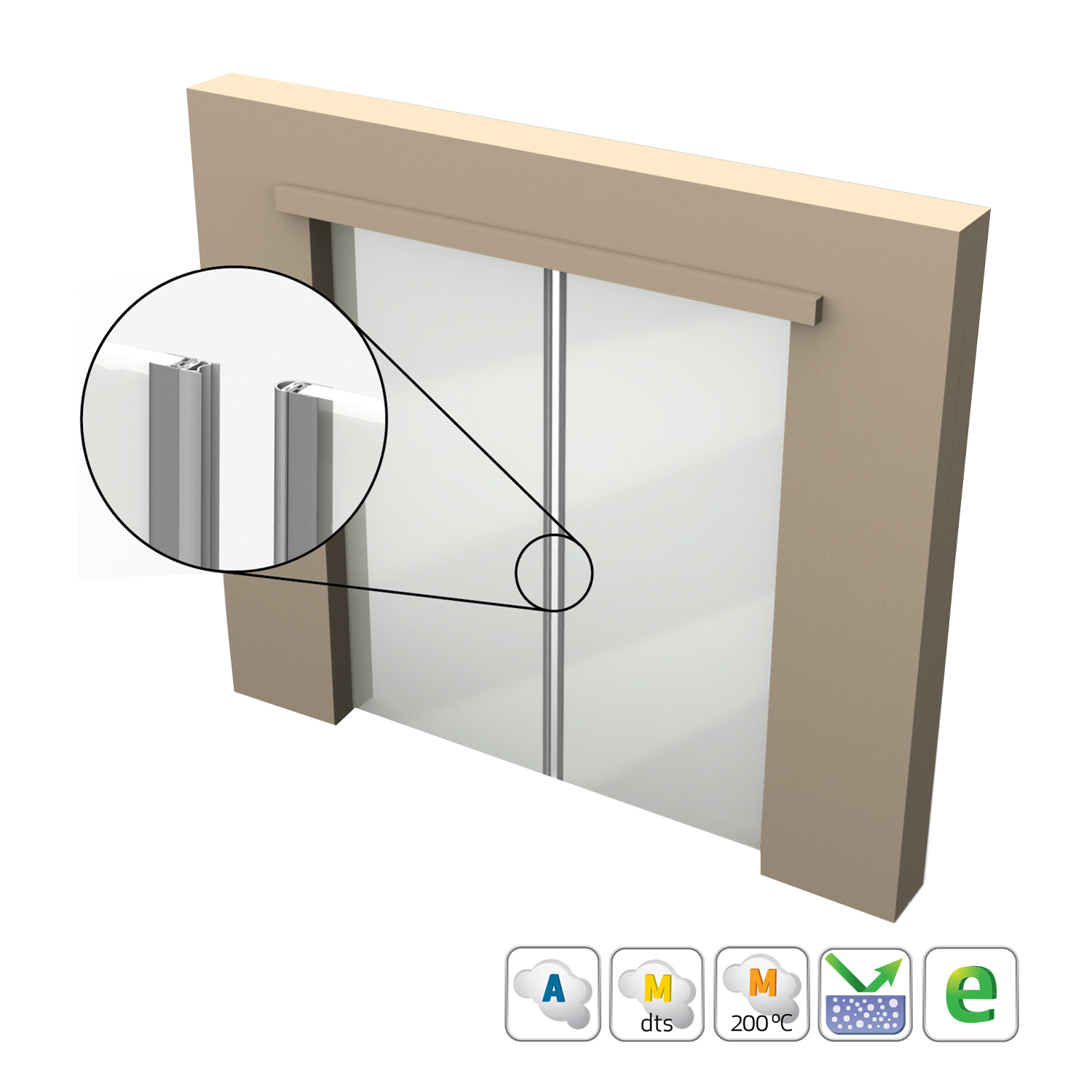

Meeting Stile Function - are applied to a pair of double doors to create a seal over the gap where the doors meet. Properly sealing a set of doors prevents infiltration of sound, light, drafts, thus creating an insulated environment. It can also be applied to contain fire and smoke in emergency situations.

Features:

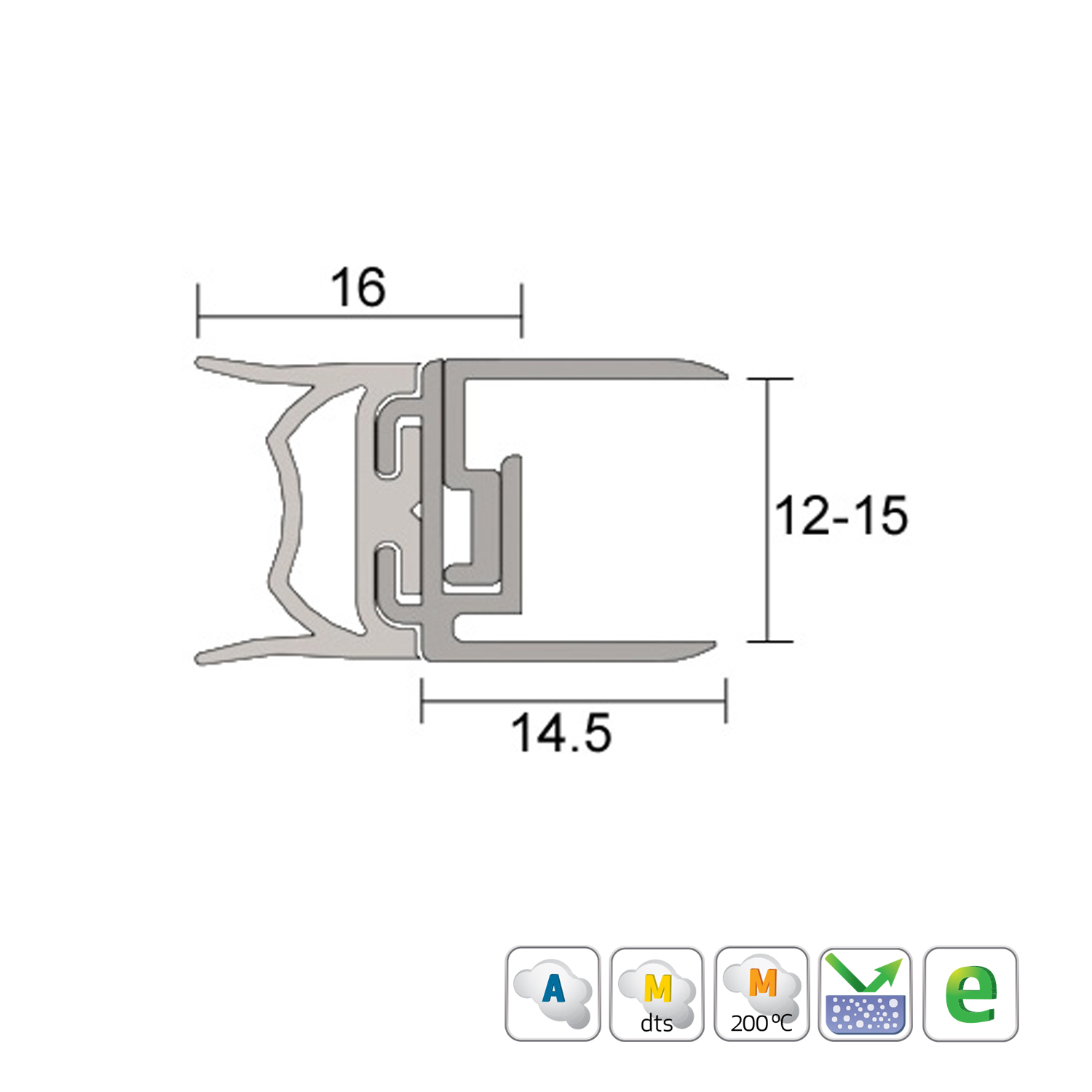

• All seals are Designed to suit 12-15mm frameless glass doors, providing ambient and medium temperature smoke containment, along with draught and dust protection.
• The high performance silicone gaskets also protect glass doors from colliding during closure.
• These seals have an easy self-adhesive application and can be used independently for various door applications

Specifications:

• Gap size: Dependent upon application
• Available Sizes: 1000mm, 1250mm, 1500mm, 1750mm, 2000mm, 2250mm, 2500mm, 2750mm, 3000mm, 3250mm, 3500mm, 3750mm, 4000mm, 4250mm, 4500mm, 4750mm and 5000mm
• Finish: Clear Anodised

Approvals:

• Conforms with BCA Specification C3.4 smoke sealing requirements
