Kilargo IS7345si Astragal Translucent Door Seal
IS7345SI1000CA

Astragal Seal are seals for frameless glass sliding doors.

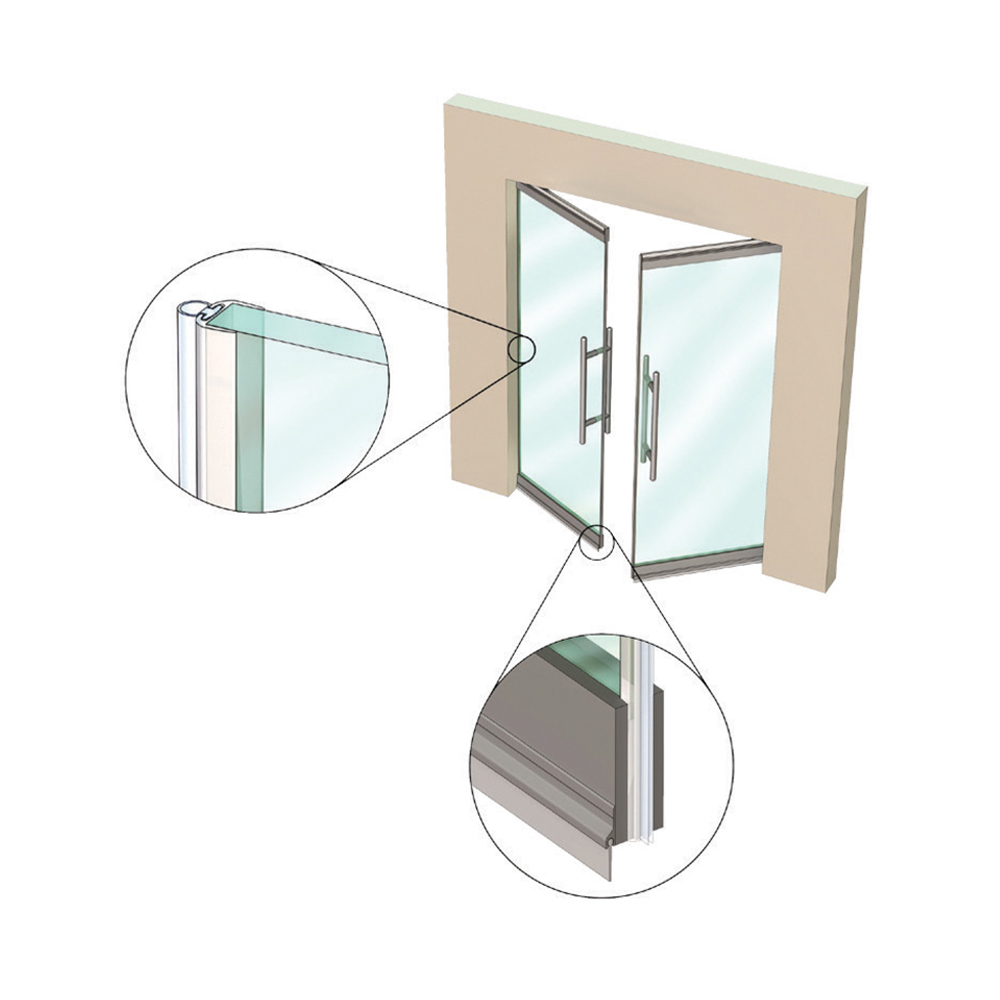

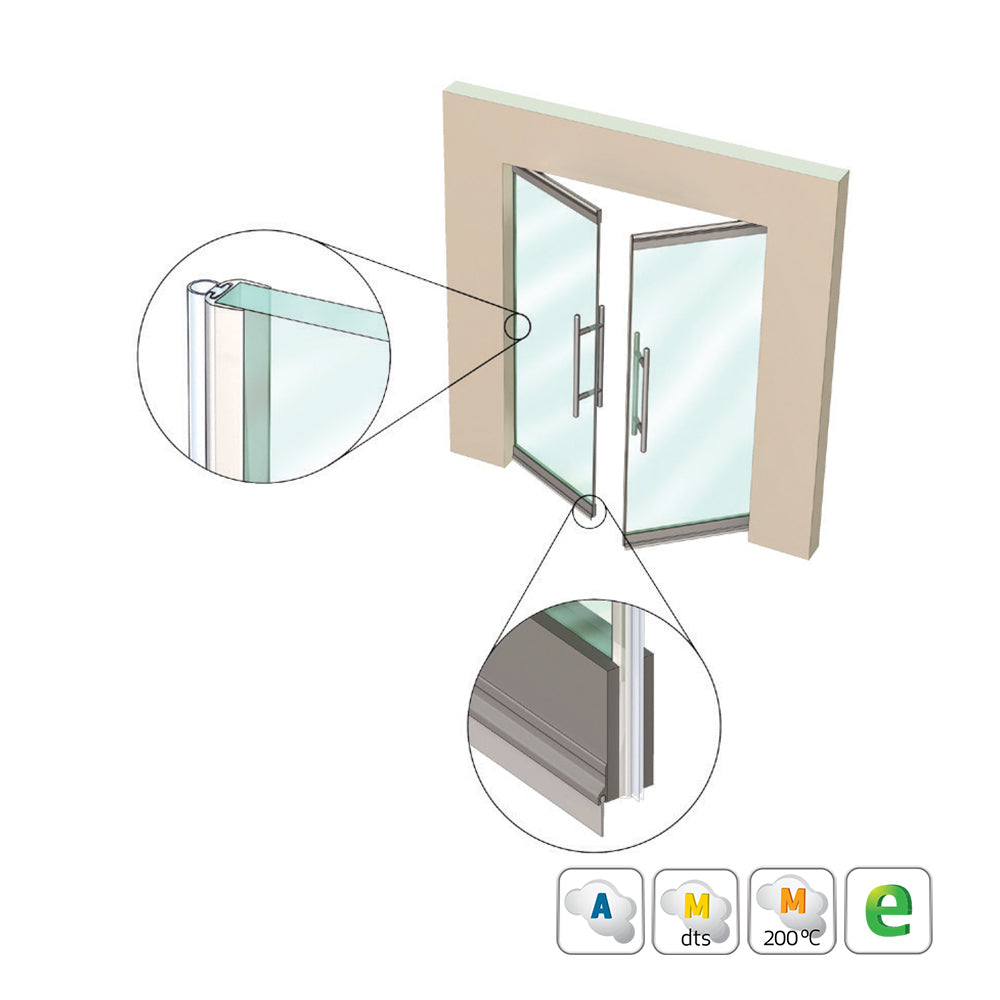

Astragal Seal Function - are applied to a pair of double doors to create a seal over the gap where the doors meet. Properly sealing a set of doors prevents infiltration of sound, light, drafts, thus creating an insulated environment. It can also be applied to contain fire and smoke in emergency situations.

• IS7340si and IS7345si suit 10mm glass

Features:

• Suits 10mm thick frameless glass doors, incorporating high temperature semi-transparent silicone gaskets
• With an easy self-adhesive application, the seals are available with a silicone flexible bubble compression seal, or a silicone flexible twin-fin wiping seal, to suit various glass door applications
• Providing ambient temperature smoke containment, along with draught and dust protection
• High performance silicone gaskets also protect glass doors from colliding during closure

Specifications:

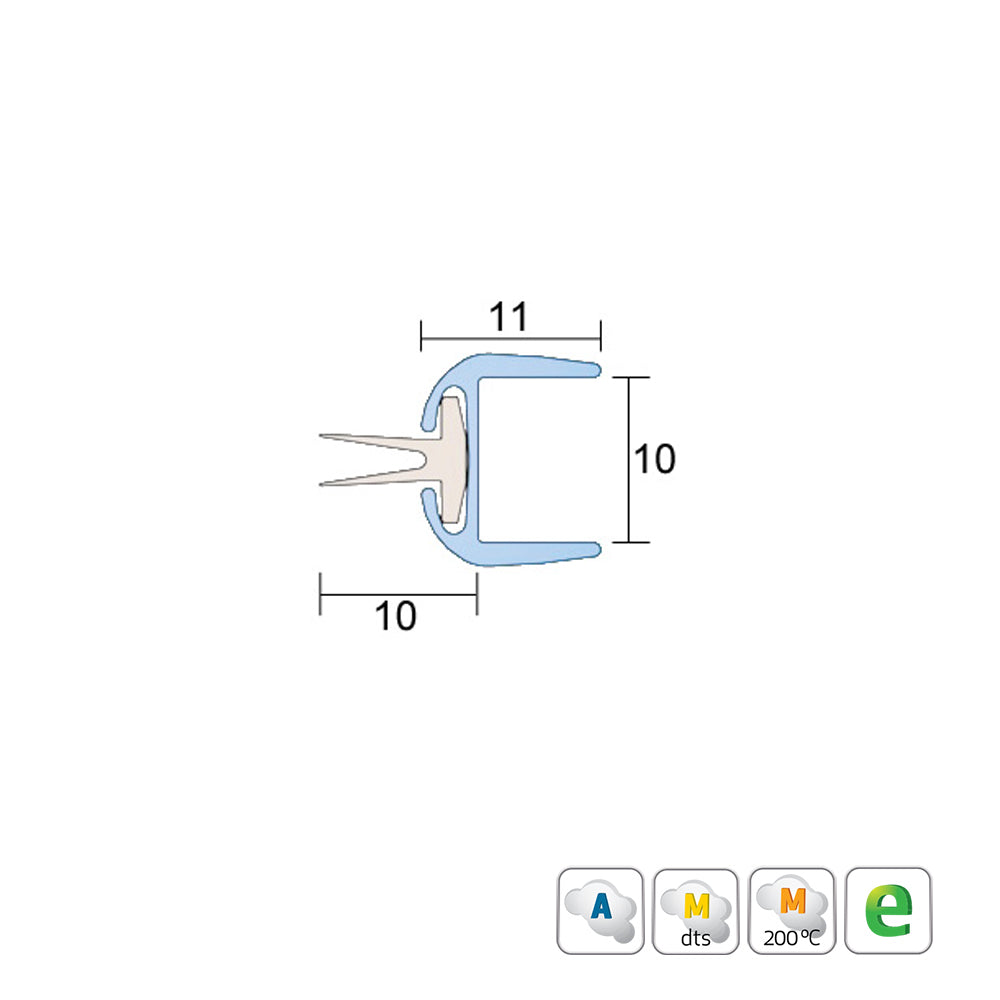

• Gap size Min. 7mm / max. 9mm (prior to installation)
• Available Sizes 1000mm, 1250mm, 1500mm, 1750mm, 2000mm, 2250mm, 2500mm, 2750mm, 3000mm, 3250mm, 3500mm, 3750mm, 4000mm, 4250mm, 4500mm, 4750mm and 5000mm
• Finish Translucent UV stabilised polycarbonate with a semi-transparent silicone bubble or twin-finned gasket

Approvals:

• Conforms with BCA Specification C3.4 smoke sealing requirements
