Kilargo IS7355si Transluscent Polycarbonate Astragal Edge Seal
IS7355SI3000CA

This is a non-stocked item which leaves the warehouse in 3-5 business days after payment is made.

Door Seal - used to close gaps around door frames (the jambs and the header). Sound, light, draught, moisture, fire, and smoke can all be significantly reduced by closing the gaps along the door frame.

Door Seal Function - the seal has a spring loaded mechanism which lifts the seal clear of the floor, in a parallel motion, as soon as the door is opened. Pressure against the door jamb on the adjustable brass strike button operates the seal automatically.

Features:

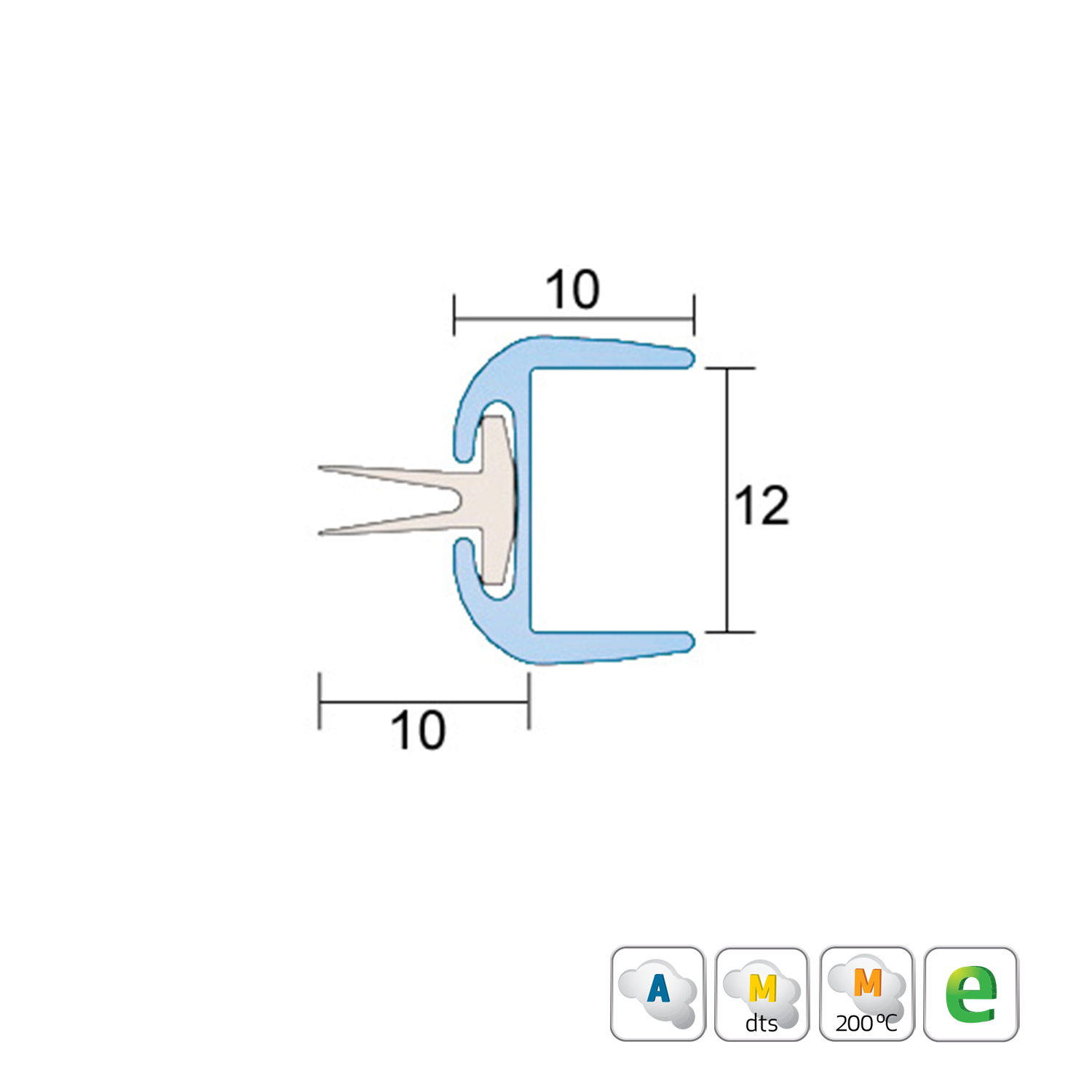

• Astragal seals suit 12mm thick frameless glass doors, incorporating high temperature semi-transparent silicone gaskets.
• Easy self-adhesive application, the seals are available with a silicone flexible bubble compression seal, or a silicone flexible twin-fin wiping seal, to suit various glass door applications.
• Seals are designed to suit 12mm frameless glass doors, providing ambient temperature smoke containment, along with draught and dust protection.
• High performance silicone gaskets also protect glass doors from colliding during closure.

Specifications:

• Gap size: Min. 7mm / max. 9mm (prior to installation)
• Size: 3000mm
• Finish: Clear Anodised

Approvals:

• Conforms with BCA Specification C3.4 smoke sealing requirement
