Kilargo IS8035si Door Bottom Seal
IS8035AMsi-1070CA

PLEASE NOTE: This item is Non-returnable. Upon placing your order, it CAN'T be cancelled or returned (unless faulty or damaged)

This is a non-stocked item which leaves the warehouse in 5-10 business days after payment is made.

Door Bottom Seal - used to close gaps around door frames (the jambs and the header). Sound, light, draught, moisture, fire, and smoke can all be significantly reduced by closing the gaps along the door frame.

Door Bottom Seal Function - the seal has a spring loaded mechanism which lifts the seal clear of the floor, in a parallel motion, as soon as the door is opened. Pressure against the door jamb on the adjustable brass strike button operates the seal automatically

Features:

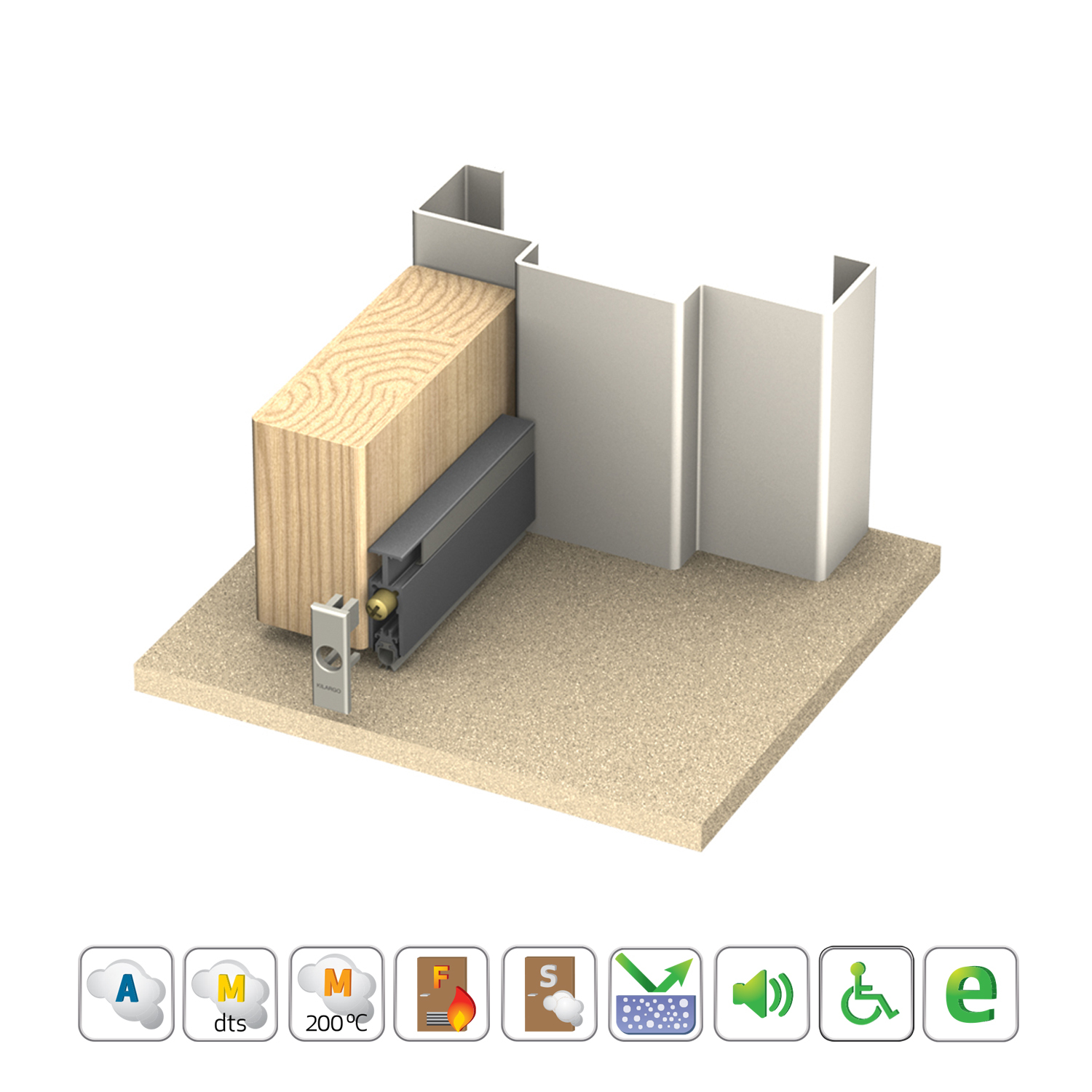

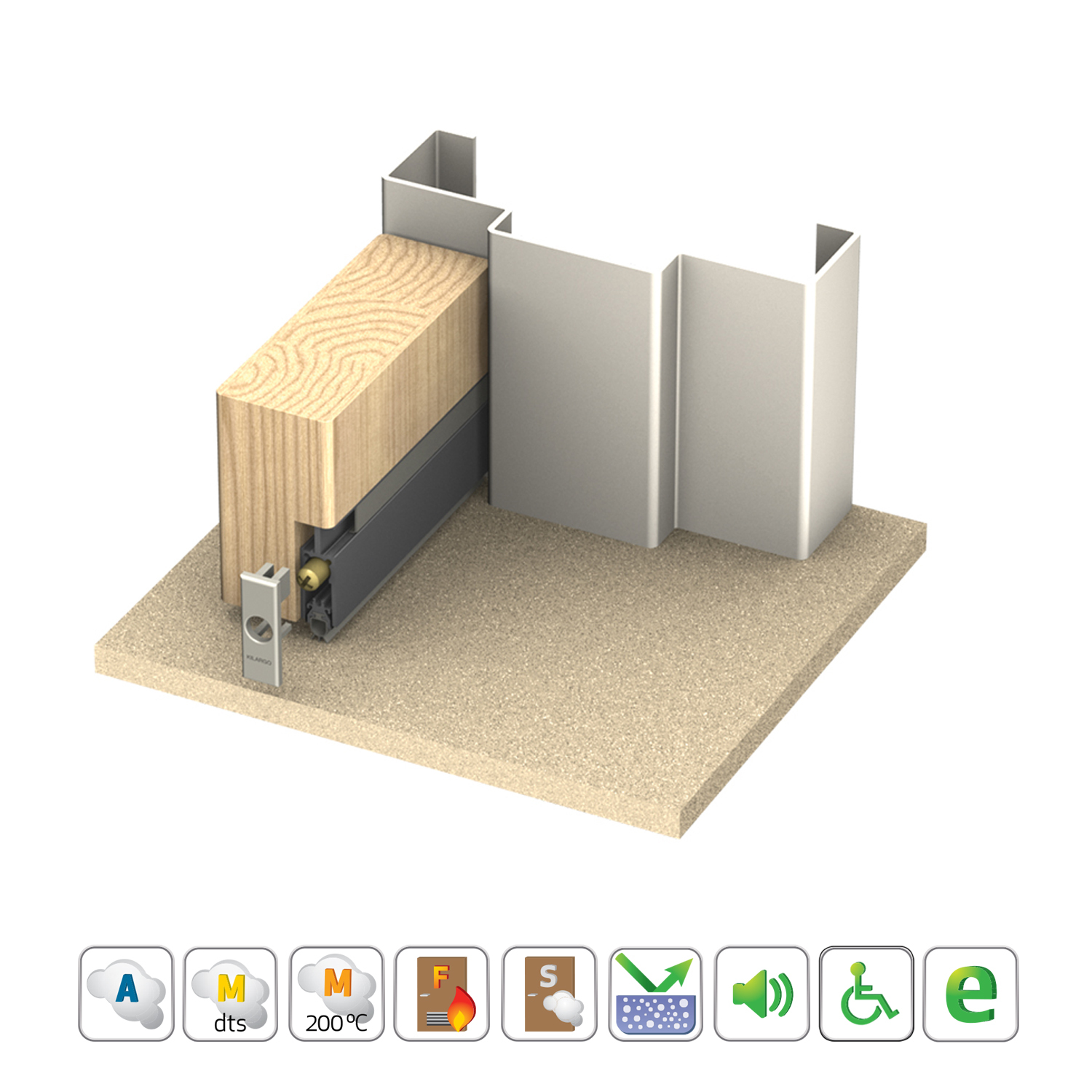

• Medium duty, automatic door bottom seal which can be semi-rebated or face-fixed to the bottom edge of single action doors.
• The seal has a spring loaded mechanism which lifts the seal clear of the floor as soon as the door is opened.
• Pressure against the door jamb on the adjustable strike button operates the seal automatically.
• This seal can be face-fixed or semi-rebated to the door
  bottom using the fixings provided.

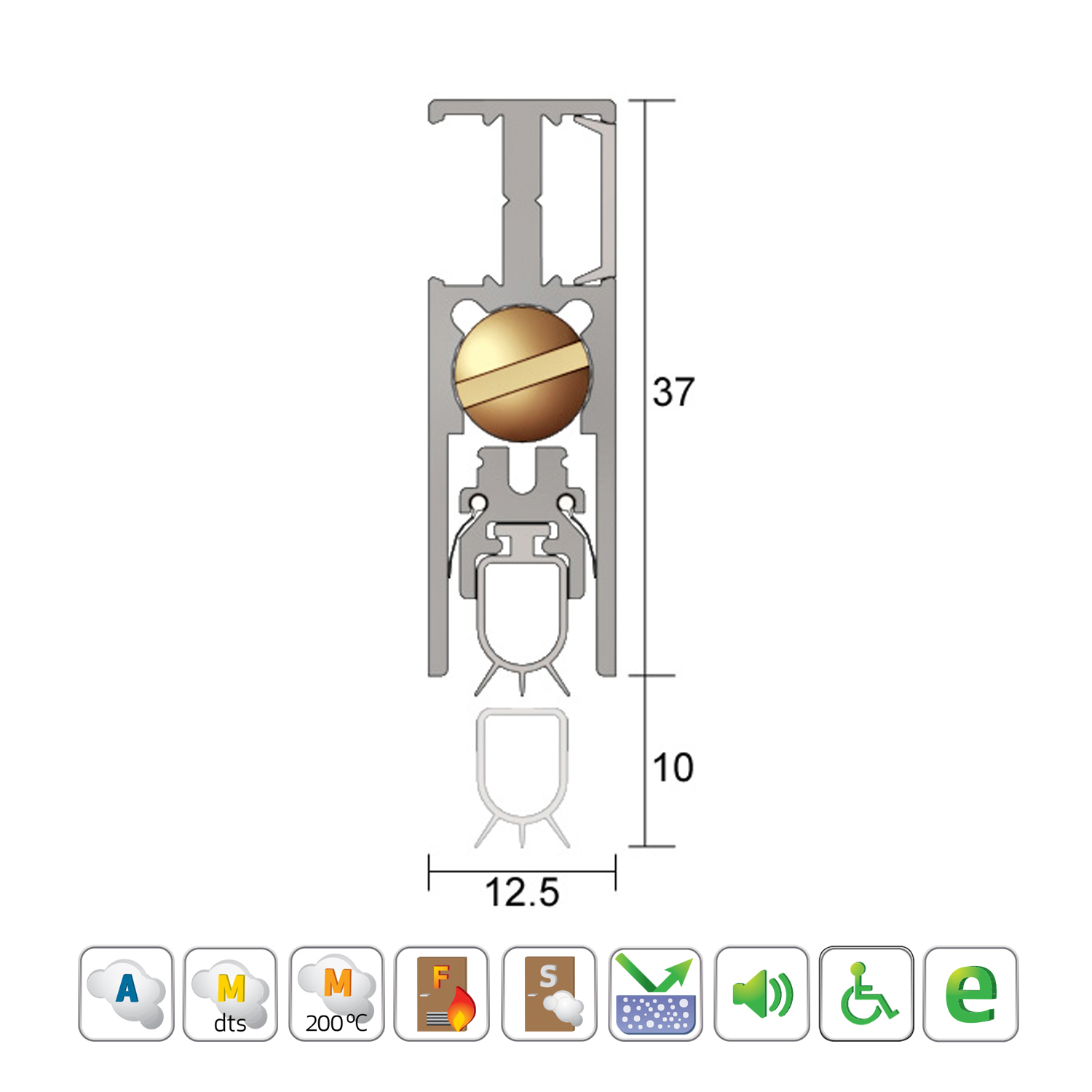

• When the seal is to be semirebated, the seal is mounted into a 37mm deep x 13mm widemachined groove. The screw line is covered by an aesthetic flexible
  PVC cover strip.
• This seal has a brass adjustment button and injection moulded, push-fit nylon end plates plus a high efficiency mechanism to assist with the closing force requirements detailed in AS1428/1 (Design for Access and Mobility).

Specifications:

• Gap Size: Min. 3mm / max. 10mm
• Size: 1070mm
• Anti Microbial: Yes
• Maximum allowable cut-back sizes: 1070mm seal cuts to 920mm
• Finish: Clear Anodised

Approvals:

• Fire tested to AS1530 Part 4 in accordance with AS1905 Part 1
• Certifications GVYI.R26629, GVWZ.R26629, GVWZ7.R26629
• Medium temperature smoke leakage approvals to AS1530 Part 7 available on proprietary door assemblies
• Conforms with BCA Specification C3.4 smoke sealing requirements
• Acoustically tested in accordance with AS1191, IS0140.3 & ISO10140-2
• Durability tests demonstrating over 1,000,000 open and close cycles
