Kilargo IS8036si Heavy Duty Door Bottom Seal
IS8036SI01220CA

This is a non-stocked item which leaves the warehouse in 3-5 business days after payment is made.

Door Bottom Seal - used to close gaps around door frames (the jambs and the header). Sound, light, draught, moisture, fire, and smoke can all be significantly reduced by closing the gaps along the door frame.

Door Bottom Seal Function - the seal has a spring loaded mechanism which lifts the seal clear of the floor, in a parallel motion, as soon as the door is opened. Pressure against the door jamb on the adjustable brass strike button operates the seal automatically.

Features:

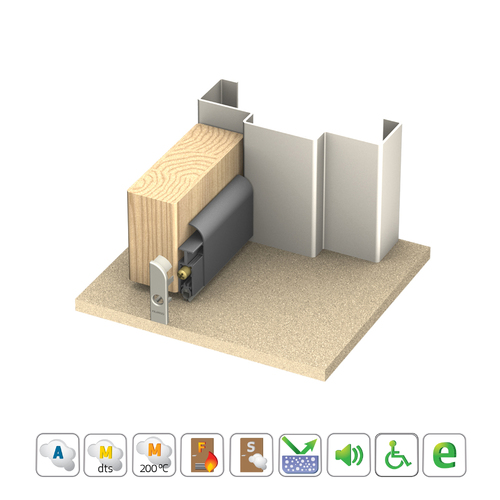

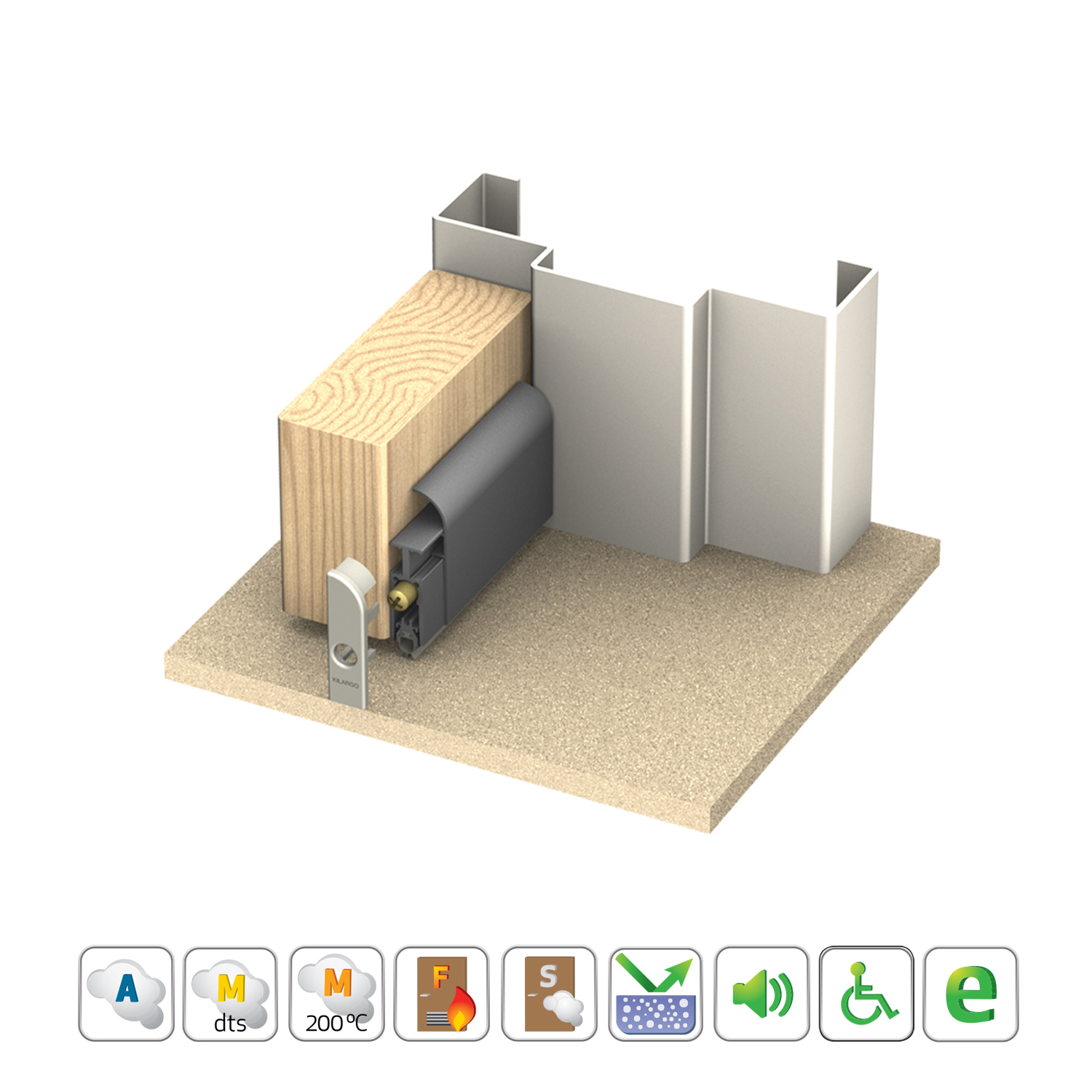

• Medium duty, automatic door bottom seal which can be face-fixed to the bottom edge of single action doors.
• The seals have a spring loaded mechanism which lifts the seal clear of the floor as soon as the door is opened.
• Pressure against the door jamb on the adjustable strike button operates the seal automatically. It has an architectural ‘curved’ cover plate to conceal fixing points and provide an aesthetic finish.
• Face-fixed to the bottom edge of single action
  doors.
• It has an architectural ‘curved’ cover plate to conceal fixing
  points and provide an aesthetic finish.
• Has a brass adjustment button and injection moulded, push-fit nylon end plates plus a high efficiency mechanism to assist with the closing force requirements detailed in AS1428/1 (Design for Access and Mobility).

Specifications:

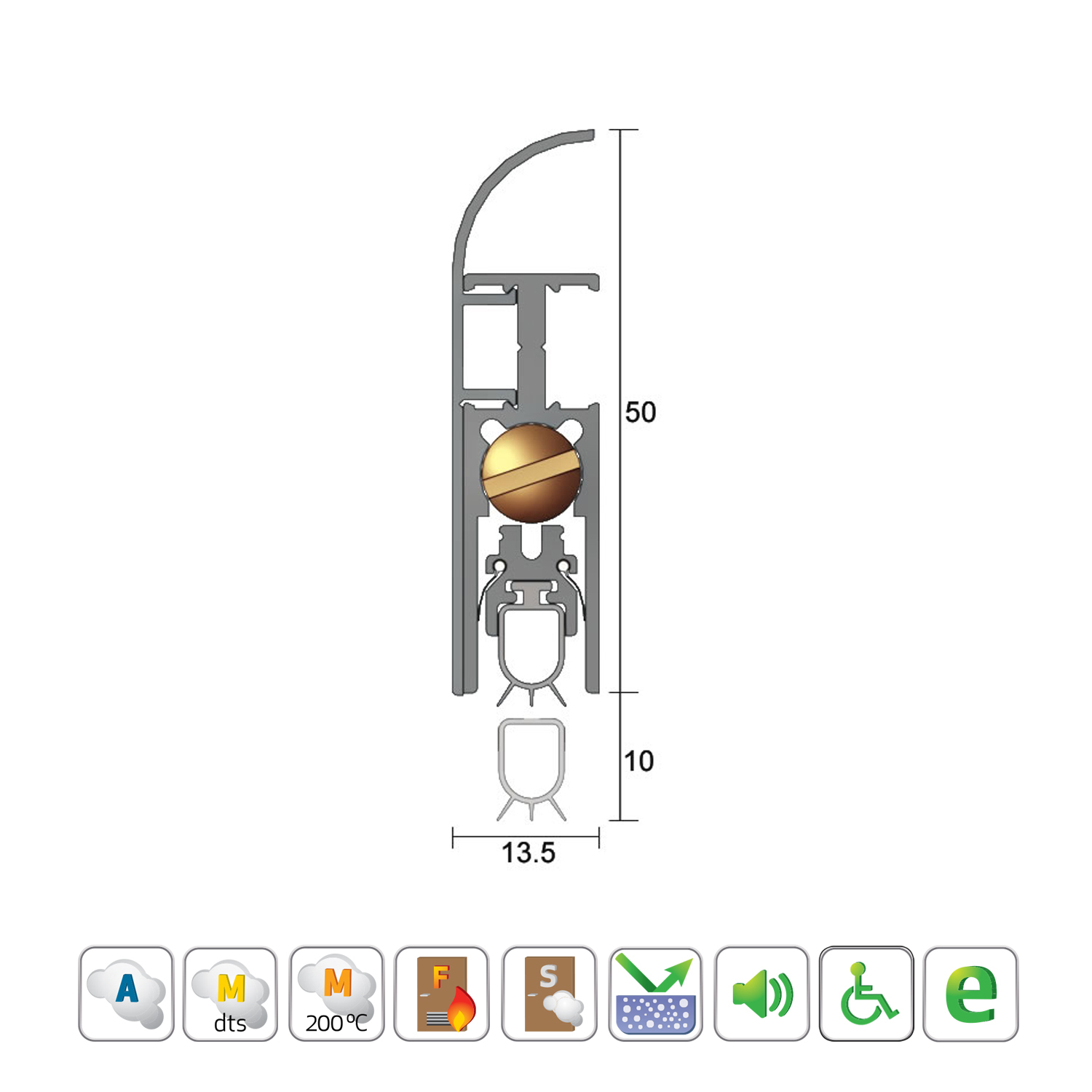

• Gap Size: Min. 3mm / max. 10mm
• Size: 1220mm
• Anti Microbial: no
• Finish: Clear Anodised

 Approvals:

• Fire tested to AS1530 Part 4 in accordance with AS1905 Part 1
• Certifications GVYI.R26629, GVWZ.R26629, GVWZ7.R26629
• Medium temperature smoke leakage approvals to AS1530 Part 7 available on proprietary door assemblies
• Conforms with BCA Specification C3.4 smoke sealing requirements
• Acoustically tested in accordance with AS1191, IS0140.3 and ISO10140-2
• Durability tests demonstrating over 1,000,000 open and close cycles
