Kilargo IS8090AMsi Antimicrobial Automatic Door Bottom Seal
IS8090AMSI0920CA

PLEASE NOTE: This item is Non-returnable. Upon placing your order, it CAN'T be cancelled or returned (unless faulty or damaged)

This is a non-stocked item which leaves the warehouse in 5-10 business days after payment is made.

Door Bottom Seal - used to close gaps around door frames (the jambs and the header). Sound, light, draught, moisture, fire, and smoke can all be significantly reduced by closing the gaps along the door frame.

Door Bottom Seal Function - the seal has a spring loaded mechanism which lifts the seal clear of the floor, in a parallel motion, as soon as the door is opened. Pressure against the door jamb on the adjustable brass strike button operates the seal automatically.

Features:

• A heavy duty, automatic door bottom seal which can be semi-rebated or facefixed to the bottom edge of single action doors
• Has a spring loaded mechanism which lifts the seal clear of the floor as soon as the door is opened
• Pressure against the door jamb on the adjustable brass strike button operates the seal automatically

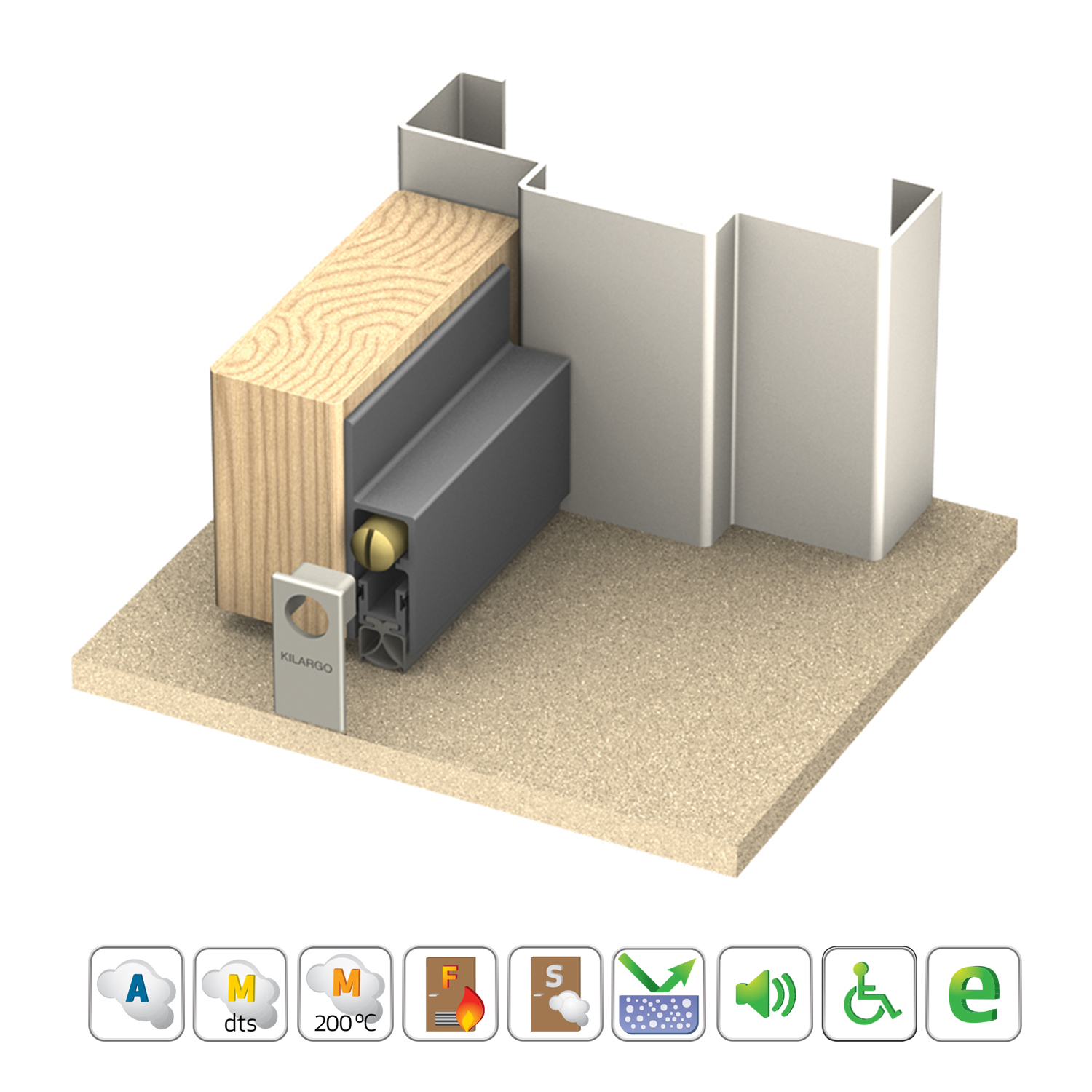

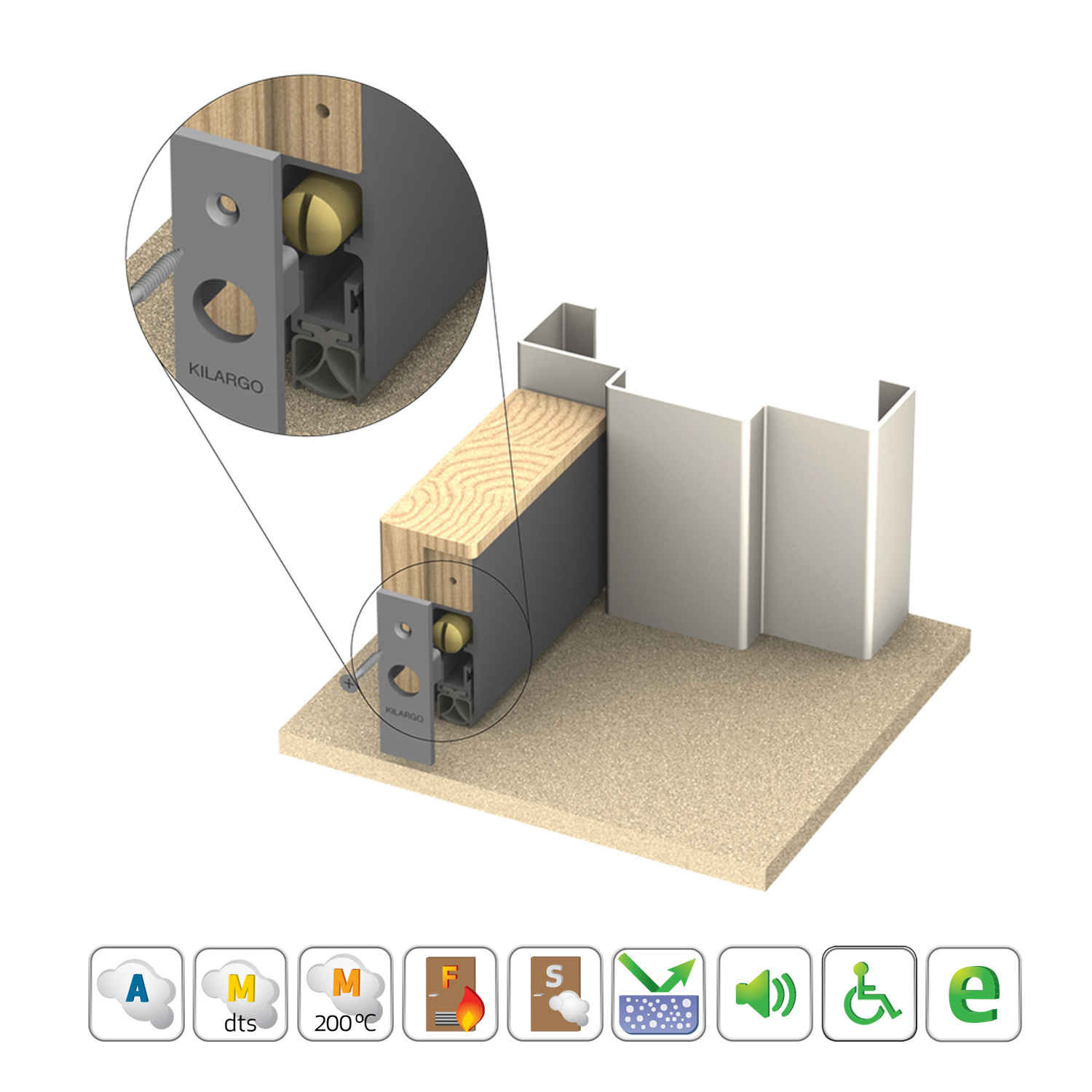

Face-fixed: The seal is fixed to the face of the door bottom using the fixing screws provided. A set of rigid push-fit nylon end plates ensure longevity of the seal mechanism.

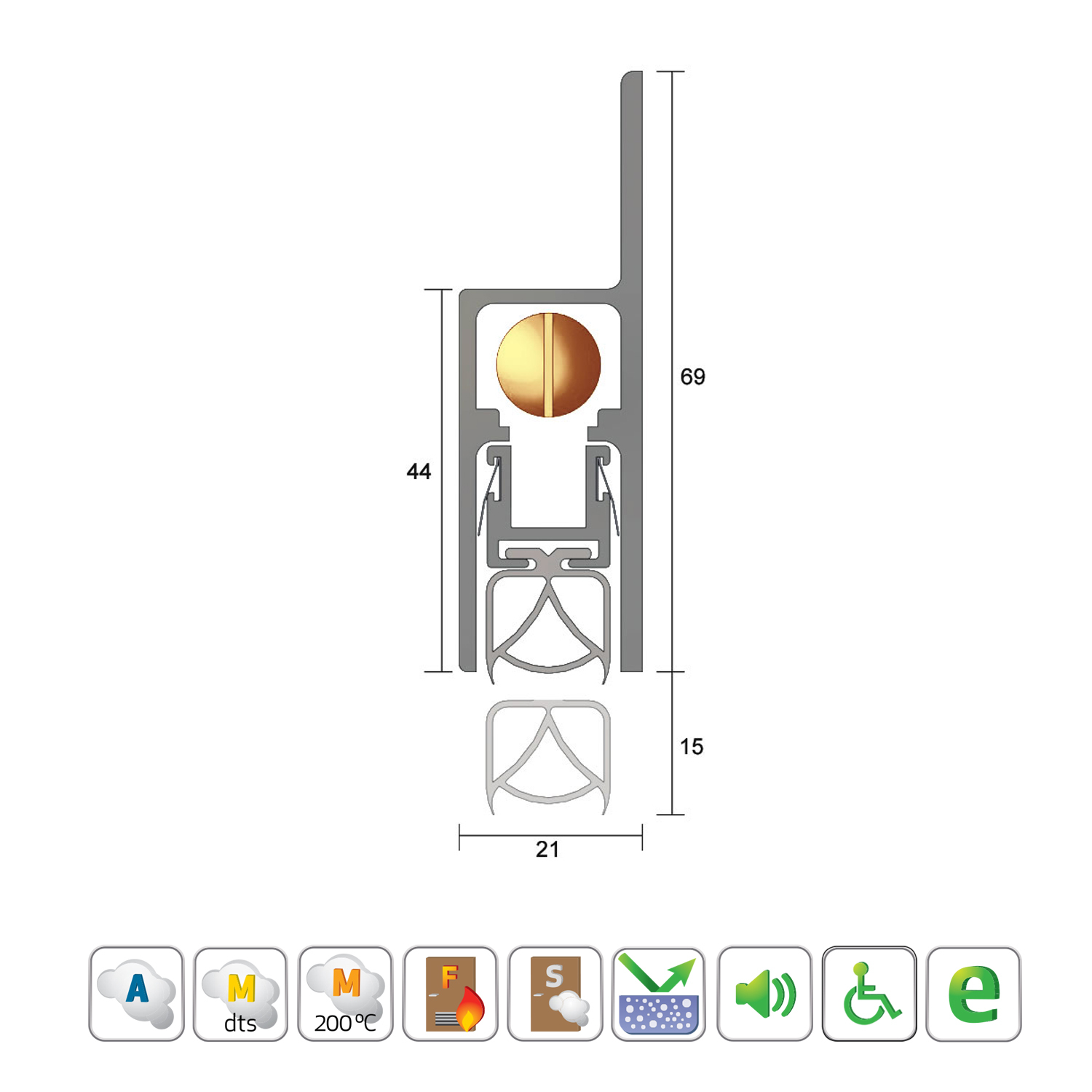

Semi-rebated: When the seal is to be semi-rebated, the seal is mounted into a stepped rebate: a 44mm deep x 21mm wide machined groove (for the bottom section), plus a 25mm deep x 3mm wide machined recess (for the top flange), on the side of the door to which the seal will be positioned. The seal can be screw-fixed into position through the flange and fitted with cast aluminium end plates.

The seal contains a high efficiency mechanism to assist with the closing force requirements detailed in AS1428/1 (Design for Access and Mobility).

Specifications:

• Gap size: Min. 3mm / max. 15mm
• Length: 920mm
• Antimicrobial: Yes
• Maximum Allowable Cut-Back Sizes: 920mm seal cuts to 610mm
• Finish: Clear Anodised

Approvals:

• Fire tested to AS1530 Part 4 in accordance with AS1905 Part 1
• UL Certifications GVYI.R26629, GVWZ.R26629, GVWZ7.R26629
• Medium temperature smoke leakage approvals to AS1530 Part 7 available on proprietary door assemblies
• Conforms with BCA Specification C3.4 smoke sealing requirements
• Acoustically tested in accordance with AS1191, IS0140.3 & ISO10140-2
• Durability tests demonstrating over 1,000,000 open and close cycles
