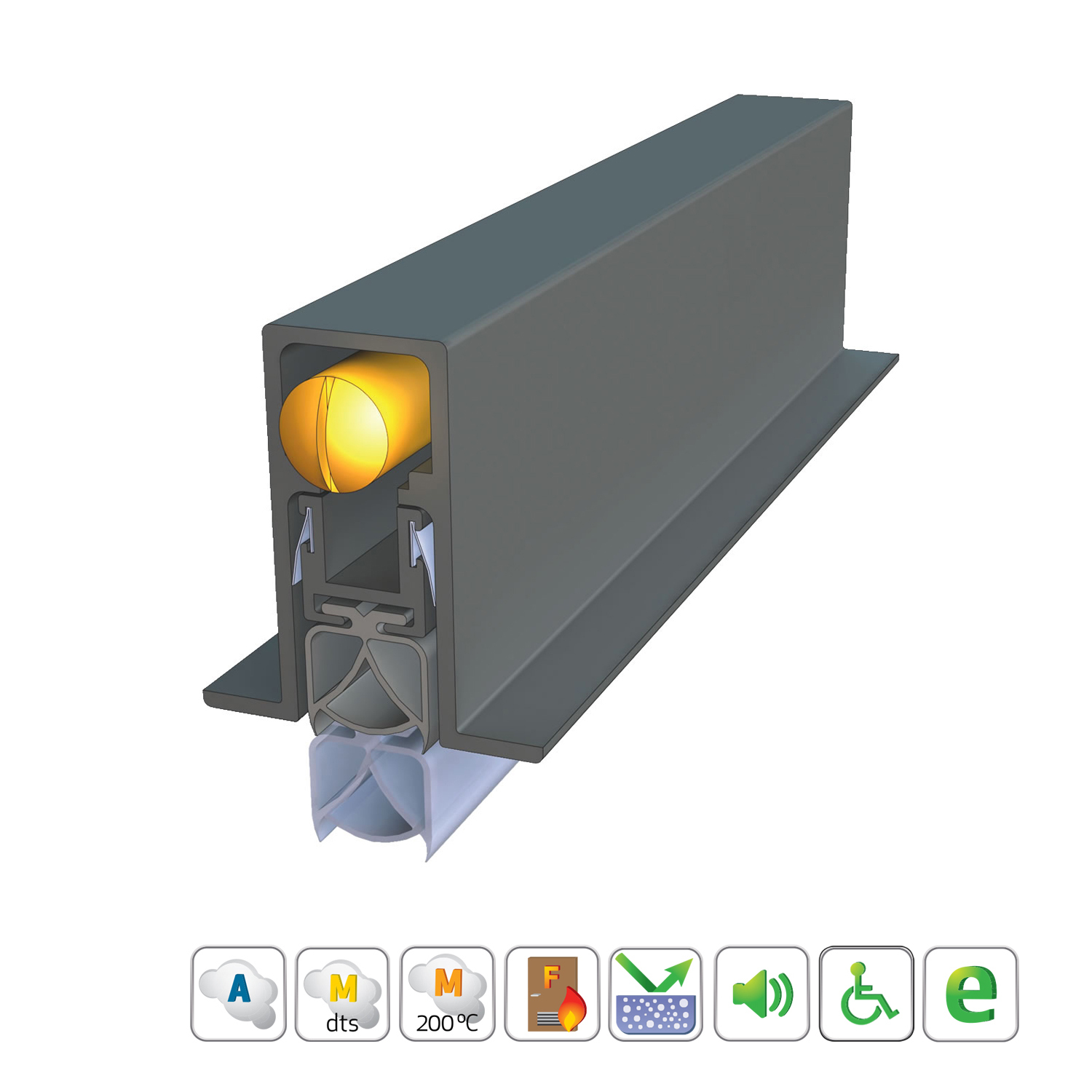

Kilargo IS8100si Antimicrobial Automatic Door Bottom Seal
IS8100AMSI01070CA

PLEASE NOTE: This item is Non-returnable. Upon placing your order, it CAN'T be cancelled or returned (unless faulty or damaged)

This is a non-stocked item which leaves the warehouse in 5-10 business days after payment is made.

Door Bottom Seal - used to close gaps around door frames (the jambs and the header). Sound, light, draught, moisture, fire, and smoke can all be significantly reduced by closing the gaps along the door frame.

Door Bottom Seal Function - the seal has a spring loaded mechanism which lifts the seal clear of the floor, in a parallel motion, as soon as the door is opened. Pressure against the door jamb on the adjustable brass strike button operates the seal automatically.

Features:

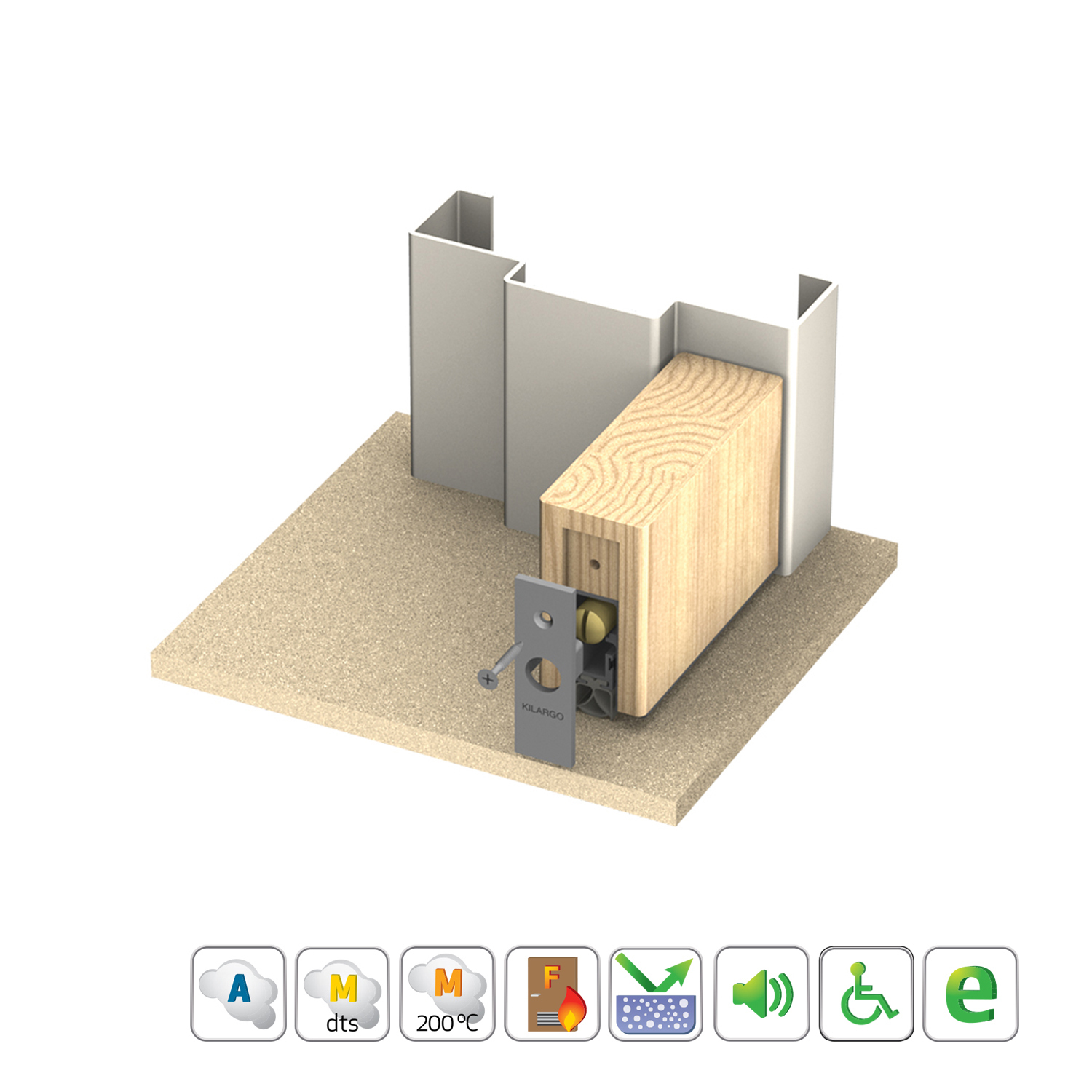

  • Automatic, automatic door bottom seal which is fully-mortised into the bottom edge of single action doors
  • Has a spring loaded mechanism which lifts the seal clear of the floor as soon as the door is opened
  • Pressure against the door jamb on the adjustable brass strike button operates the seal automatically

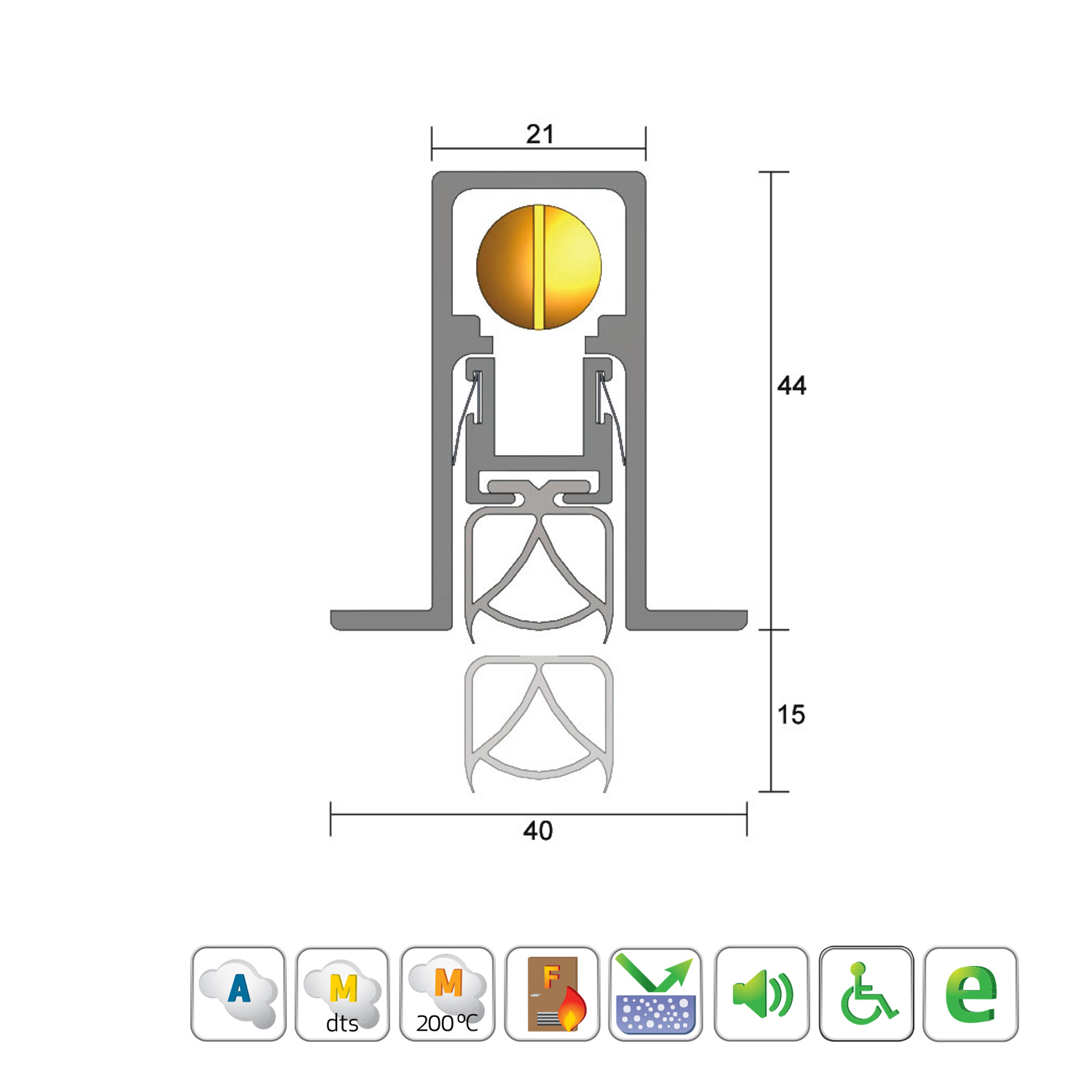

  • Mounted into a 43mm deep x 21mm wide machined groove along the underside of the door
  • Screw-fixed into position through the mounting flanges
  • Rigid nylon push-fit end plates (or screw-fixed cast aluminium end plates) ensure longevity of the seal mechanism
  • Contains a high efficiency mechanism to assist with the closing force requirements detailed in AS1428/1 (Design for Access and Mobility)

Specifications:

  • Gap size: Min. 3mm / max. 15mm
  • Length: 1070mm
  • Maximum Allowable Cut-Back Sizes: 1070mm seal cuts to 920mm
  • Antimicrobial: Yes
  • Finish: Clear Anodised

Approvals:

  • Fire tested to AS1530 Part 4 in accordance with AS1905 Part 1
  • Certifications GVYI.R26629, GVWZ.R26629, GVWZ7.R26629
  • Medium temperature smoke leakage approvals to AS1530 Part 7 available on proprietary door assemblies
  • Conforms with NCC Specification C3.4 smoke sealing requirements
  • Acoustically tested in accordance with AS1191, IS0140.3 and ISO10140-2
  • Durability tests demonstrating over 1,000,000 open and close cycles

SKU KILIS8100AMSI1070CA
Brand Kilargo
