This is a non-stocked item which leaves the warehouse in 3-5 business days after payment is made.

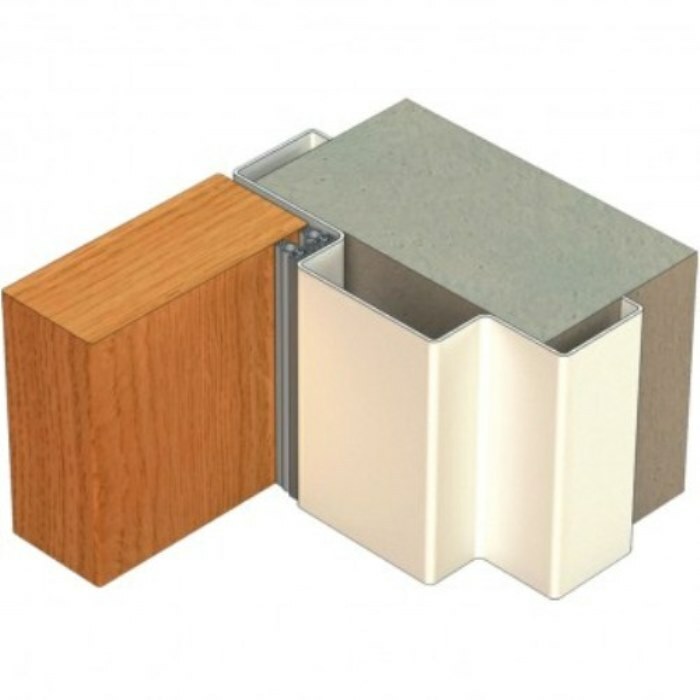

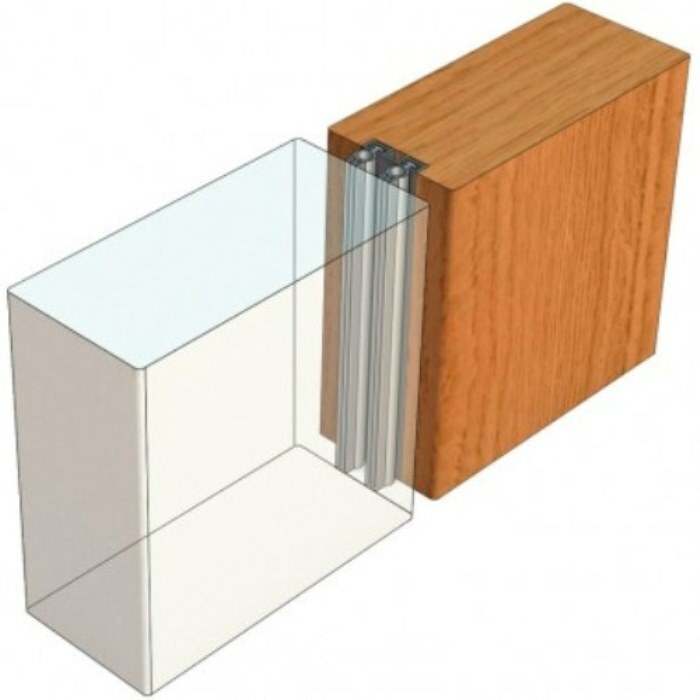

The IS7130 is an effective acoustic seal suitable for fitting to door stops of sufficient depth, around the head and jambs of single swing doors. It has two silicone compression gaske Twin Fin providing excellent acoustic and air leakage containment. It can also be rebated into meeting stiles and door bottoms as a sweep-action type seal.

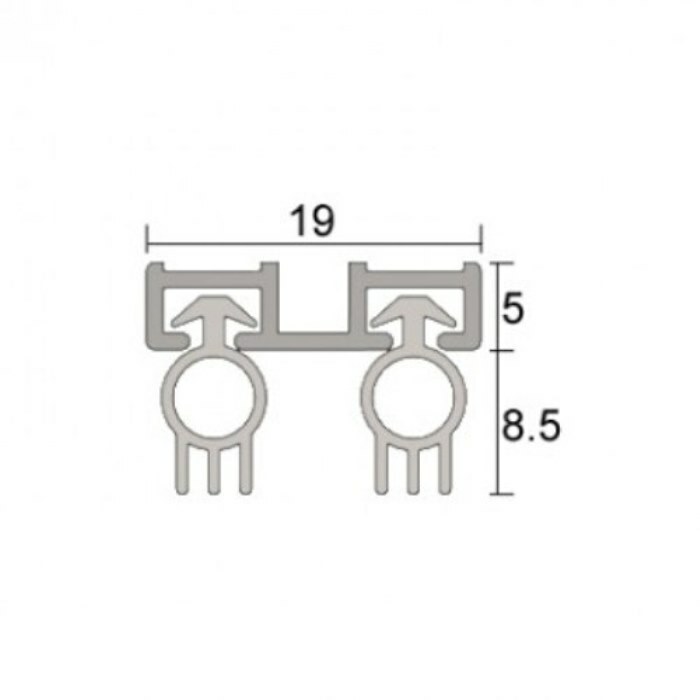

Gap size

• Min. 6mm / max. 8mm (when recessed)
• Allow 12mm to 13mm when surface-mounted

Standard lengths

• 1000mm
• 2250mm
• Also available in: 250mm increment Twin Fin from 1000mm to 5000mm

Standard colours

• Silver anodised aluminium with grey silicone gasket Twin Fin

(Black silicone gasket also available upon request)

Approval/s

• Acoustically tested in accordance with AS1191, IS0140.3 and ISO10140-2
