Kilargo KG4002 High Performance Self Adhesive Intumescent Fire Seal
KG40022400WHT

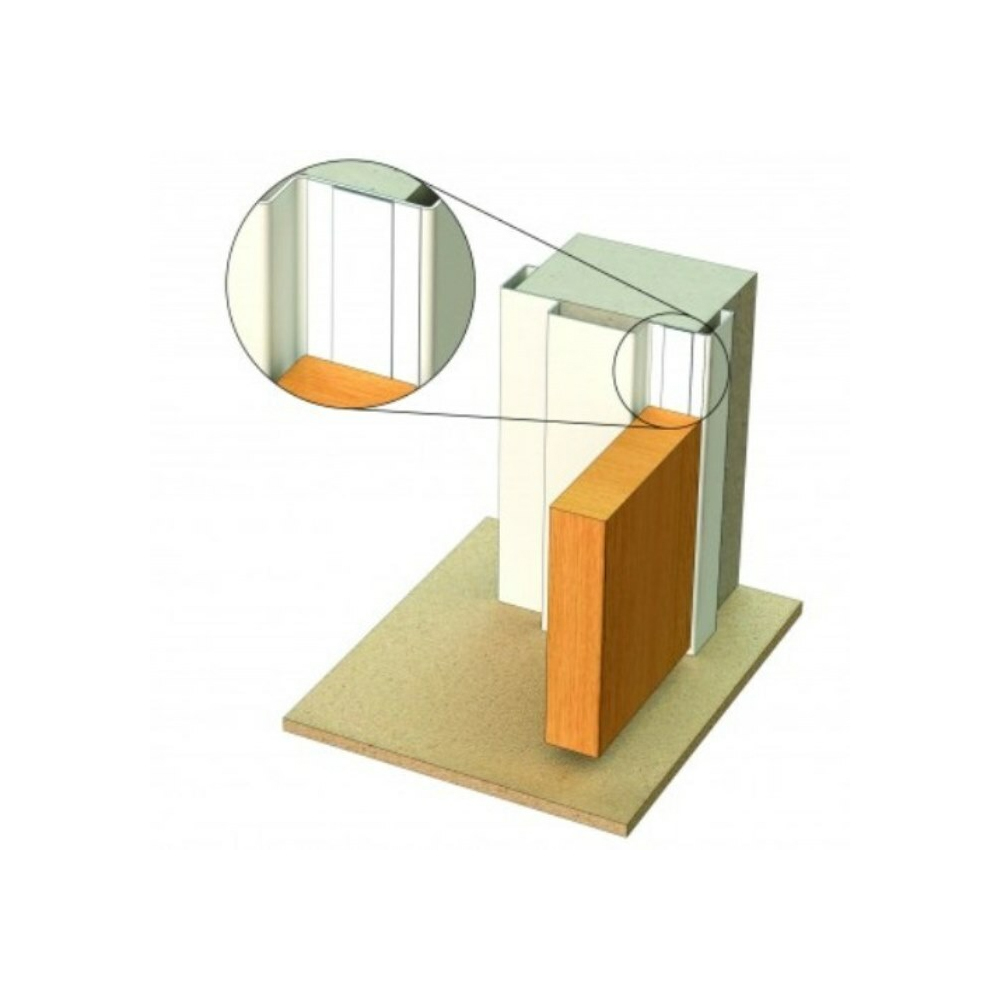

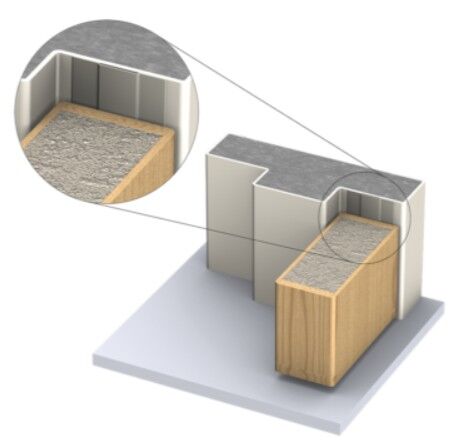

Perimeter Seal can be used to replace the door stop on both steel and timber door frames, where frames are non fire-rated.

Perimeter Seal Function - A wide selection of slimline perimeter seals for use around the head, jambs, and meeting stiles of doors. These seals are suited for use with drop seals or door bottom seals and can accommodate a wide range of gap widths and applications.

Features:

• Can provide up to 2 hours fire resistance on proprietary fire doors.
• Non compliant fire doors can be salvaged.
• Cost-effective solution.
• Easy retro-fit installation.
• Ideal for fire engineered solutions where extra protection is necessary for life safety.

Specifications:

• Application: Used to upgrade existing fire doors with up to and including 6mm perimeter gaps.
• Material: Consists of a flame retardant PVC top hat section, encapsulating a high performance intumescent material and two rows of aggressive selfadhesive tape.
• Gap Size: Up to and including 6mm perimeter gaps.
• Dimensions: 38mm x 1.6mm
• Length: 2400mm
• Fixing: The KG4002 intumescent seal is simply applied to the top and sides of the door frame with two rows of aggressive self-adhesive tape. No screw fixing required.
• Finish: White

Approval/s:

• Fire tested to AS/1530 Part 4 for up to 2 hours on proprietary fire door assemblies in accordance with AS1905 Part 1
