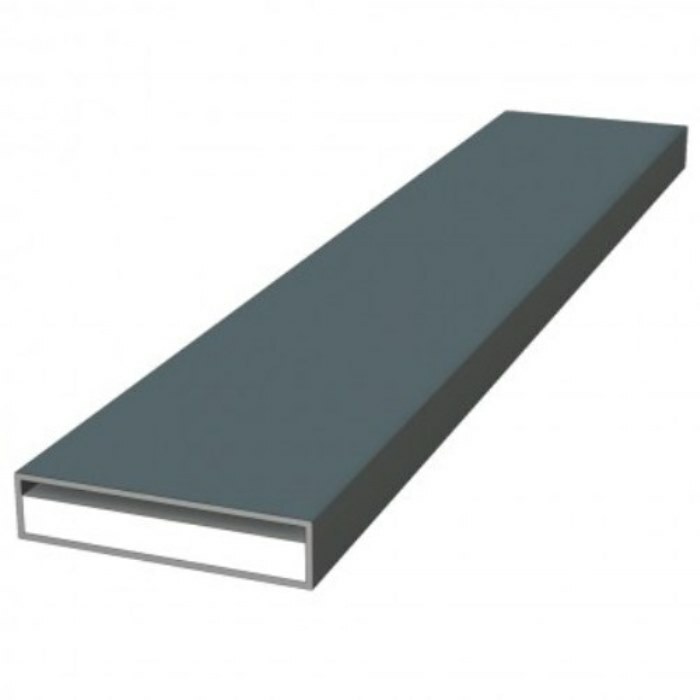

KP Series intumescent fire and combined fire & smoke seal.

Application

Incorporated into proprietary fire door and life safety door assemblies to provide resistance against fully developed fires where hot flames, gases and smoke are at extreme temperatures.

Key Features

• Utilised in proprietary aluminium bullnose meeting stile sections.
• Decorative and protective PVC outer casing. SS version has offset brush pile incorporated into profile to help provide resistance to smoke.
• Ideal for fire engineering solutions where fire (or fire & smoke) protection is necessary.

Use With

Used in conjunction with other Kilargo intumescent perimeter seals and door bottom seals, as tested on typical proprietary fire doors.

Materials

Kilargo high performance sodium silicate based intumescent core encapsulated in a rigid flame retardant PVC outer casing, complete with aggressive self-adhesive tape backing.

Gap Size

Minimum 1mm Maximum 3mm
(Dependent on seal type and application)

This product si Twin Fin flush with the edge of the door leaf or door frame edge.

Sizes

Standard lengths 2100mm, 2400mm, 3000mm

Finish

Silver

Fixing

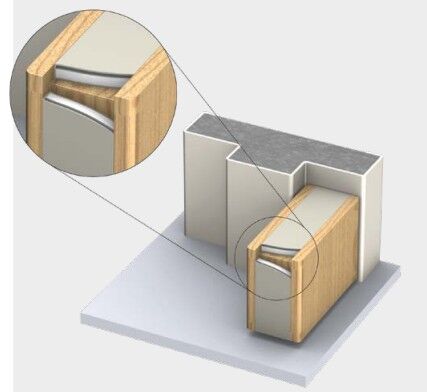

The product fi Twin Fin into a groove made in the edge of the door leaf, or door frame and is secured using the self-adhesive tape backing.

Approval/s

• Fire tested to AS1530 Part 4 for up to 2 hours on proprietary fire door assemblies in accordance with AS1905 Part 1
