Kilargo Medium Duty Antimicrobial Concealed Automatic Door Bottom Seal
IS8010AMsi-1070CA

PLEASE NOTE: This item is Non-returnable. Upon placing your order, it CAN'T be cancelled or returned (unless faulty or damaged)

This is a non-stocked item which leaves the warehouse in 5-10 business days after payment is made.

Door Bottom Seal - used to close gaps around door frames (the jambs and the header). Sound, light, draught, moisture, fire, and smoke can all be significantly reduced by closing the gaps along the door frame.

Door Bottom Seal Function - the seal has a spring loaded mechanism which lifts the seal clear of the floor, in a parallel motion, as soon as the door is opened. Pressure against the door jamb on the adjustable brass strike button operates the seal automatically.

Features:

• Medium duty, concealed automatic door bottom seal which is mortised into the bottom edge of single action doors
• It operates automatically by a spring loaded mechanism which lifts the seal clear of the floor as soon as the door is opened.

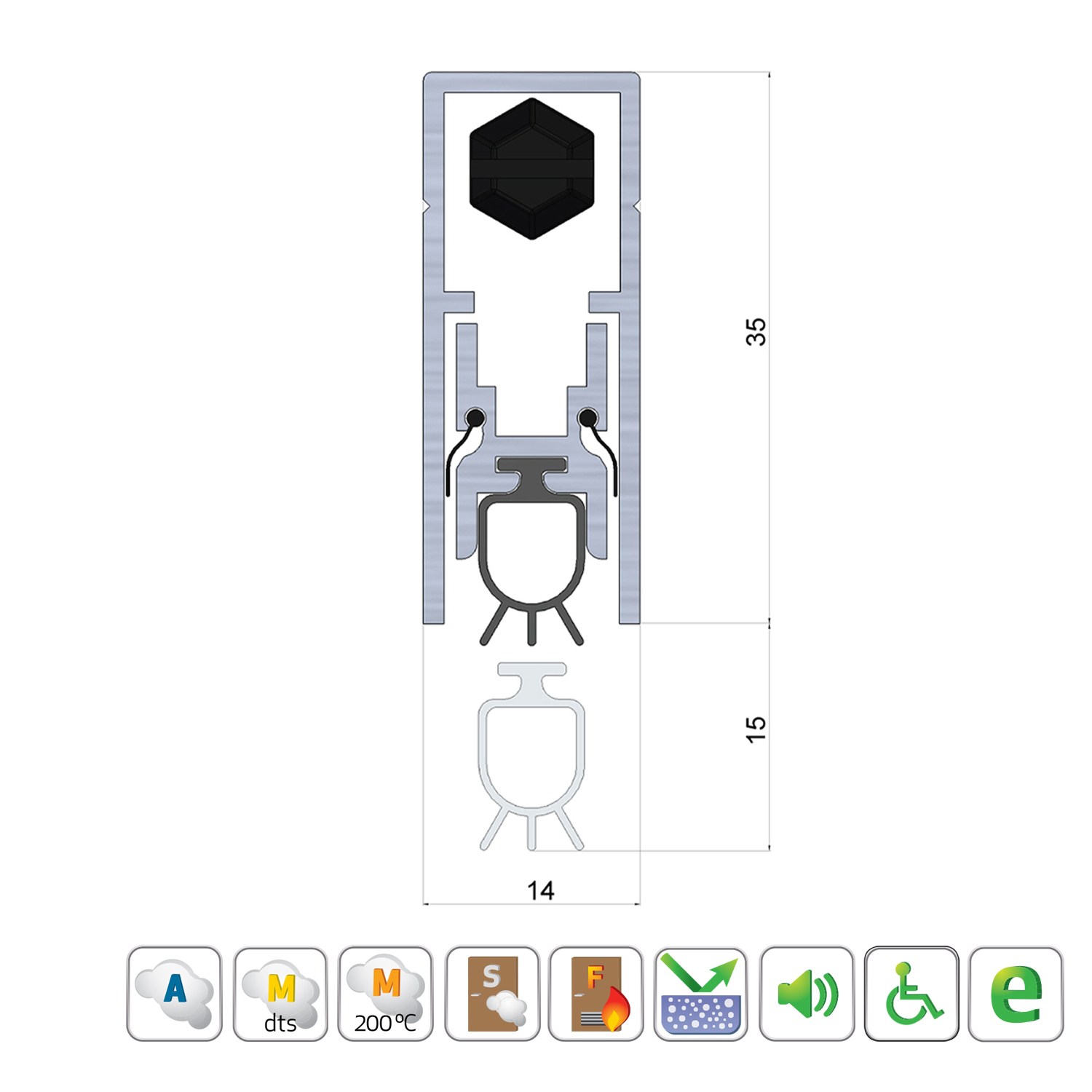

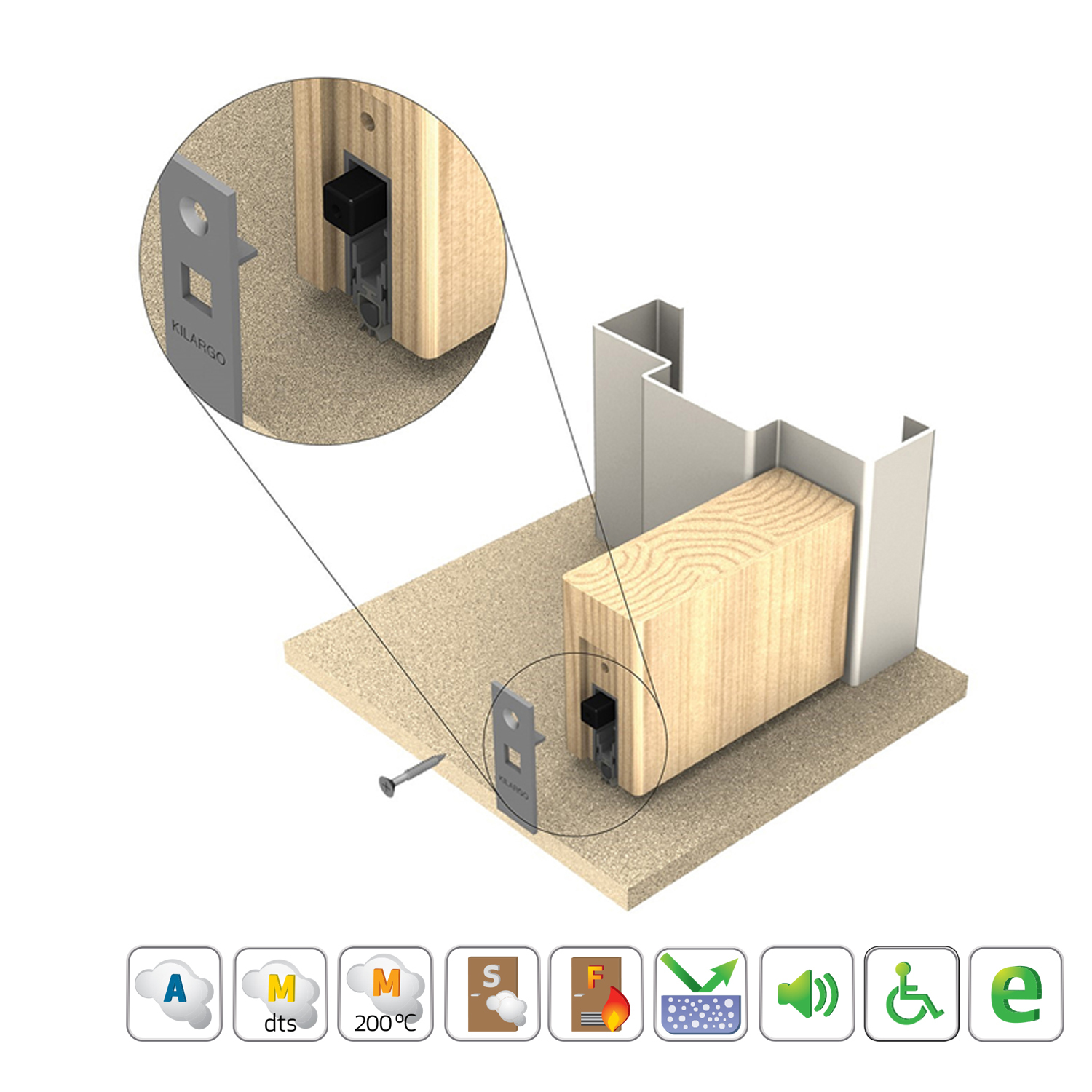

• Mounted into a 35mm deep x 15mm wide machined groove, the seal is screw fixed back into the door stiles via stainless steel end plates, holding the seal in place
• Operates automatically by pressure against the door jamb on its adjustable strike button
• Contains a high efficiency mechanism to assist with the closing force requirements detailed in AS1428/1 (Design for Access and Mobility)

Specifications:

• Gap size: 3mm (minimum) to 15mm (maximum)
• Length: 1070mm
• Antimicrobial: Yes
• Maximum Allowable Cut-Back Sizes: 1070mm seal cuts to 920mm
• Finish: Clear Anodised

Approvals:

• Fire tested to AS1530 Part 4 in accordance with AS1905 Part 1
• Certifications GVYI.R26629, GVWZ.R26629, GVWZ7.R26629
• Medium temperature smoke leakage approvals to AS1530 Part 7
• Compliant with AS6905 on proprietary door assemblies
• Conforms with BCA Specification C3.4 smoke sealing requirements
• Acoustically tested in accordance with AS1191, IS0140.3 and ISO10140-2
• Durability tests demonstrating over 1,000,000 open and close cycles

Note: Radiused stainless steel end plates also available upon request.

Antimicrobial Architectural Seals

• The threat of bacterial infection exists in all environments, but particularly in ‘high traffic’ commercial buildings. Dangerous bacteria live on all common surfaces, including doors, door hardware and door seals. These can be easily spread by simple human contact.
• To assist in suppressing the growth & spread of these bacteria, Kilargo has incorporated antimicrobial technology into the manufacture of its range of silicone door seals. Our innovative range of antimicrobial silicone gaskets provide outstanding performance with unbeatable hygiene, eliminating up to 99.99% of bacteria.
• Manufactured with in-built SteriTouch® protection, they are designed for ‘clean room’ environments and buildings that demand superior infection control, including:
  • hospitals, medical centres and nursing homes
  • laboratories and testing facilities
  • childcare centres and schools
  • food-handling areas

SteriTouch®

Like all Kilargo products, our SteriTouch® range is professionally manufactured to exacting standards - providing exceptional solutions for containing sound, limiting the spread of smoke, improving energy efficiency and preventing weather infiltration. Along with incredible bacteria resistance, they’re the perfect choice for the most hygienic buildings.

What is SteriTouch®?

• SteriTouch® additives use the proven, natural sterilising properties of silver to reduce the growth of harmful bacteria, mould and fungi by up to 99.99%. In fact, SteriTouch® provides protection against a wide range of pathogens, and is particularly effective against illnesscausing bacteria such as E.Coli, Salmonella and MRSA.
• A trusted and established brand, SteriTouch® is safe for even the most sensitive applications and is backed by independent testing and continual assessment. In line with Kilargo’s ‘green’ commitment, SteriTouch® additives do not leach and have no environmental impact.
• Best of all, the antibacterial qualities of silver are constantly active and enduring - bringing the peace-ofmind and lasting protection you need.
