Kilargo Concealed Automatic Door Bottom Seal
IS8011si-KG

Door Bottom Seal - used to close gaps around door frames (the jambs and the header). Sound, light, draught, moisture, fire, and smoke can all be significantly reduced by closing the gaps along the door frame.

Door Bottom Seal Function - the seal has a spring loaded mechanism which lifts the seal clear of the floor, in a parallel motion, as soon as the door is opened. Pressure against the door jamb on the adjustable brass strike button operates the seal automatically.

Features:

• A medium duty, concealed automatic door bottom seal which is mortised into the bottom edge of single action doors

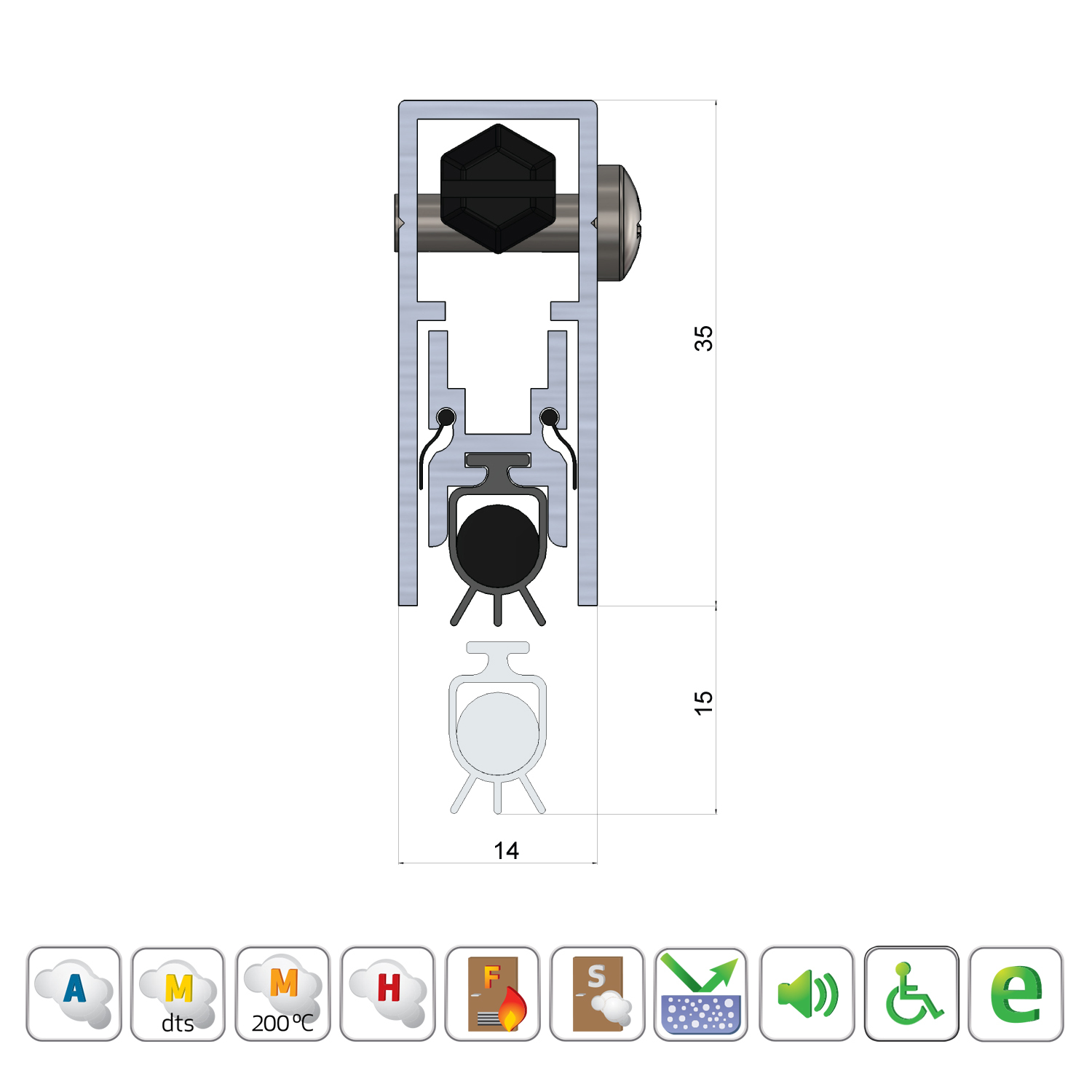

• It operates automatically by a spring loaded mechanism which lifts the seal Mounted into a 35mm deep x 15mm wide machined groove, the
  plates, holding the seal in place. The seal operates automatically by pressure against the door jamb on its adjustable strike button
• Closing force requirements detailed in AS1428/1 (Design for Access and Mobility)

Specifications:

• Gap Size:  3mm (minimum) to 15mm (maximum)
• Available Size:
  • 600mm
  • 820mm
  • 920mm
  • 1070mm
  • 1220mm
• Finish: Clear Anodised

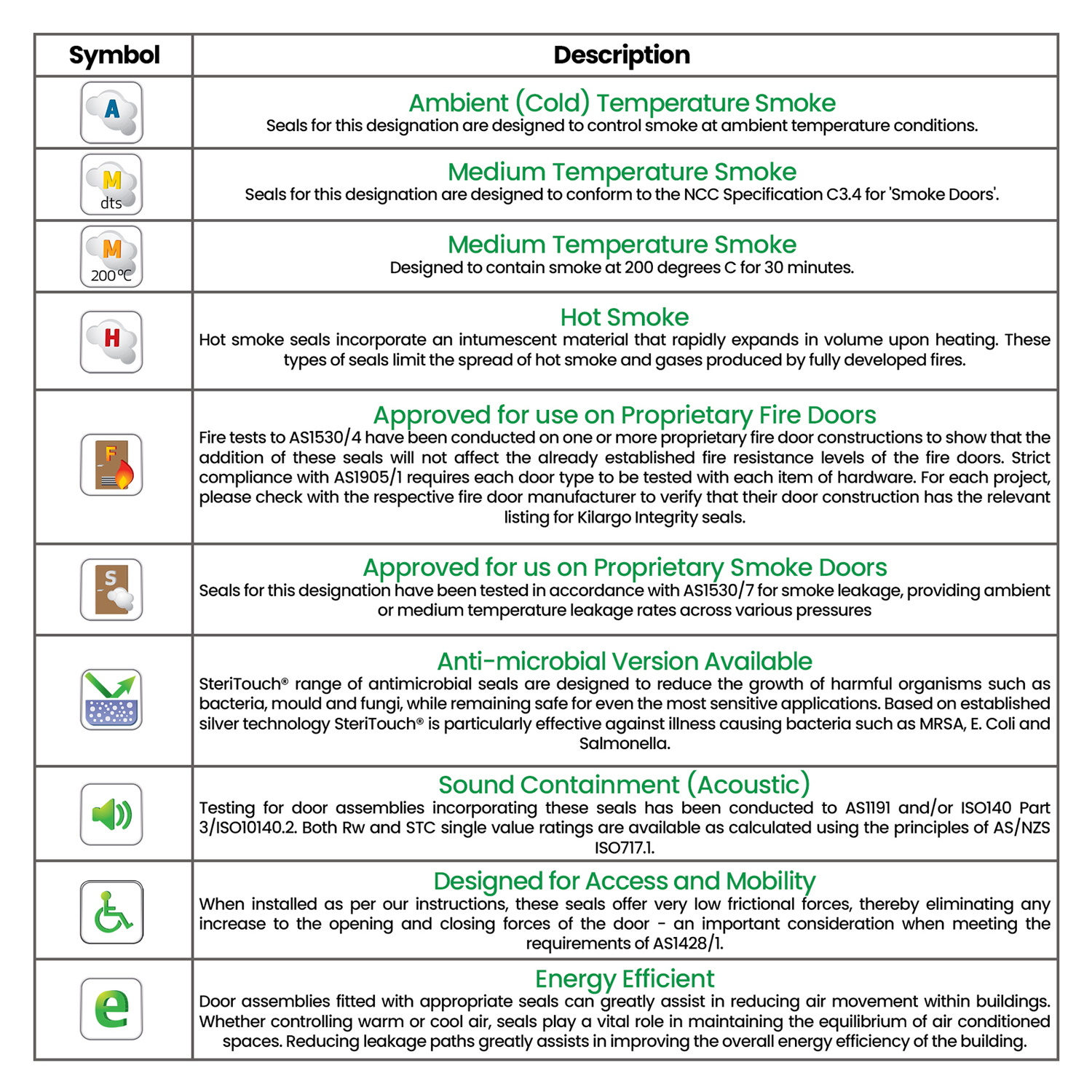

Ratings/Approvals:

• Fire tested to AS1530 Part 4 in accordance with AS1905 Part 1
• Medium temperature smoke leakage approvals to AS1530 Part 7, compliant with AS6905 on proprietary door assemblies
• Acoustically tested in accordance with AS1191, IS0140.3 and ISO10140-2
• Durability tests demonstrating over 1,000,000 open and close cycles

Note: Radiused stainless steel end plates also available upon request
