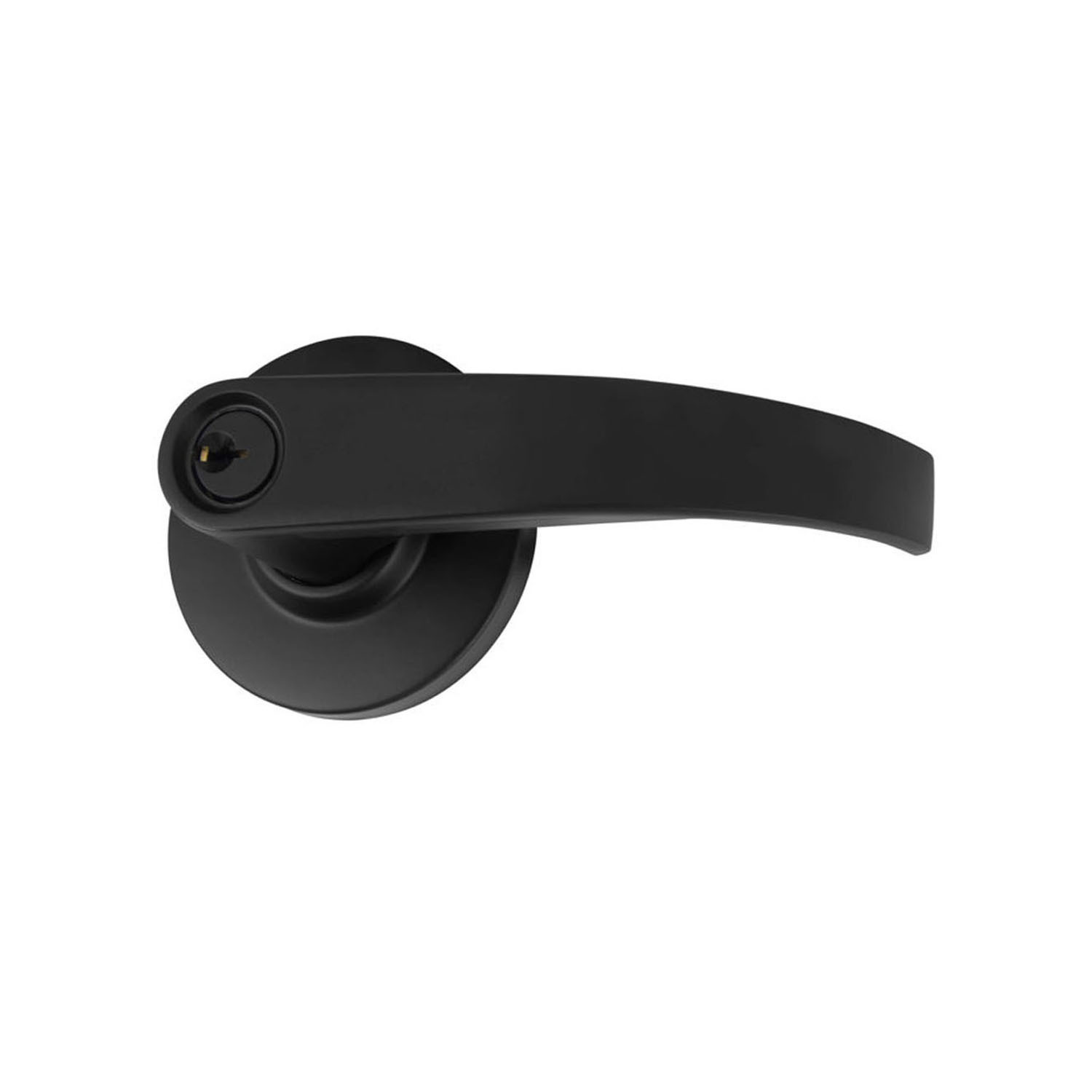

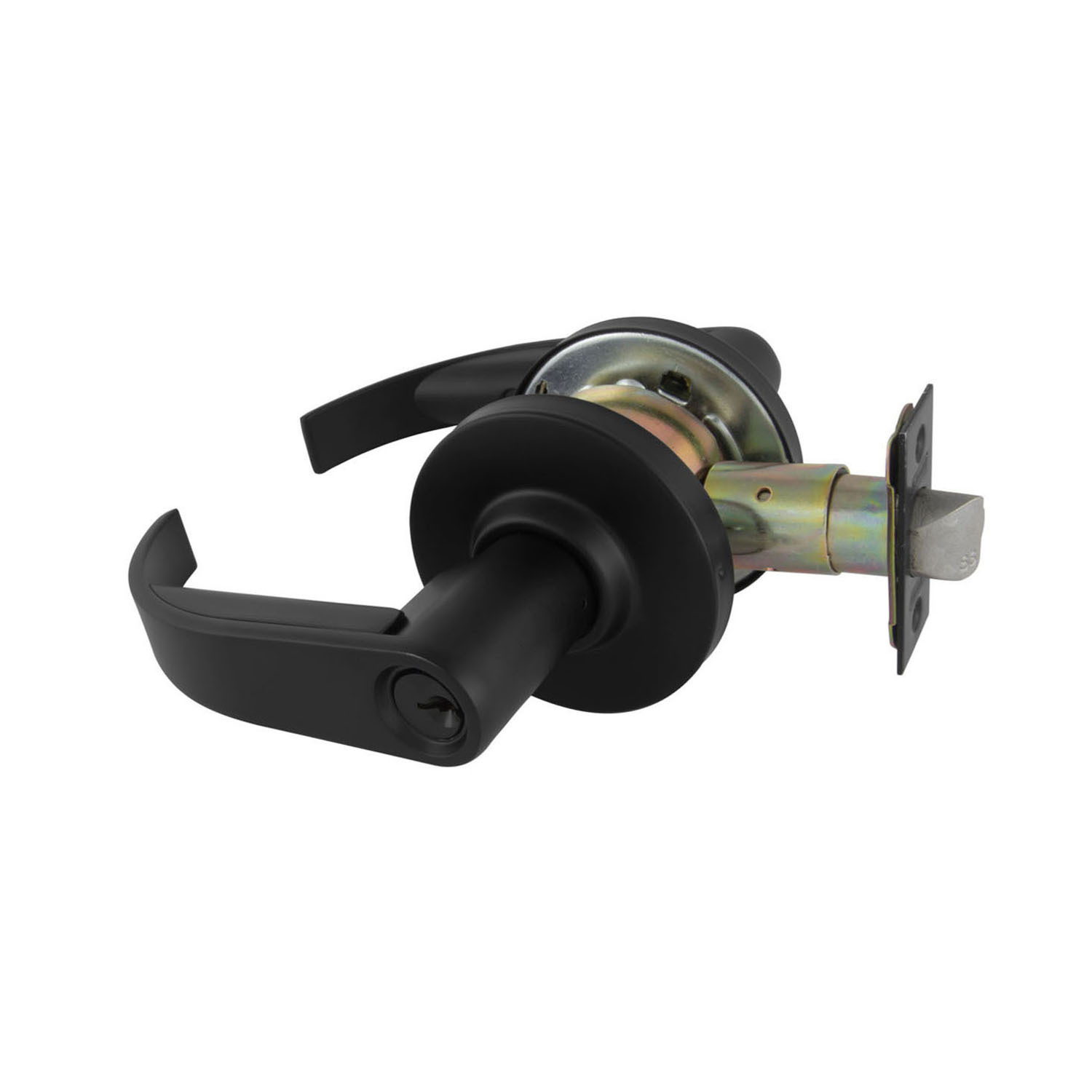

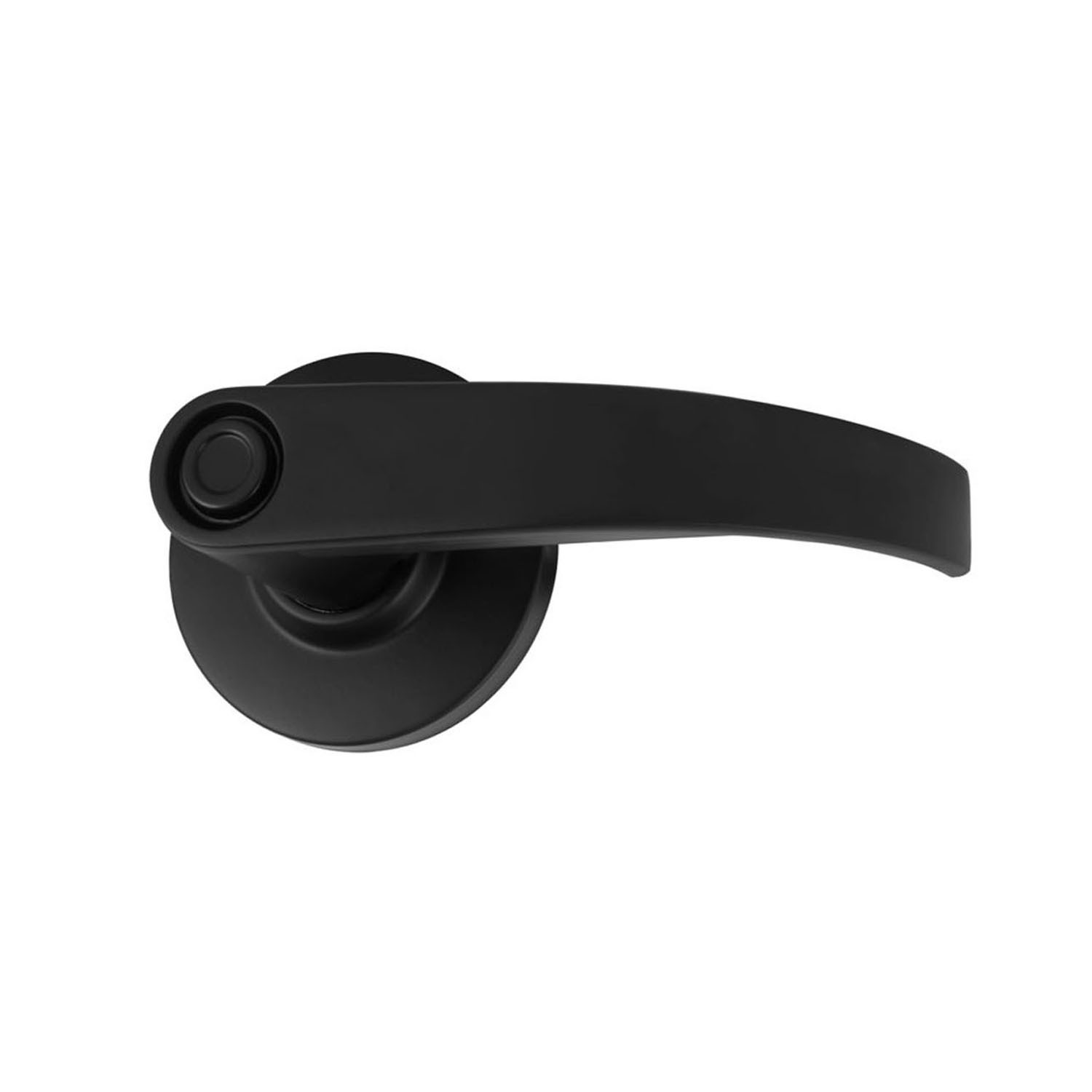

Legge Sparta G2 Entrance Lever
G2SENTMB

Entrance Lever are used on any door that needs the security of a key cylinder which are typically exterior doors.

Entrance Lever Function - Turn/push-button locking, pushing and turning button locks outside lever requiring use of key until button is manually unlocked Push-button locking: pushing button locks outside lever until unlocked by key or by turning inside lever

• Legge has long been associated with providing Australasia industry leading safety, security, style and convenience and the G2 cylindrical lockset is no exception.
• The G2 lockset offers ANSI/BHMA Grade 2 certification and the Sparta lever, with it's 35mm to 45mm clearance.

Features:

• Sparta lever is compliant with AS1428:1-2009 design for access and mobility code
• Tested in excess of 400,000 operating cycles
• Key removable outside lever for quick and easy cylinder placement
• Snap-on inside rose conceals mounting plate and screws
• Supplied standard with D and T strikes and spacer rings
• Two nickel silver keys per lock supplied with both
• Schlage 6 pin C keyway and C4 6 pin keyway as standard
• The G2 series is ideally suited for residential, light and medium duty commercial applications
• Non-handed
• The 10 year warranty provides specifiers and users with assured quality and performance

Specifications:

• Finish: Matt Black
• Rose Diameter: 75mm
• AS1428 Compliant: Yes
• Finger Clearance: 44mm
• Backset: 70mm
• Keyway: C4 6 Pin and Schlage C 6 Pin
• Material: Stainless Steel and Zinc
• Finish: Matt Black

Compliance:

• Fire Rated: Tested on fire door assemblies in accordance with Australian Standards, refer fire door manufacturer for specific approval details.
