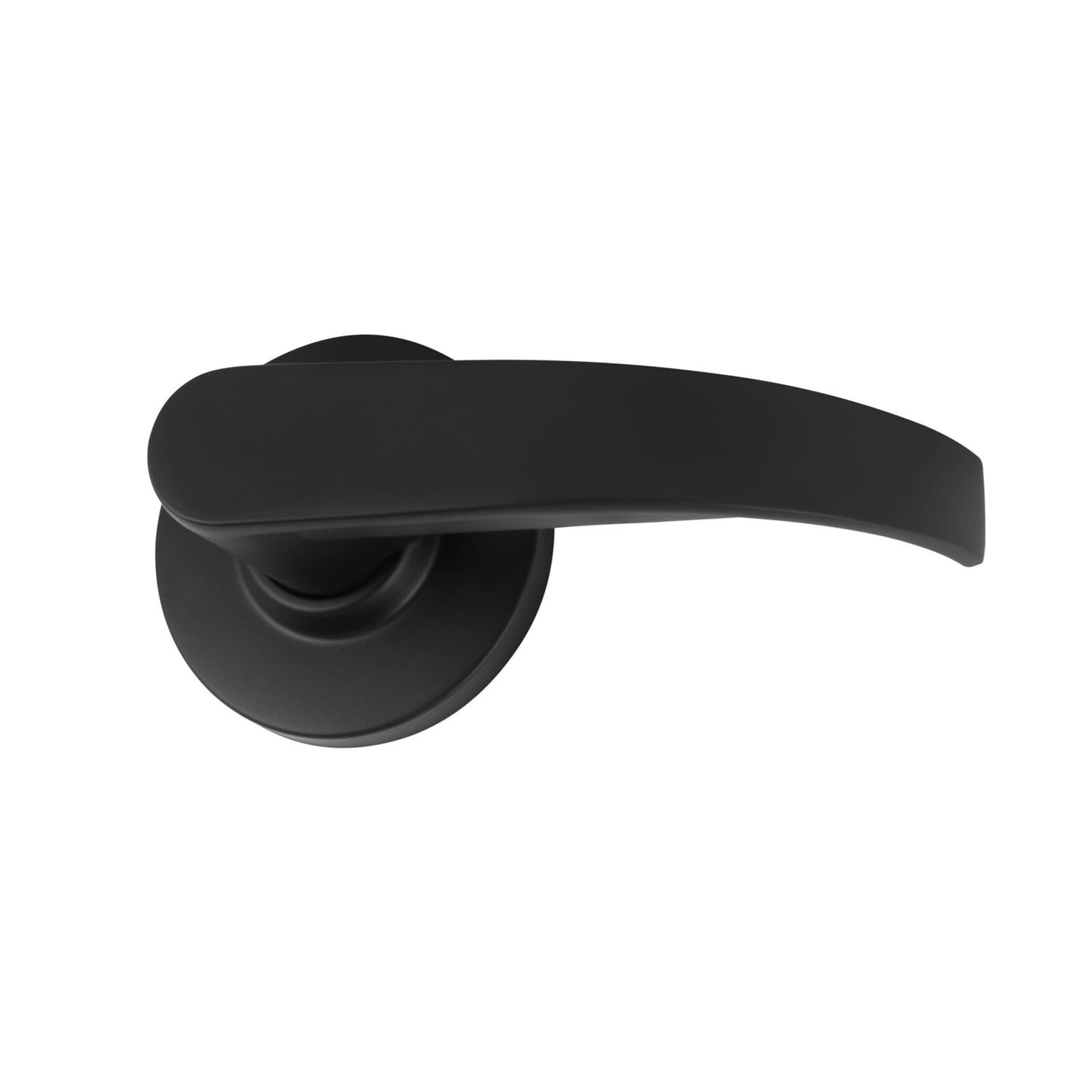

Legge Sparta G2 Passage Lever G10S
G2SPASMB

Passage Lever Function - Both levers always unlocked

Legge has long been associated with providing Australasia industry-leading safety, security, style and convenience and the G2 cylindrical lockset is no exception. The G2 lockset offers ANSI/BHMA Grade 2 certification and the Sparta lever, with it's 35mm to 45mm clearance.

Features:

  • Sparta lever is compliant with AS1428:1-2009
  • Tested in excess of 400,000 operating cycles
  • Key removable outside lever for quick and easy cylinder placement
  • Snap-on inside rose conceals mounting plate and screws
  • Supplied standard with D and T strikes and spacer rings
  • Two nickel silver keys per lock supplied with both
  • Schlage 6 pin 'C' keyway and C4 6 pin keyway as standard
  • The G2 series is ideally suited for residential, light and medium duty commercial applications
  • Non-handed
  • The 10 year warranty provides specifiers and users with assured quality and performance

Specifications:

  • Rose Diameter: 75mm
  • AS1428 Compliant: Yes
  • Finger Clearance: 44mm
  • Backset: 70mm
  • Keyway: C4 6 Pin and Schlage C 6 Pin
  • Material: Stainless Steel and Zinc
  • Finish: Matt Black
  • Function: Passage

Compliance:

  • Fire Rated: Tested on fire door assemblies in accordance with Australian Standards, refer fire door manufacturer for specific approval details.
SKU ALLG2SPASMB
Barcode # 9312574238545
Brand Legge
