Lockwood 005 Paradigm Deadbolt Round Everbrass
005/B1EVBDP

Double Cylinder Deadbolt designed to offer high security level commonly used in domestic and architectural applications.

Double Cylinder Deadbolt Function - A key will be required to turn the lock on the outside. On the inside a key can be used when locked or the turn knob when unlocked

• Designed in Australia, the Paradigm 005 Deadbolt range represents the pinnacle in deadbolt security products.
• Incorporating innovative safety features including Safety Release, LockAlert and DualSelect, the Paradigm range is ideal for residential and architectural applications.

Features:

• Safety Release automatically unlocks internal knob upon key entry from outside
• LockAlert indicator shows lock status at a glance
• Multi-mode slimline deadbolt providing safety, security and convenience
• Simple to install
• High security cut resistant stainless steel bolt
• Box strike with concealed crossgrain doorframe strengthening screw
• 5 pin tumbler mechanism. Brass cylinder and brass barrel

Specifications:

• SafetyRelease: Yes
• Door Thickness Range: 32mm to 48mm
• Residential: Yes
• Compatible with Restricted Keying: Yes
• DualSelect: Yes
• Number of Cylinders: 2
• Bolt / Latch Projection: 15mm
• Fixing Type: Concealed
• Rose Design: Round
• Door Type: Hinged
• Kinetic Defence: Yes
• LockAlert: Yes
• Bolt Material: Stainless Steel

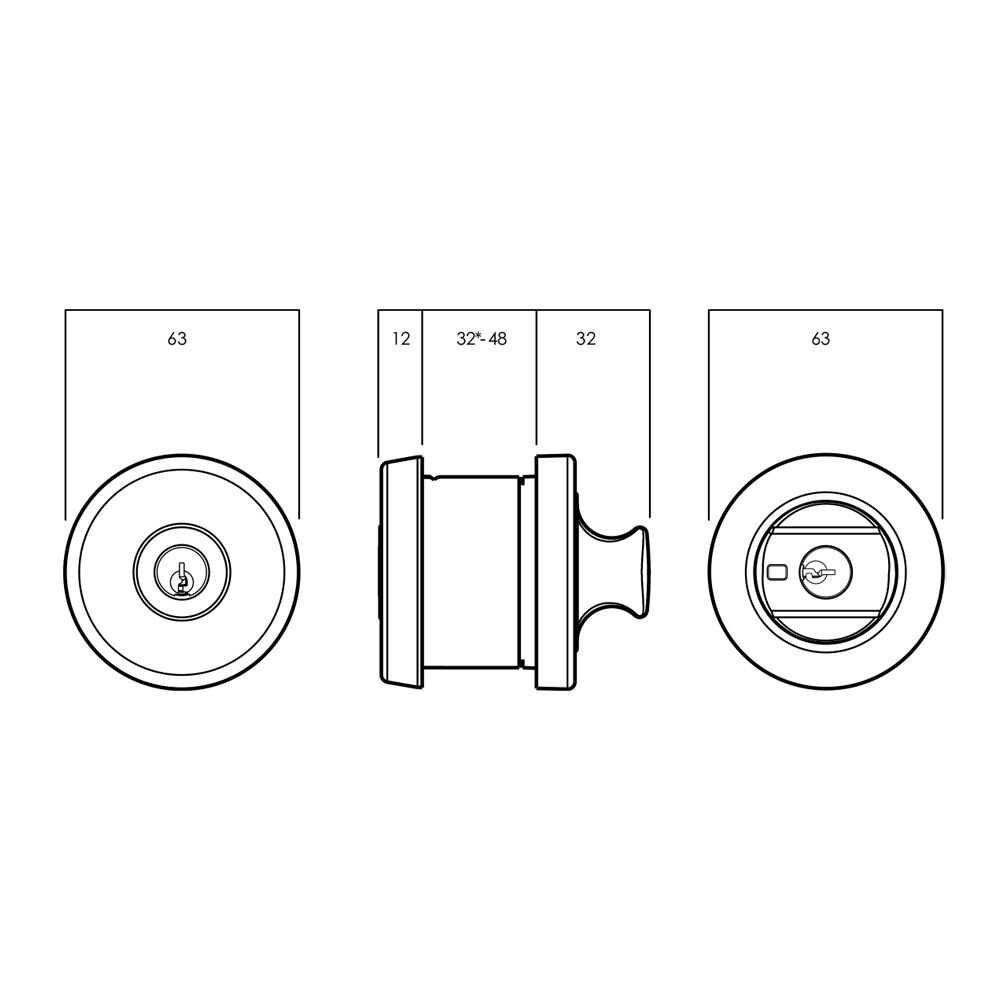

• Rose Diameter: 63mm
• Bolt Holdback: Yes
• Door Frame Strengthener: Yes
• Bolt Type / Function: Deadbolt
• Keying: Supplied individually keyed with two keys per lock, 78,000 key combinations, Key blank KB2015P
• Handing: Reversible
• Backset: 60mm to 70mm (adjustable stainless steel bolt)
• Material: High Purity Zinc Alloy
• Finish: Everbrass

Standard and Compliance:

• SL8 (Security) Australian Lock Standard (AS4145.2 - 2008)
• D8 (Durability) Australian Lock Standard (AS4145.2 - 2008)
• C6 (Corrosion) Australian Lock Standard AS4145.2 - 2008)
• K5 (Key Security) Australian Lock Standard AS4145.2 - 2008)
