Lockwood Paradigm Pull Handle Lockset
005/DPHLSSS

PLEASE NOTE: This item is Non-returnable. Upon placing your order, it CAN'T be cancelled or returned (unless faulty or damaged)

This is a non-stocked item which leaves the warehouse in 10 business days after payment is made.

Pull Handle - Used as handling feature for opening and closing doors. (e.g. Usually used but not limited to entrance doors and some commercial buildings)

Pull Handle Function - Facilitates the operation of doors by gripping the pull handle with one or both hands before pulling it to enter or exit the door.

• Lockwood introduces its new Paradigm Pull Handle lockset for an elegant entry to your home!
• This Australian designed lockset comes in three variants including a Double Cylinder Deadbolt, Self-Latching Single and Double Cylinder.
• The Double Cylinder Deadbolt is highly recommended for residential homes whether it's a new build or an upgrade, this piece will make an excellent entrance choice. It incorporates the superior state-of-the-art design and safety features from the existing 005 Paradigm Deadbolt such as DualSelect, Safety Release and LockAlert that are renowned for performance.

Features:

• Conforms to the security and durability requirements of Australian Standard AS4145.2-2008
• SL8D8C6K5 High security cut resistant
• Stainless Steel bolt for added security
• Brushed 304 grade Stainless Steel Pull Handle
• Door Magnets included to hold the door(s) in position when it is in passage mode (Deadbolt version only)
• Concealed screw fixings provide a neat and clean appearance
• Can be matched with any of Lockwood's internal levers for a stunning and contemporary look throughout the house
• Can be matched with dummy (non-functioning) pull handle for double door applications
• LockAlert - The Paradigm® Pull Handle Lockset incorporates Lockwood's patented LockAlert status indicator that shows the Lockset mode at a glance.
• Key blank KB2015P

The lockset can operate in three modes:

• Secure Mode - Locked from the inside and outside.
• Safety Mode - Locked from the outside and free to exit from inside.
• Passage Mode - Free to enter from outside and free to exit from inside.
• DualSelect - Turn the key for safety mode. Turn the key further to select secure mode.
• SafetyRelease - Automatically unlocks the internal knob upon entry minimising the risk of being locked in.
• Anti-Corrosion - Successfully tested in accordance with AS2332.3.1:2001 neutral salt spray test.
• Kinetic Defence - Bump and pick resistant.
• Counterbalance Bolt - Proportionally distributes the load between the door and door frame.
• 2 Keys Included - Can be keyed alike to other Lockwood door locks.

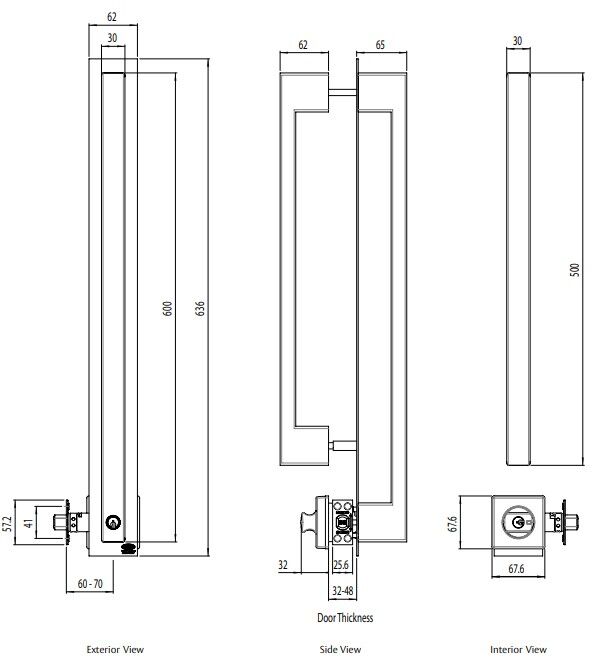

Specifications:

• Fucntion: Self-latching Double Cylinder
• Backset: 60mm - 70mm adjustable latch
• External handle length: 600mm
• Internal handle length: 500mm
• Handle width: 30mm
• Cylinder: 5 pin tumbler mechanism
• Keying: Brass cylinder and brass barrel
• Keys: Supplied individually keyed with two keys per lock
• Key Combinations: 78,000

Approvals:

• AS 4145.2-2008 K5 Security
• Conforms to the security and durability requirements of Australian Standard AS4145.2-2008
• SL8D8C6K5 Durability Conforms to level D8
• (Durability) Australian Lock Standard (AS 4145.2: 2008) Anti-Corrosion - Successfully tested in accordance with AS2332.3.1:2001 neutral salt spray test.
