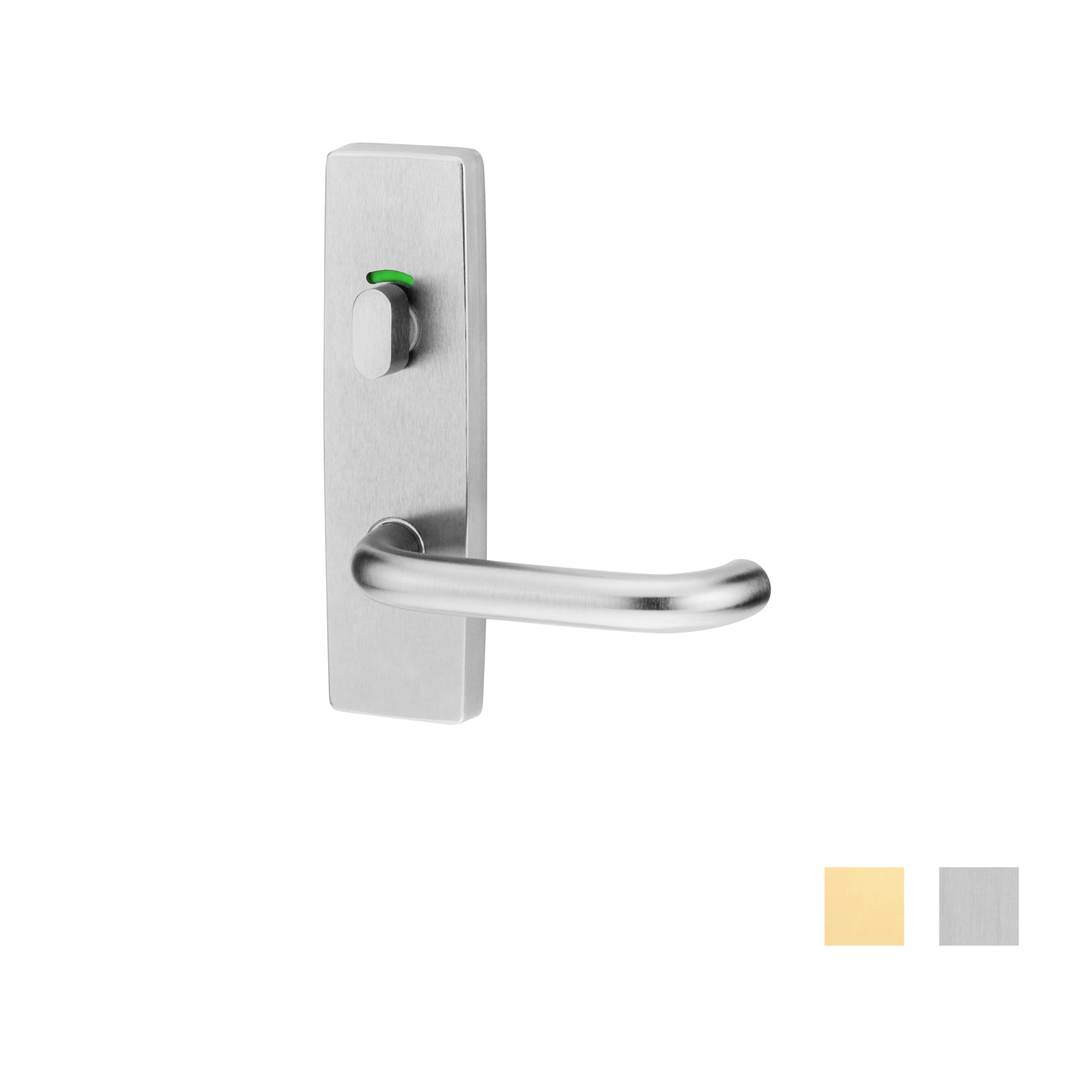

Lockwood 1816 Square End Plate with Privacy Indicator Turn & 70 Lever

PLEASE NOTE: This item is Non-returnable. Upon placing your order, it CAN'T be cancelled or returned (unless faulty or damaged)

This is a non-stocked item which leaves the warehouse in 10 business days after payment is made.

Square End Plate a classic rectangular plate with bevelled edges. Suits corporate, commercial and public spaces with high use requirements.

Square End Plate Function - external plates designed to fit back to back. If outside plate is specified with concealed fixing, then the inside plate must be visible fixed.

Features:

• Designed for use with Lockwood 3570 series locks
• Successfully tested up to 4 hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS 1905.1- 2005, Part 1: Fire Resistant Doorsets
• Rectangular interior square end plate
• Concealed Fix
• Plates are designed to fit back to back

Specifications:

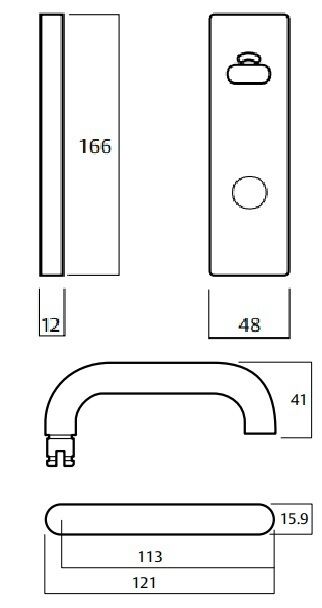

• Plate Size: 166mm x 48mm x 12mm
• Door Thickness: 32mm - 50mm
• Screw Fixing Centres: 148mm
• Internal / External: External
• Plate Type: Square End
• Material: Brass
• Plate Has A Lever: Yes
• Plate Has An Indicator: Yes
• Available Finish:
  • Polished Brass
  • Satin Chrome
  • Satin Chrome Dual Plated
