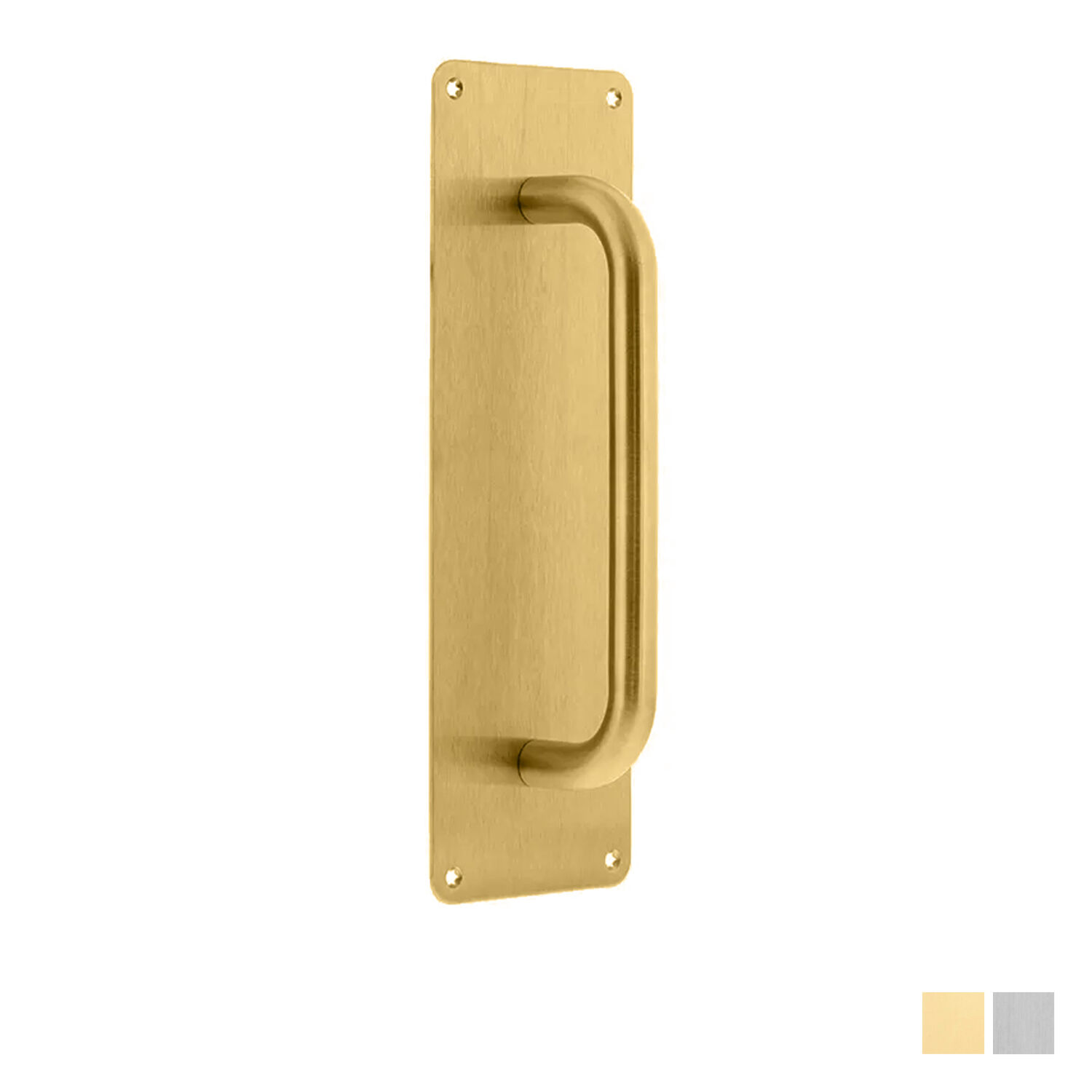

Lockwood 215 Interior Plate & P3 Pull Handle

Pull Handles are used as a handling feature for opening and closing doors. (e.g. Usually used but not limited to entrance doors and some commercial buildings)

Pull Handle Function - Facilitates the operation of doors by gripping the pull handle with one or both hands before pulling it to enter or exit the door.

Features:

• Lockwood P3 handle
• Interior plate with visible fixing
• Plain plate only
• Non-handed
• 10mm radius corners
• Supplied in trade pack
• Australian designed

Specifications:

• Material: Stainless Steel
• Door Thickness: 32mm to 45mm
• Plate Dimensions:
  • Length: 300mm
  • Width: 100mm
  • Thickness: 2mm
  • Handle Diameter: 17.5mm
  • Finger Clearance: 40mm
• Pull Handle Dimensions:
  • Length: 220mm
  • Diameter: 17.5mm
  • Projection: 57mm
  • Fixing Centres: 203mm
  • Finger Clearance: 40mm
• Available Finish:
  • Polished Brass Unlacquered
  • Satin Brass
  • Satin Stainless Steel

Standard and Compliance:

• Fire Rating: Successfully tested up to 4 hours with a fire rated Lockwood mortice lock on fire door assemblies (depending on type of doorset) in accordance with Australian Standard AS1905.1:2005, Fire Resistant Doorsets
• D8: Successfully tested to conform with Level D8 (500,000 cycles) under Australian Standard AS4145.2-2008, Locksets and hardware for doors and windows
• Disabled Compliant: meet the requirements of AS1428.1-2009, Design for access and mobility
