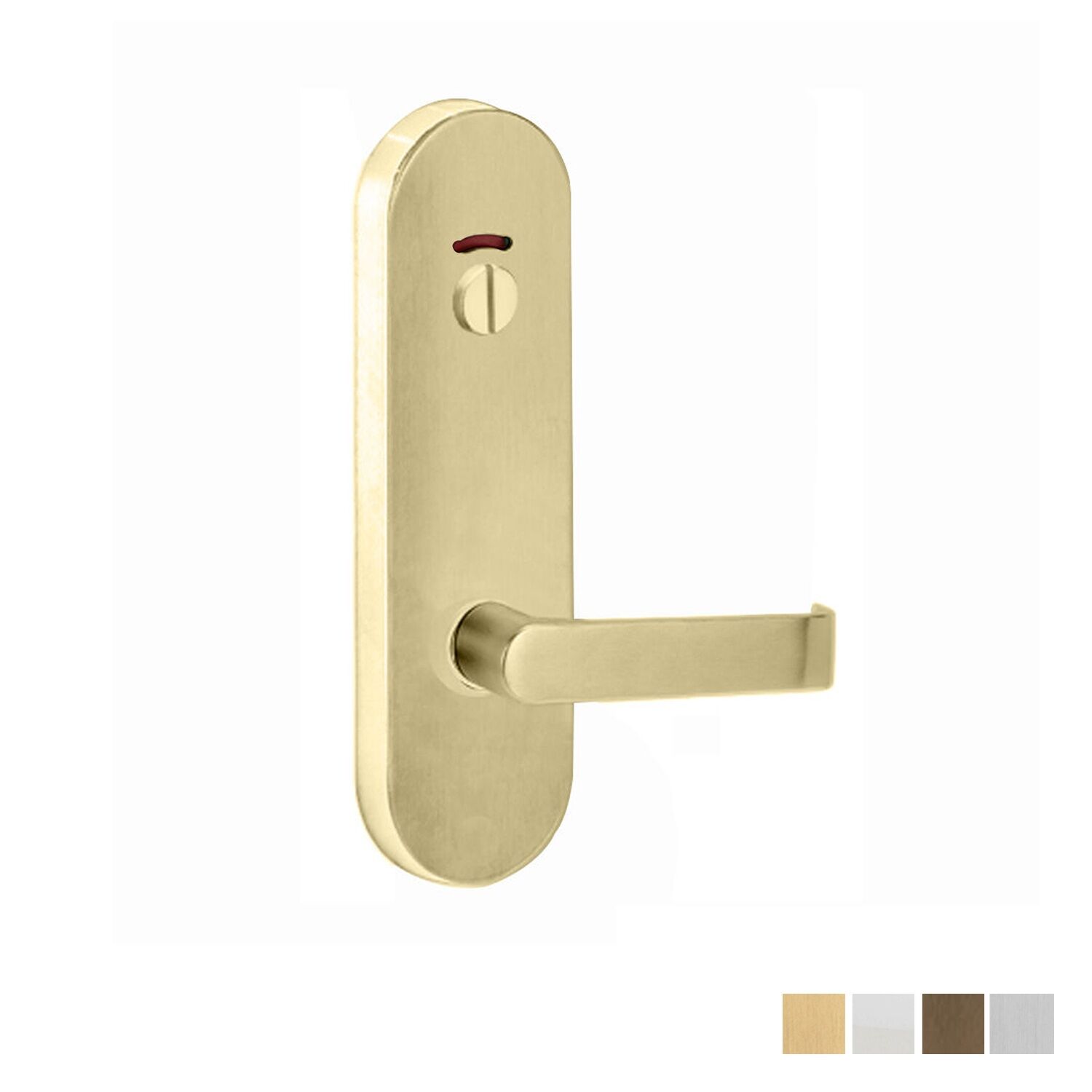

Lockwood 2814 Round End Plate w/ Privacy Indicator Emergency Turn & 59 Lever

Door Lever can be found on all types of doors including exterior doors of internal doors, residential and commercial buildings.

Door Lever Function - Lever design provides an easier grip when opening a door and it prevents your hand from slipping.

Features:

• Style and versatility are combined in this range which comprises of architecturally designed plates which give you the flexibility to mix and match to suit the aesthetics of every application
• Lockwood Brass Plate furniture is made from the highest quality materials and is available in a comprehensive array of levers in a range of superb finishes that provide complete freedom of choice
• The Lockwood Brass Door Furniture range is the culmination of decades of experience in the design and manufacture of high quality door furniture
• Over the years the Lockwood brass door range has evolved as the product of choice for leading architects in commercial, institutional and industrial applicationsExternal plate with concealed fixing (screws included)
• Privacy indicating emergency turn

Specifications:

• Handle Type: Lever 59
• Door Thickness: 32mm to 45mm

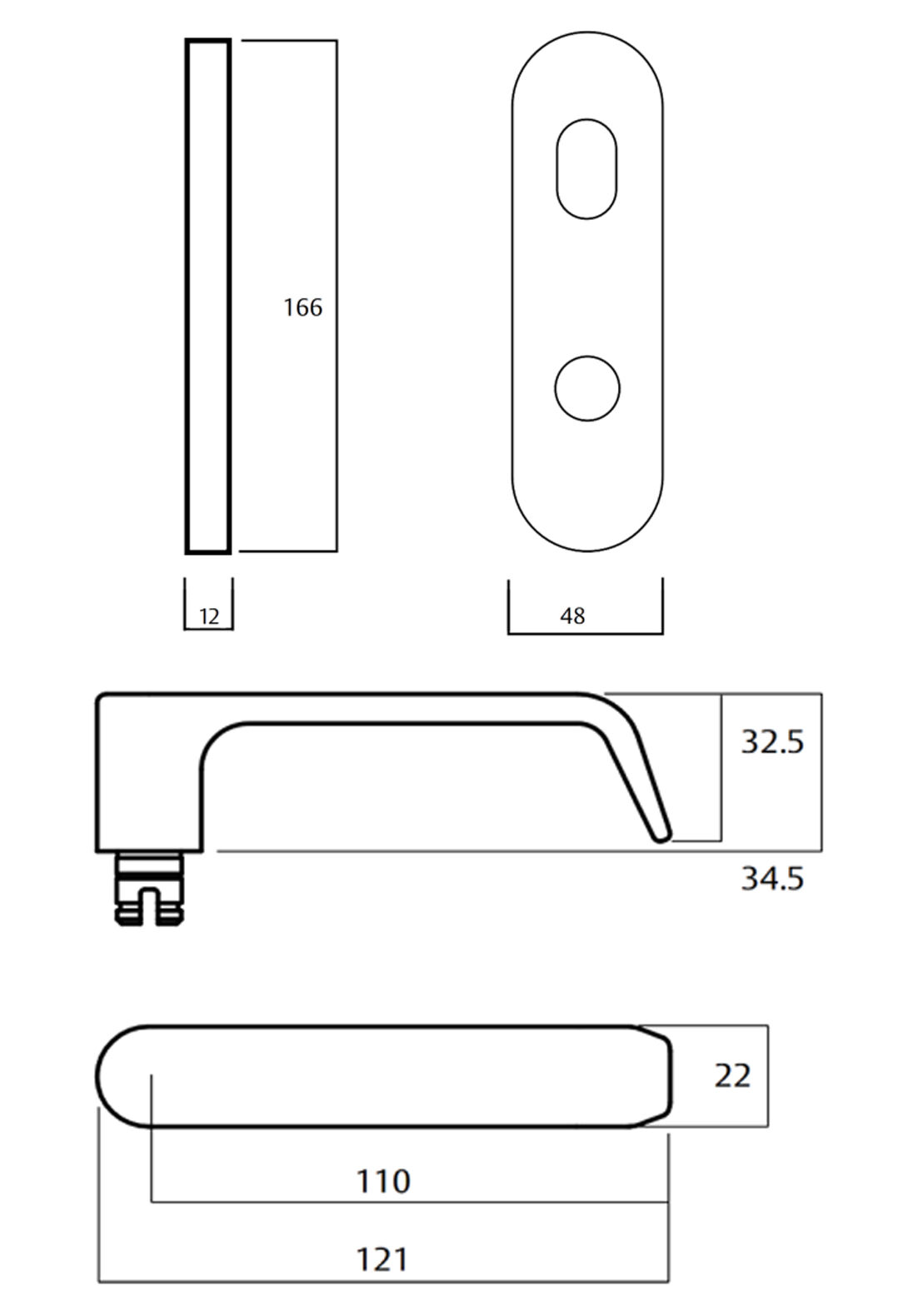

• Plate Dimension:
  • Height: 166mm
  • Width: 48mm
  • Depth: 12mm
• Lever Dimensions:
  • Length: 121mm
  • Projection: 57.5mm
  • Finger clearance: 51mm
• Available Finish:
  • Architectural Bronze Unlacquered
  • Chrome Plate
  • Oil Rubbed Bronze
  • Polished Brass
  • Satin Chrome

Standard and Compliance:

• Fire Rating: Successfully tested up to 4 hours with a fire rated Lockwood mortice lock on fire door assemblies (depending on type of doorset) in accordance with Australian Standard AS1905.1:2005, Fire Resistant Doorsets
• D8: Successfully tested to conform with Level D8 (500,000 cycles) under Australian Standard AS4145.2-2008, Locksets and hardware for doors and windows
• Disabled Compliant: meet the requirements of AS1428.1-2009, Design for access and mobility
