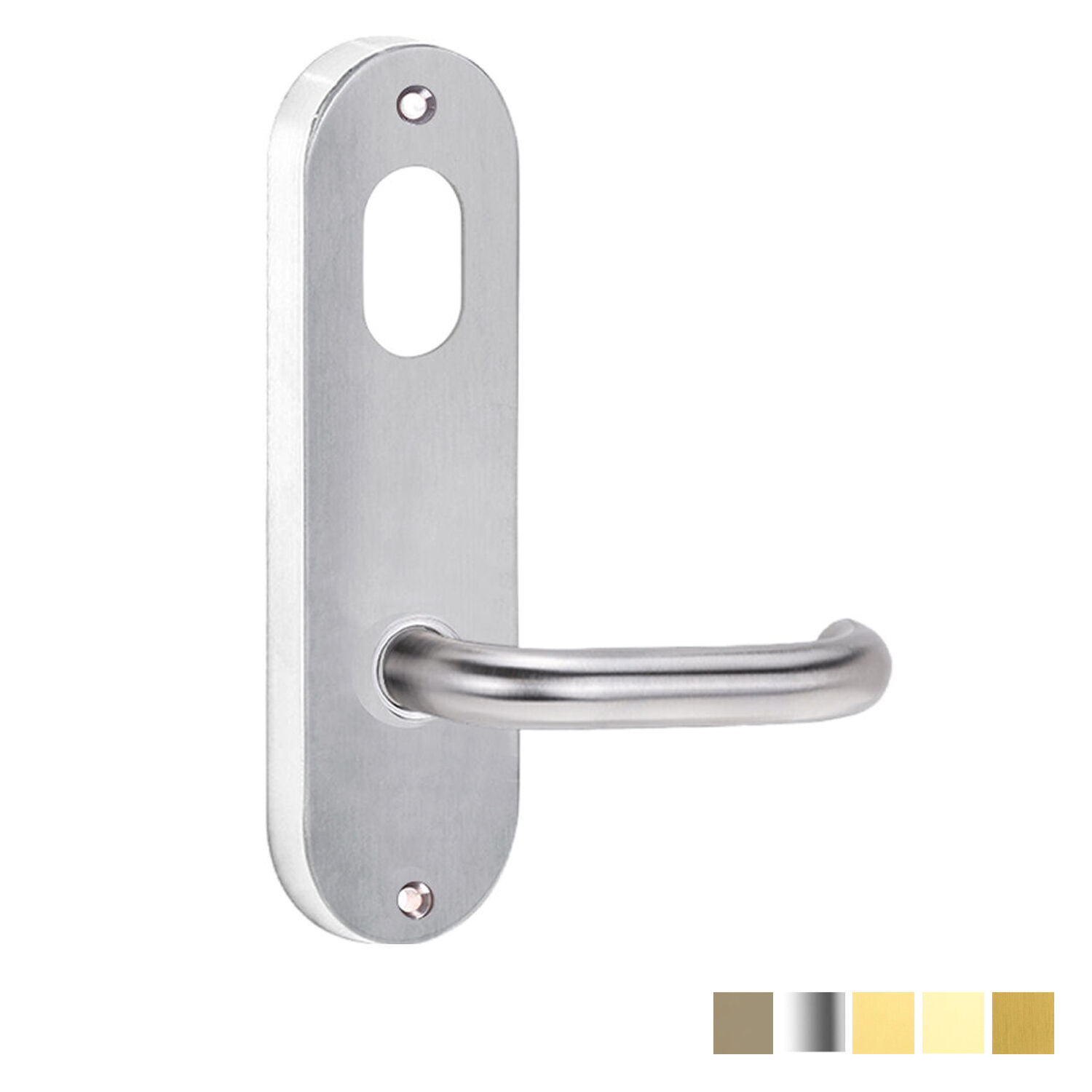

Lockwood 2901/70 Round End Plate with Cylinder Hole & 70 Lever

PLEASE NOTE: This item is Non-returnable. Upon placing your order, it CAN'T be cancelled or returned (unless faulty or damaged)

This is a non-stocked item which leaves the warehouse in 8 business days after payment is made.

Round End Plate with Cylinder Hole and Door Lever is commonly used in residential and commercial door hardware, providing a secure and functional solution for interior and exterior doors.

Round End Plate with Cylinder Hole and Door Lever Function - function provides a sleek and secure handle solution for doors, combining both style and practicality.

Features:

• A classic oval shapped plate suiting corporate, commercial and public spaces with high use requirements
• Designed for use with Lockwood Synergy 3570 and Selector 3770 Series Mortice Locks
• Rectangular exterior round end plate
• Lockwood lever 70
• Internal plate with visible fixing (screws not included)
• Cylinder hole (cylinder not included)
• Non-Handed

Specifications:

• Door Thickness: 32mm - 45mm
• Screw Fixing Centres: 148mm
• Cylinder Pitch: 64mm
• Plate Dimensions
  • Dimensions: 166mm
  • Cylinder pitch: 48mm
  • Fixing centres: 12mm

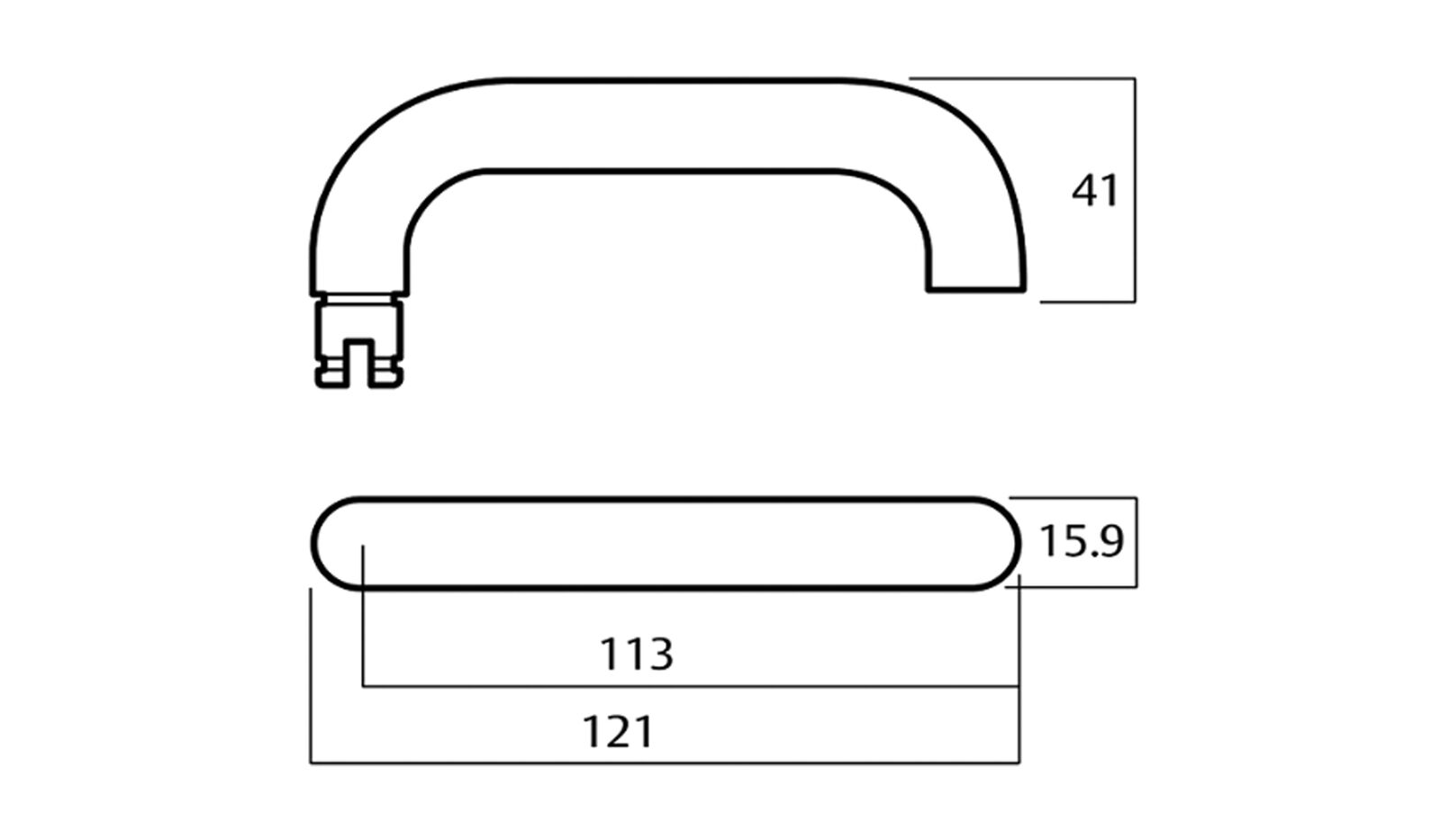

• Lever Dimensions
  • Length: 121mm
  • Projection: 53mm
  • Finger clearance: 37mm
• Plate Type: Round End
• Plate Has Oval Cylinder Hole: Yes
• Plate Has a Lever: Yes
• Available Finish:
  • Architectural Bronze
  • Chrome Plate
  • Polished Brass
  • Polished Brass Unlacquered
  • Satin Brass
  • Satin Chrome

Ratings and Compliance:

• Successfully tested up to 4 hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS 1905.1- 2005, Part 1: Fire Resistant Doorsets.
• Disabled access AS1428.1 compliant lever.
