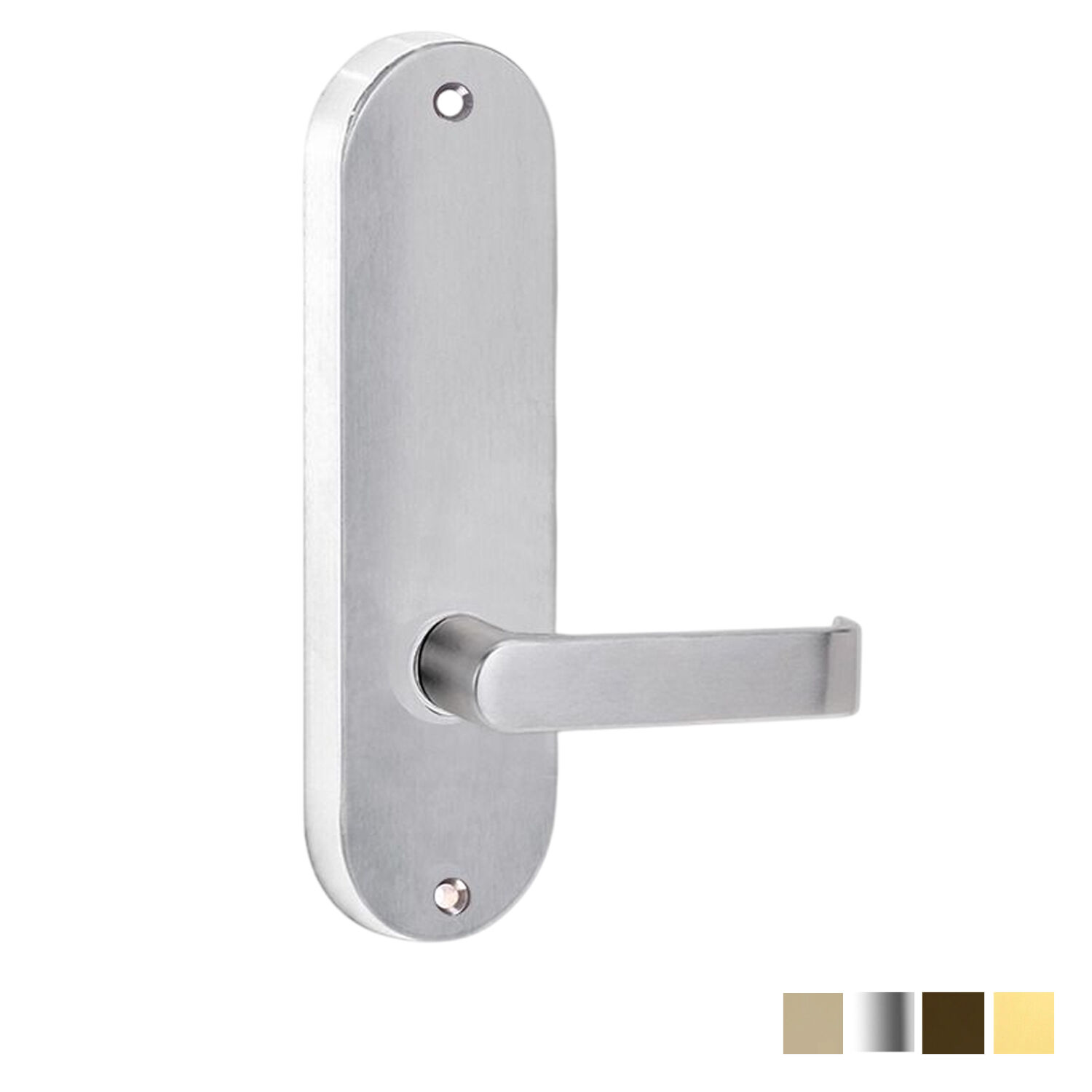

Lockwood 2905/59 Round End Plate with 59 Lever

PLEASE NOTE: This item is Non-returnable. Upon placing your order, it CAN'T be cancelled or returned (unless faulty or damaged)

This is a non-stocked item which leaves the warehouse in 8 business days after payment is made.

Door Lever can be found on all types of doors including exterior doors of internal doors, residential and commercial buildings.

Door Lever Function - Lever design provides an easier grip when opening a door and it prevents your hand from slipping.

Features:

• Lockwood 2900 series interior round end plate furniture
• Designed for use with Lockwood 3570 series locks
• Rectangular interior round end plate
• Plain plate
• Lockwood lever 59 Overture
• Internal plate with visible fixing (screws not included)
• Lever only
• Plates are designed to fit back to back

Specifications:

• Door Thickness: 32mm - 50mm
• Screw Fixing Centres: 148mm
• Cylinder Pitch: 64mm

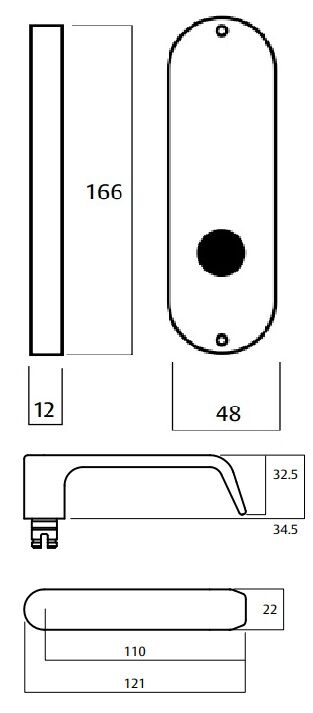

• Plate Dimensions
  • Dimensions: 166mm
  • Cylinder pitch: 48mm
  • Fixing centres: 12mm
• Lever Dimensions
  • Length: 121mm
  • Projection: 57.5mm
  • Finger clearance: 51mm
• Plate Type: Round End
• Plate Has a Lever: Yes
• Finish:
  • Architectural Bronze Unlacquered
  • Chrome Plate
  • Oil Rubbed Bronze
  • Polished Brass
  • Satin Chrome

Ratings and Compliance:

• Successfully tested up to 4 hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS 1905.1- 2005, Part 1: Fire Resistant Doorsets.
• Disabled access AS1428.1 compliant lever.
