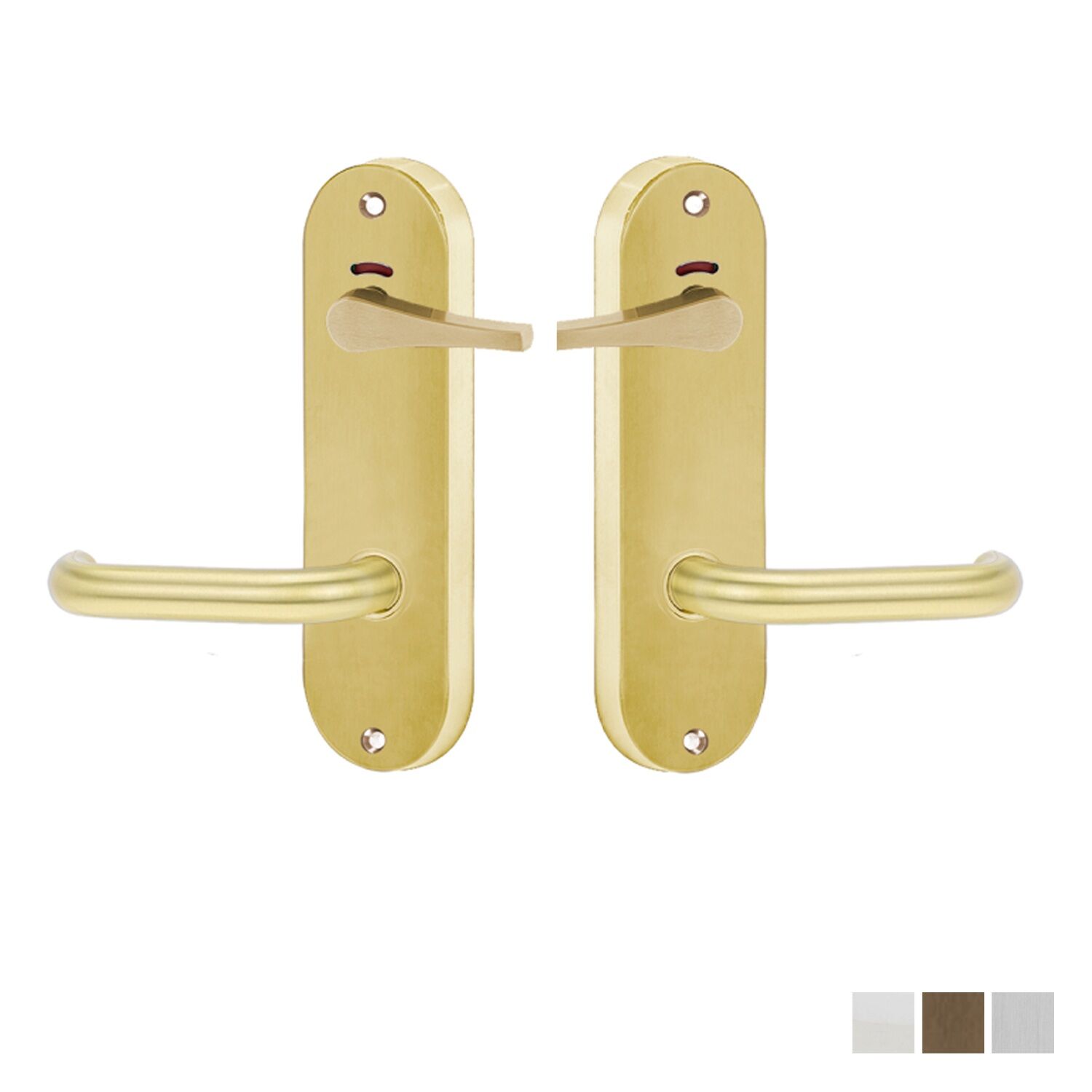

Lockwood 2941 Round End Plate with Privacy Indicator Disabled Turn and 70 Lever

Door Lever can be found on all types of doors including exterior doors of internal doors, residential and commercial buildings.

Door Lever Function - Lever design provides an easier grip when opening a door and it prevents your hand from slipping.

Features:

• Style and versatility are combined in this range which comprises of architecturally designed plates which give you the flexibility to mix and match to suit the aesthetics of every application
• Lockwood Brass Plate furniture is made from the highest quality materials and is available in a comprehensive array of levers in a range of superb finishes that provide complete freedom of choice
• Lockwood Brass Door Furniture range is the culmination of decades of experience in the design and manufacture of high quality door furniture
• Over the years the Lockwood brass door range has evolved as the product of choice for leading architects in commercial, institutional and industrial applications
• Timeless design of this tubular shaped lever signifies quality and strength
• 2800 Series features a classic oval shapped plate suiting corporate, commercial and public spaces with high use requirements
• Designed for use with Lockwood Synergy 3570 and Selector 3770 Series Mortice Locks
• Internal plate with visible fixing (screws not included)
• Privacy indicating accessibility turn

Specifications:

• Handle Type: Lever 70
• Door Thickness: 32mm to 45mm
• Cylinder pitch: 64mm
• Fixing centres: 148mm

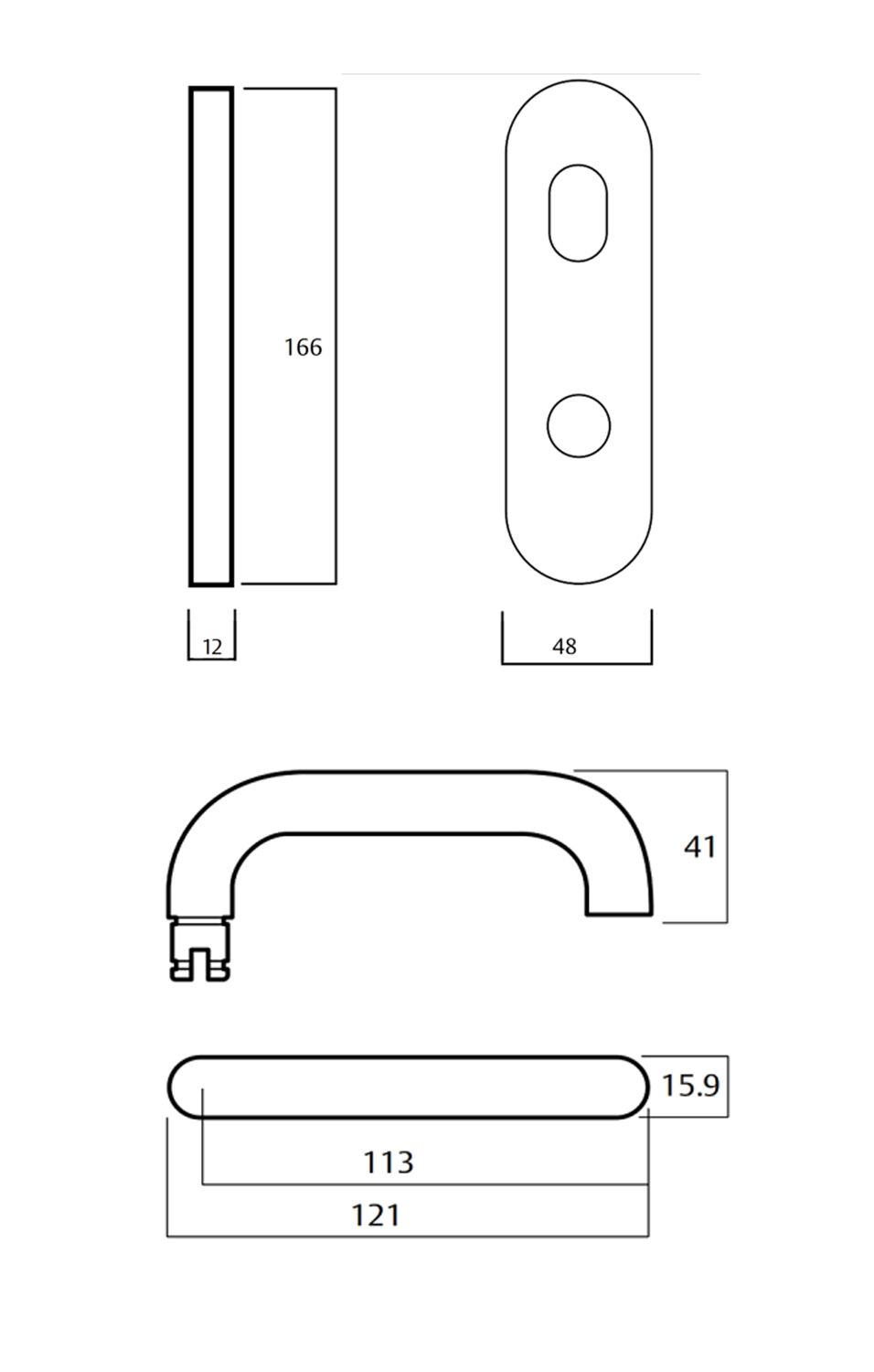

• Plate Dimension:
  • Height: 166mm
  • Width: 48mm
  • Depth: 12mm
• Lever Dimensions:
  • Length: 121mm
  • Projection: 53.5mm
  • Finger clearance: 37mm
• Available Handing:
  • Left Hand
  • Right Hand
• Available Finish:
  • Chrome Plate
  • Chrome Plate Dual Plated
  • Oil Rubbed Bronze
  • Polished Brass Unlacquered
  • Satin Chrome

Standard and Compliance:

• Fire Rating: Successfully tested up to 4 hours with a fire rated Lockwood mortice lock on fire door assemblies (depending on type of doorset) in accordance with Australian Standard AS1905.1:2005, Fire Resistant Doorsets
• D8: Successfully tested to conform with Level D8 (500,000 cycles) under Australian Standard AS4145.2-2008, Locksets and hardware for doors and windows
• Disabled Compliant: meet the requirements of AS1428.1-2009, Design for access and mobility
