Lockwood 3782 Universal Mortise Lock
3782ELSS

Mortice Lock is commonly used in doors. It is known for its durability, security, and classic design. It consist of several components that work together to provide effective locking and unlocking functions.

Mortice Lock Function - where the deadbolt locks by a key on both the exterior and interior of the lock. Latch is activated by turning the key or lever handle if fitted

Features:

• Lockwood Selector 3782EL short backset electric mortice lock. Suitable for metal doors
• Monitored with simple in field selectable from power to lock to power to open
• The lock can be operated by push buttons, intercom systems and key switches; or integrated with electronic access control systems for use with higher security devices such as keypads or card readers
• 3782 electric mortice lock
• Simple in field selectable from power to lock to power to open 9 – 28VDC
• 300mA MAX (20mA continuous if LEDs are activated)
• Full range of monitoring including REX, Deadlatch, Door position, KOM and lock status
• On board door status LEDs improves installation and reliability
• Unique functions for double reader applications which allows external side to fail securely while internal side fails safe allowing free egress escape
• Motor driven providing lower power usage in some applications
• Supplied less cylinder.
• Supplied with X7 (3700X7CAM) cam
• Supplied with 3.6m cable with 12 pin connector and water deflecting boot
• Compatible with 4800 and 5800 series furniture

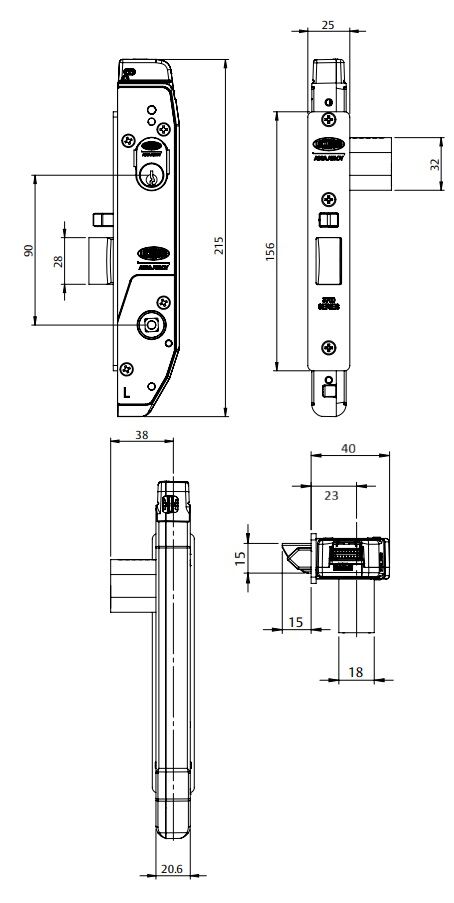

Specifications:

• Backset: 23mm
• Door Thickness: 35mm to 50mm
• Field Selectable Fail Safe Or Fail Secure: Yes
• Working Voltage: 9 Vdc to 28 Vdc
• Handing: Reversible
• Monitoring: Monitored
• Finish: Stainless Steel

Standard and Compliance:

• Security: All Selector® 3782EL Series Cylinder Mortice Locks conform with Level S7 (Physical Security) Australian Lock Standard (AS-4145.2-2008). Conforms to Level S8 (Physical Security) when fitted with door furniture and anti-drill cylinder
• Durability: All Selector® 3782EL Series Cylinder Mortice Locks conform with Level D8 (Durability) Australian Lock Standard (AS4145.2-2008)
• Anti-Corrosion: All Selector® 3782EL Series Cylinder Mortice Locks conform with Level C6 (168 hours) Australian Standard (AS4145.2-2008)
