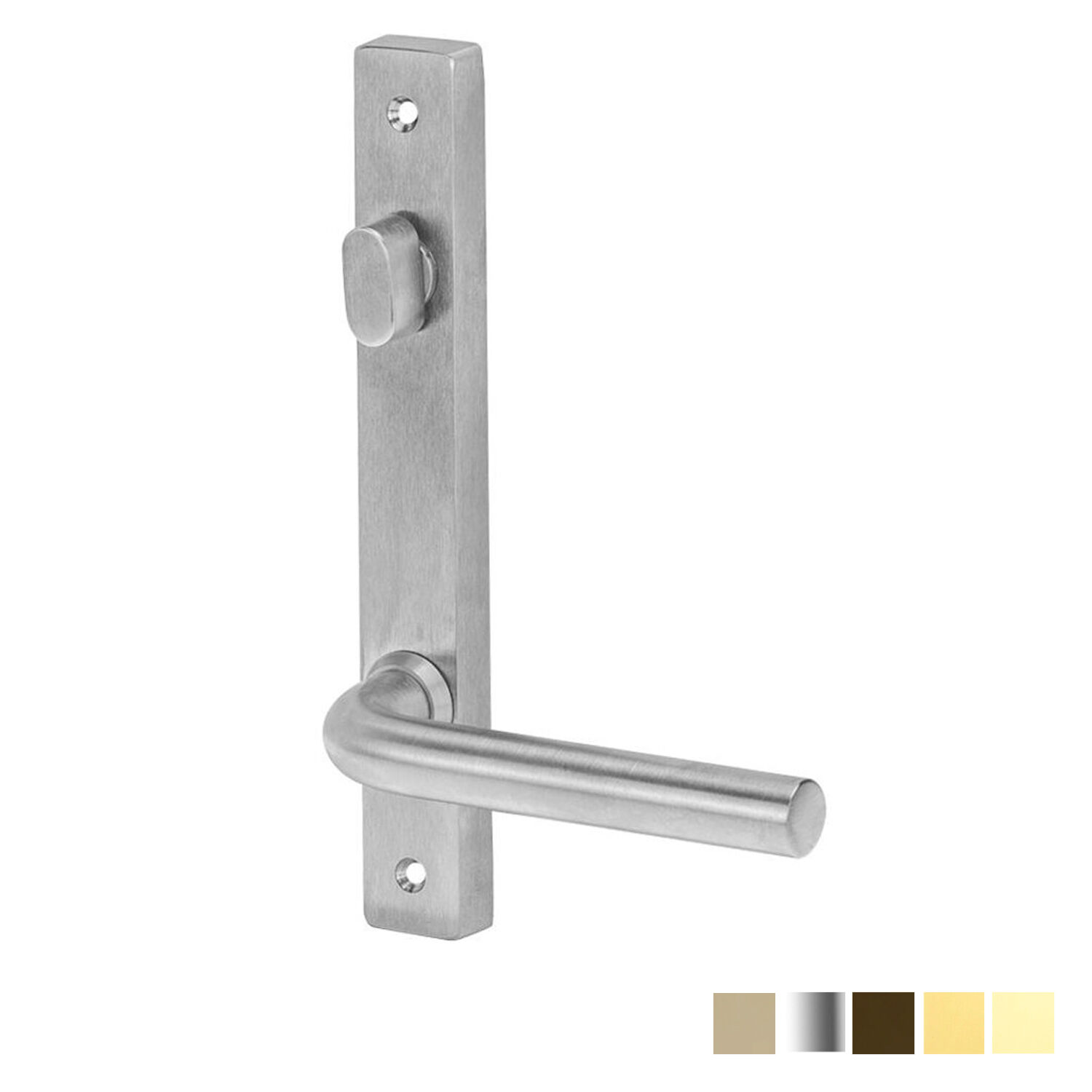

Lockwood 4904/97 Square End Plate with Turn & 97 Lever

PLEASE NOTE: This item is Non-returnable. Upon placing your order, it CAN'T be cancelled or returned (unless faulty or damaged)

This is a non-stocked item which leaves the warehouse in 8 business days after payment is made.

Door Lever can be found on all types of doors including exterior doors of internal doors, residential and commercial buildings.

Door Lever Function - Lever design provides an easier grip when opening a door and it prevents your hand from slipping.

Features:

• A classic rectangular plate with bevelled edges suiting corporate, commercial and public spaces with high use requirements
• Designed for use with Lockwood Synergy 3580 and Selector 3780 Series Mortice Locks
• Additionally there are functions that are designed to work with Lockwood 3540 Series short backset mortice deadbolts
• Lockwood lever Chorus Line 97
• Internal plate with visible fixing (screws not included)
• Standard oval turn
• Non-handed
• Plates are designed to fit back to back

Specifications:

• Door Thickness: 32mm - 50mm
• Screw Fixing Centres: 148mm
• Cylinder Pitch: 64mm
• Plate Dimensions:
  • Height: 185mm
  • Width: 26mm
  • Depth: 11.5mm
  • Cylinder pitch: 89.9mm
  • Fixing centres: 160mm
• Lever Dimensions:
  • Length: 120mm
  • Projection: 50.5mm
  • Finger clearance: 34.6mm
• Plate Has a Lever: Yes
• Available Finish:
  • Architectural Bronze Unlacquered
  • Chrome Plate
  • Oil Rubbed Bronze
  • Polished Brass
  • Polished Brass Unlacquered
  • Satin Chrome
