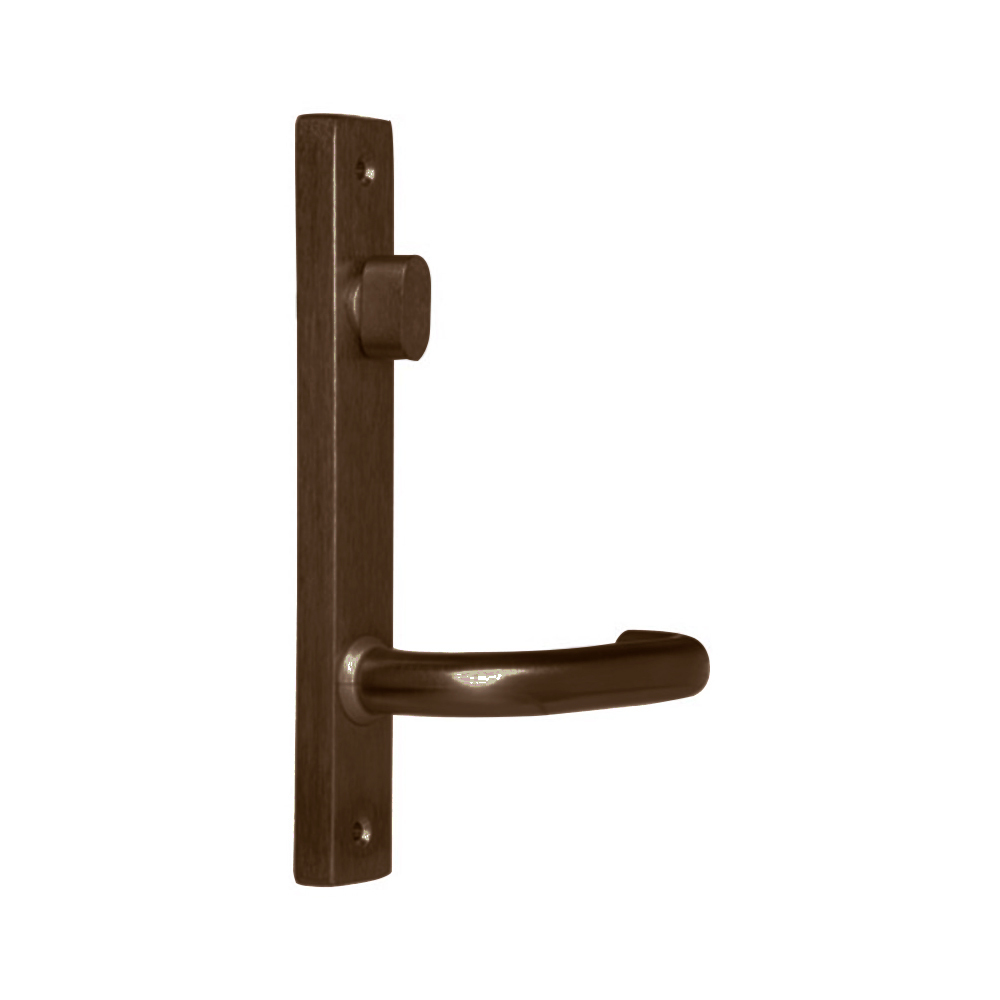

Lockwood 4904 Square End Plate with Turn and 70 Lever
4904/70ORB

PLEASE NOTE: This item is Non-returnable. Upon placing your order, it CAN'T be cancelled or returned (unless faulty or damaged)

This is a non-stocked item which leaves the warehouse in 8 business days after payment is made.

Square End Plate a classic rectangular plate with bevelled edges. Suits corporate, commercial and public spaces with high use requirements.

Square End Plate Function - external plates designed to fit back to back. If outside plate is specified with concealed fixing, then the inside plate must be visible fixed.

Features:

  • Lockwood 4900 series interior narrow stile square end plate
  • Designed for use with Lockwood 3580/3780 series locks
  • Narrow stile internal square end plate
  • Turnsnib and 70 series tubular lever
  • Disabled access AS1428.1 compliant lever
  • Features a unique self adjusting turnsnib tail bar to suit varies door thickness
  • Visible fixing
  • Plates are designed to fit back to back

Specifications:

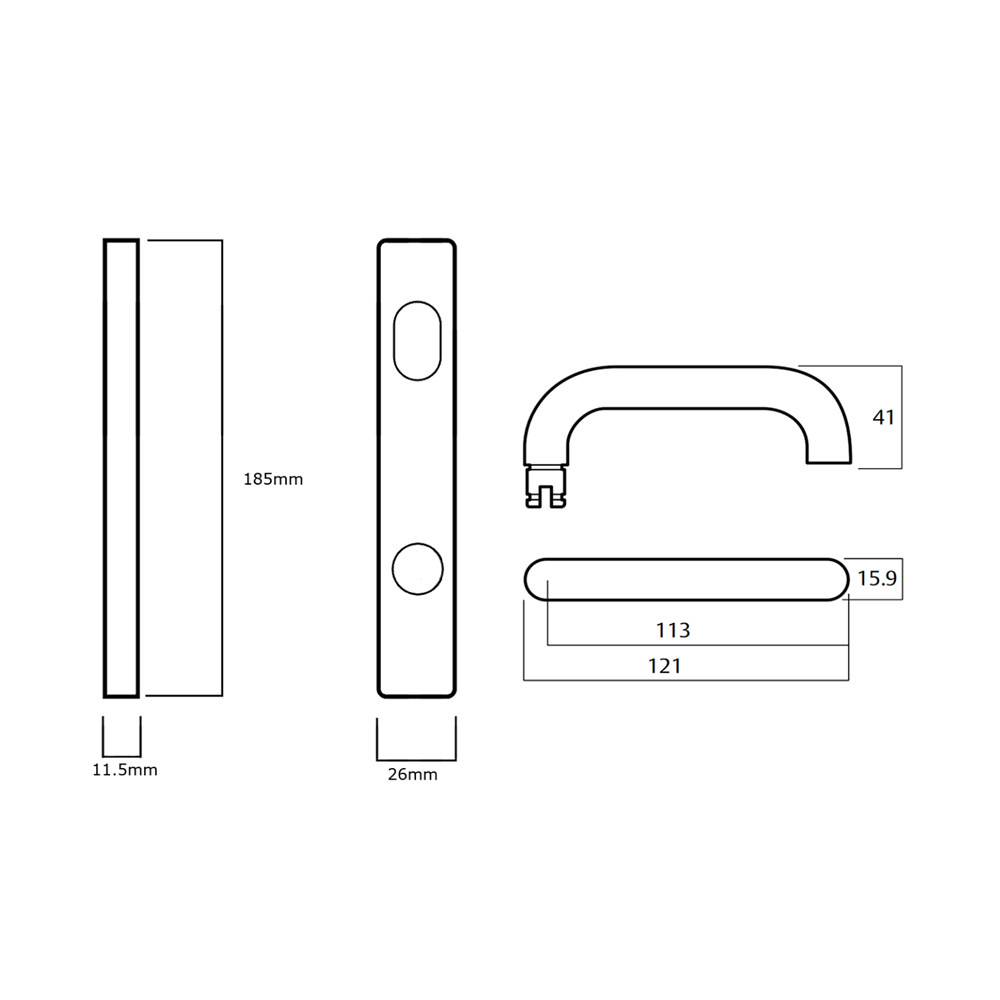

  • Plate Size: 185mm x 26mm x 11.5 mm
  • Door Thickness: 32mm - 50mm
  • Fixing Holes Centres: 160mm
  • Internal / External: Internal
  • Plate Type: Square End
  • Material: Brass
  • Plate Has A Lever: Yes
  • Plate Has A Turnsnib: Yes
  • Finish: Oil Rubbed Bronze
SKU ASS490470ORB
Barcode # 9340116025681
Brand Lockwood
