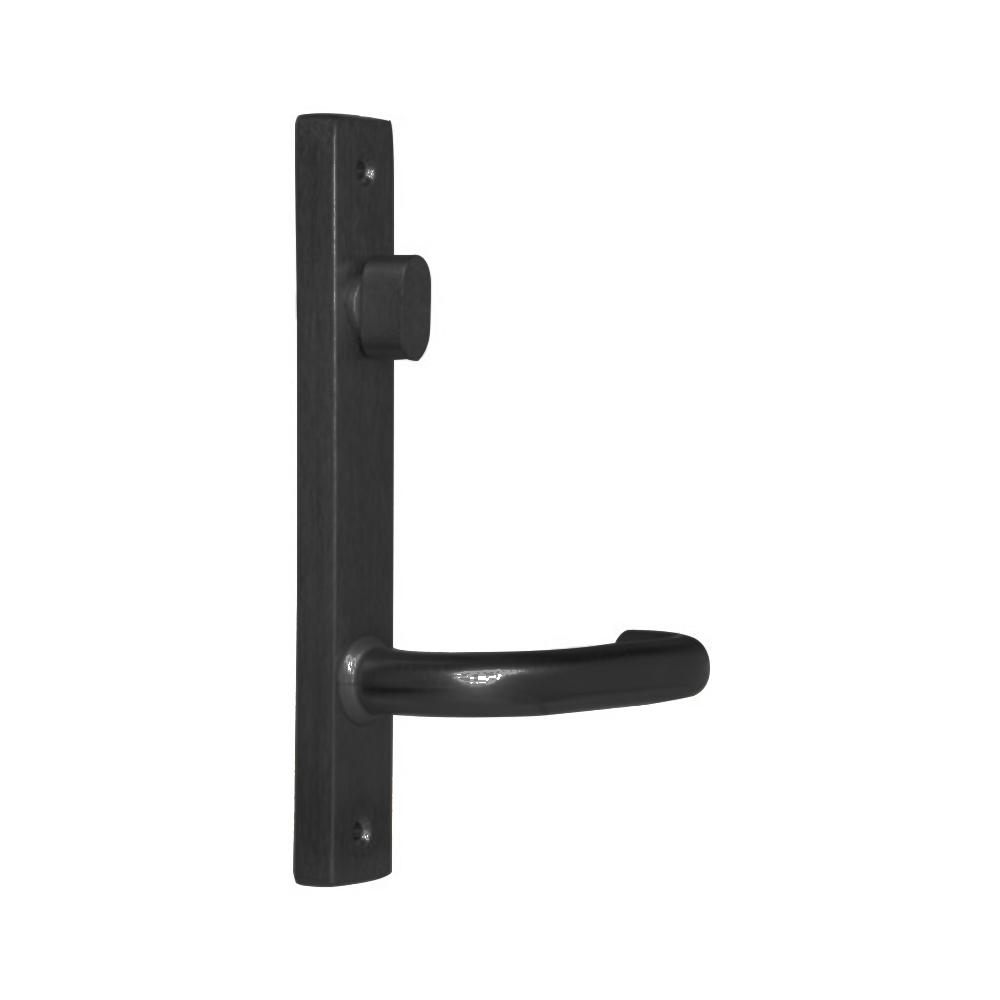

Lockwood 4904 Square End Plate with Turn and 70 Lever
4904/70PCMB

Square End Plate a classic rectangular plate with bevelled edges. Suits corporate, commercial and public spaces with high use requirements.

Square End Plate Function - external plates designed to fit back to back. If outside plate is specified with concealed fixing, then the inside plate must be visible fixed.

Features:

• Lockwood 4900 series interior narrow stile square end plate
• Designed for use with Lockwood 3580/3780 series locks
• Narrow stile internal square end plate
• Turnsnib and 70 series tubular lever
• Disabled access AS1428.1 compliant lever
• Features a unique self adjusting turnsnib tail bar to suit varies door thickness
• Visible fixing
• Plates are designed to fit back to back

Specifications:

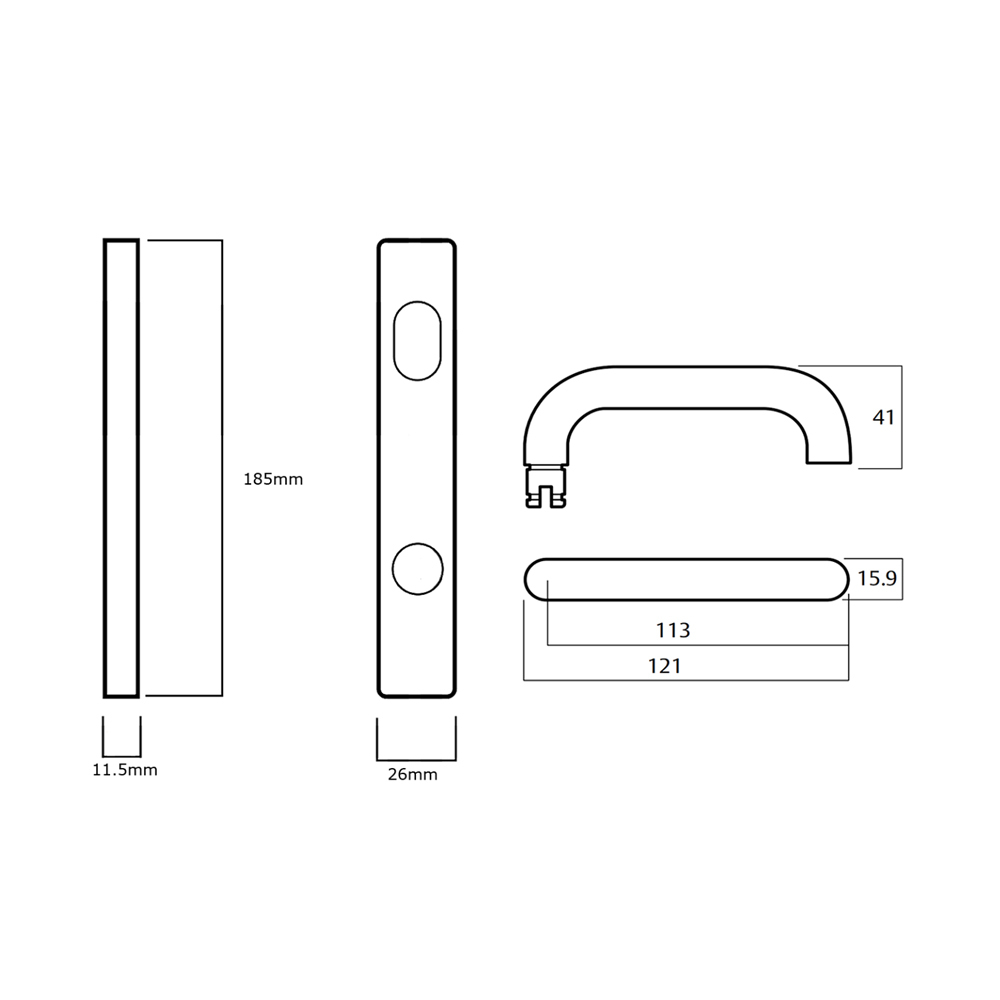

• Plate Size: 185mm x 26mm x 11.5 mm
• Door Thickness: 32mm - 50mm
• Fixing Holes Centres: 160mm
• Internal / External: Internal
• Plate Type: Square End
• Material: Brass
• Plate Has A Lever: Yes
• Plate Has A Turnsnib: Yes
• Finish: Matt Black
