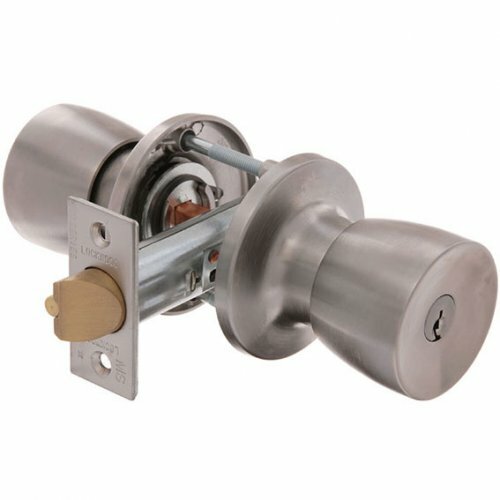

Lockwood 530 Series Glass Door Knob Set
534SC

Features:
  • Keyed to differ

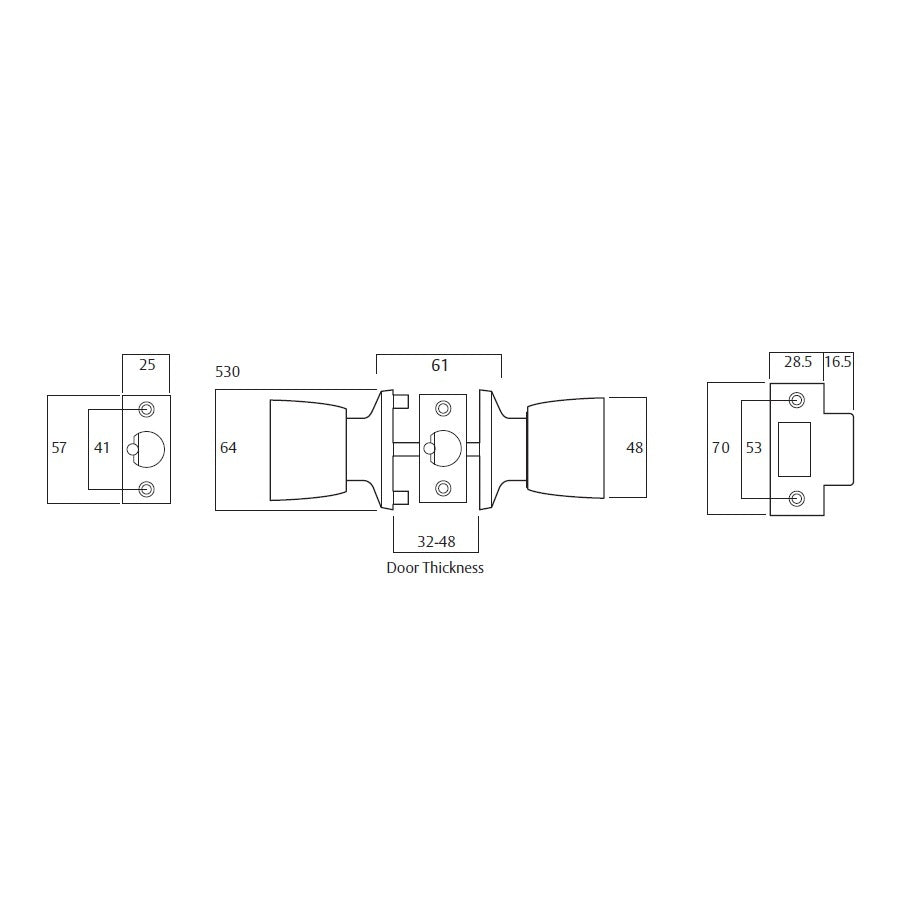

  • Door thickness: 32-45mm
  • Backset: 60mm
  • Max. projection: 61mm
  • Strike: 70mm x 28.5mm x 1.2mm
  • Latch face plate: 57mm x 25mm
  • Cylinder: LW4 profile
  • Door handing: Non-handed
  • Rose: 64mm

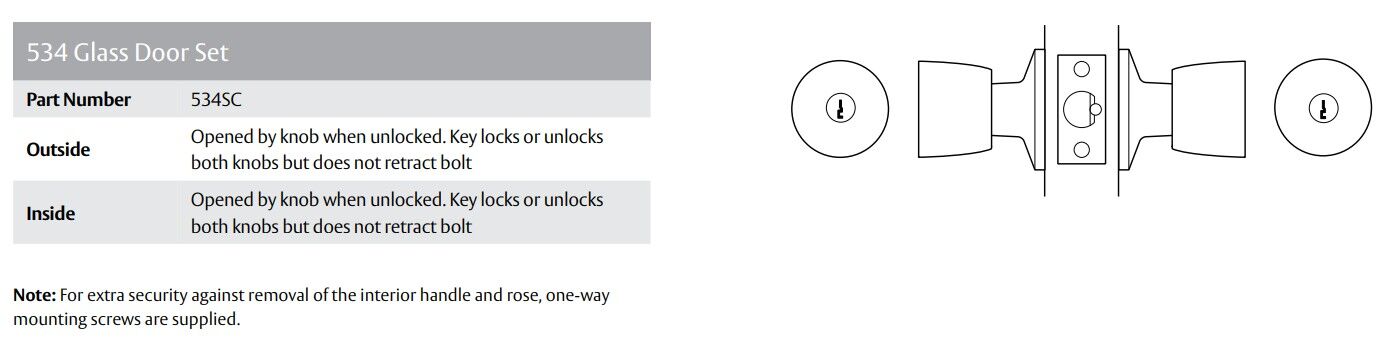

Glass door function:
  • Outside key locks and unlocks both knobs.
  • Inside key locks and unlocks both knobs.

Additional info:
  • Commercial grade glass door knobset.
  • Outside opened by the knob when free, outside key locks and unlocks both knobs.
  • Inside opened by the knob when free, inside key locks and unlocks both knobs.
  • Compatible with most restricted keying systems.
  • 60mm backset standard.
  • 70mm and 127mm latches available separately.
  • Suit door thickness 32-45mm.
  • Brass latch bolt with 13mm projection.
  • Knobs and roses made of high purity zinc alloy.
  • Fire rated to 2 hours.
  • Finished in satin chrome.

Accessories (sold separately):
  • Lockwood Tubular Dead Latch 127mm (530-225SC)
  • Lockwood Rebate Kit (530-9SC)
SKU ASS534SC
Barcode # 9311847185425
Brand Lockwood
