Lockwood 530 Series Entrance Knob Set KD
530SC

Designed as a non handed, easy to install lockset. This top quality range is suitable for residential and commercial applications including office partitioning.

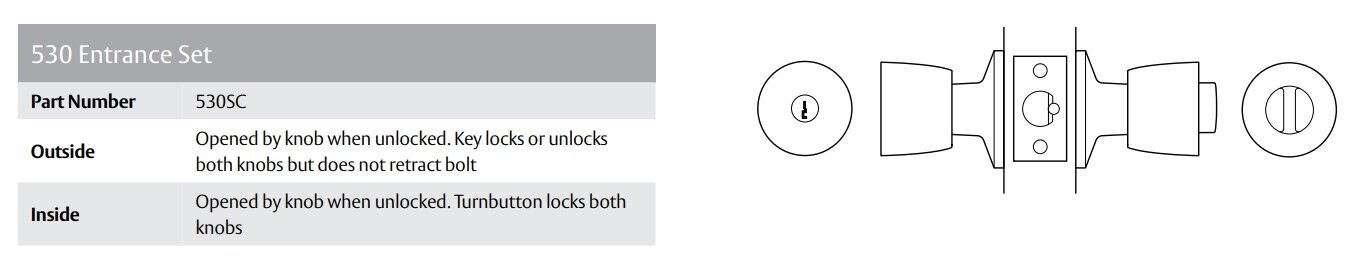

Entrance Function:

• Outside key locks and unlocks both knobs.
• Inside turnsnib locks and unlocks both knobs.

Features:

• Commercial grade entrance knobset
• Key locks or unlocks exterior knob
• Outside opened by the knob when free, key locks and unlocks both knobs
• Turnsnib locks or unlocks the both knobs
• Compatible with most restricted keying systems
• Brass latch bolt with 13mm projection
• Knobs and roses made of high purity zinc alloy
• Fire rated to 2 hours

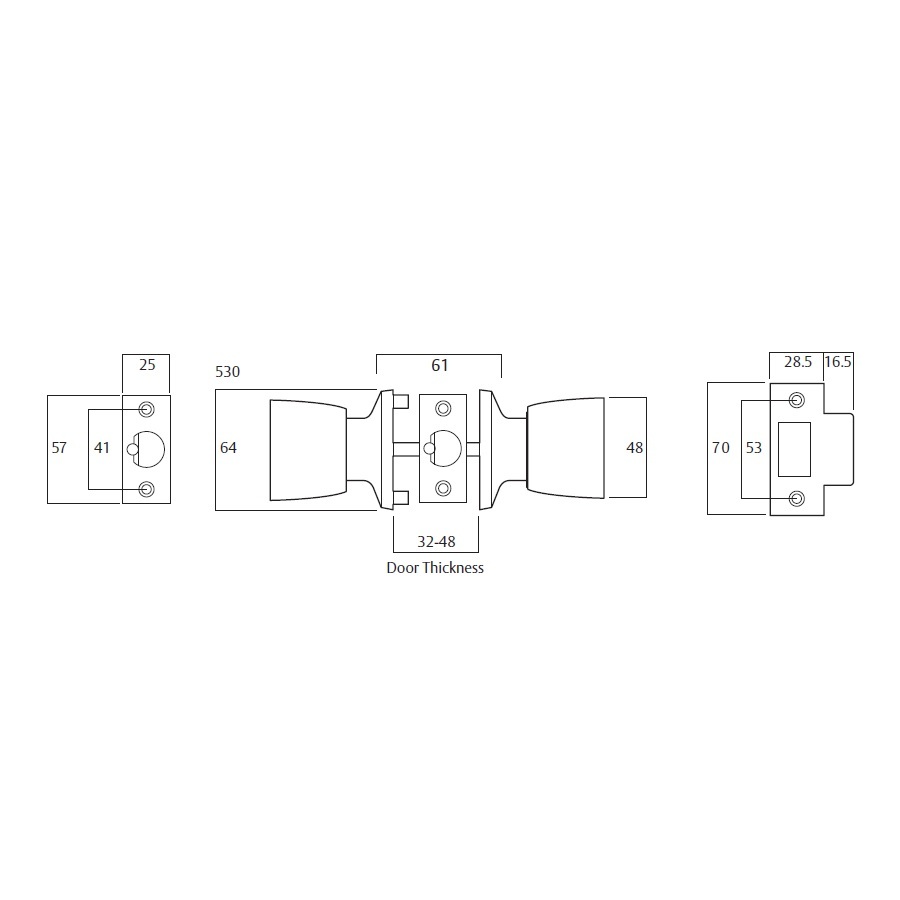

Specifications:

• Keying: Keyed to differ
• Door Thickness: 32-48mm
• Backset: 60mm
• Max. Projection: 61mm
• Strike: 70mm x 28.5mm x 1.2mm
• Latch: 60mm backset
• Latch Face Plate: 57mm x 25mm
• Cylinder: LW4 profile
• Door Handing: Non-handed
• Rose Diameter: 64mm
• Finish: Satin Chrome

Accessories (sold separately):

• Lockwood Tubular Dead Latch 127mm (530-225SC)
  Lockwood Rebate Kit (530-9SC)
