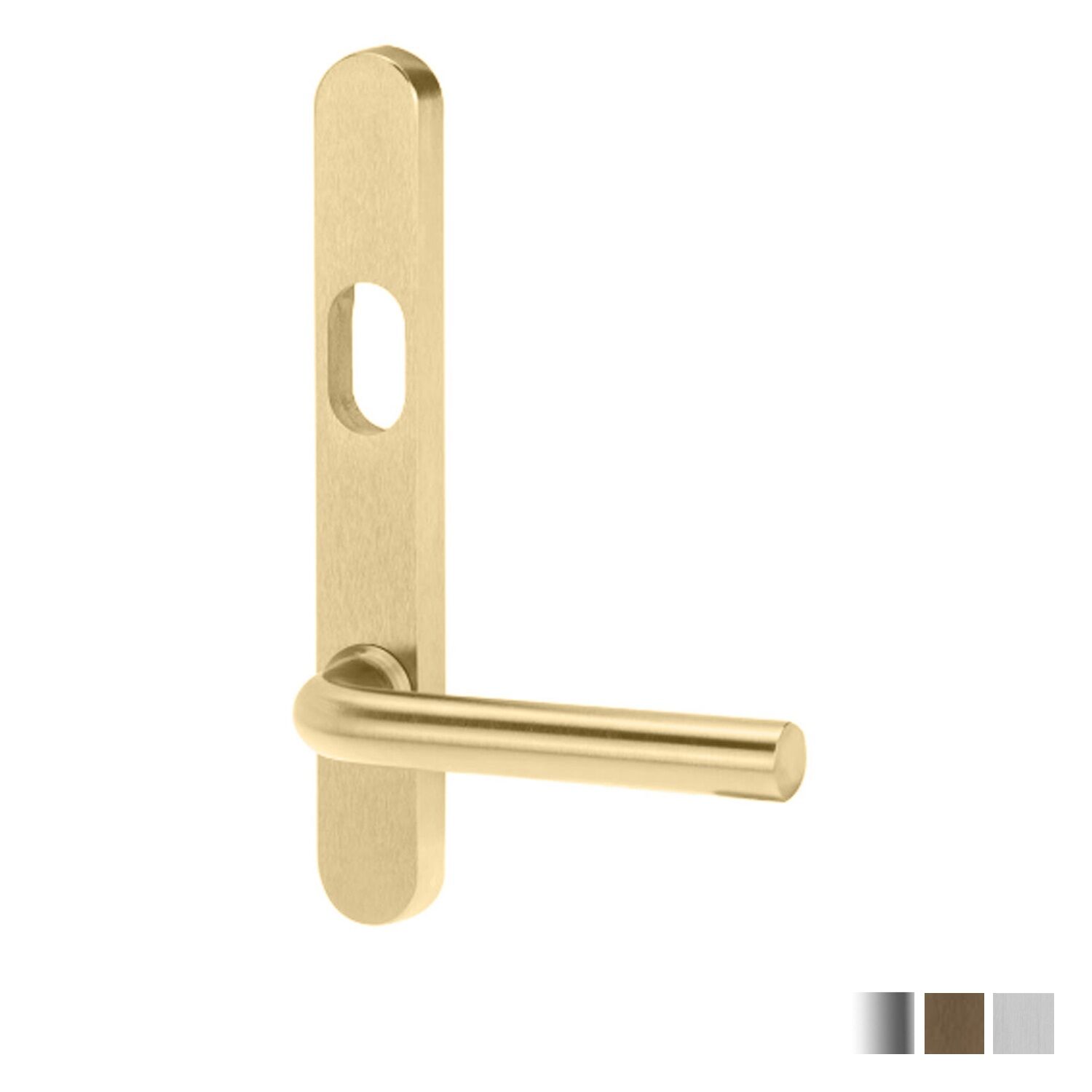

Lockwood 5601 Round End Plate with Cylinder Hole and 97 Lever
5601/97BU

Door Lever can be found on all types of doors including exterior doors of internal doors, residential and commercial buildings.

Door Lever Function - Lever design provides an easier grip when opening a door and it prevents your hand from slipping.

Features:

• Functional, yet elegant, the soft lines of this round-ended brass plate complement a wide range of levers which give you the flexibility to mix and match to suit the aesthetics of every application
• Lockwood Brass Plate furniture is made from the highest quality materials and is available in a comprehensive array of levers in a range of superb finishes that provide complete freedom of choice
• The Lockwood Brass Door Furniture range is the culmination of decades of experience in the design and manufacture of high quality door furniture
• Over the years the Lockwood brass door range has evolved as the product of choice for leading architects in commercial, institutional and industrial applications
• The timeless design of this tubular shaped lever signifies quality and strength
• The 5600 Series features a narrow rounded plate with bevelled edges suiting corporate, commercial and public spaces with high use requirements. Designed for use with Lockwood Synergy 3570 and Selector 3770 Series Mortice Locks

Specifications:

• Handle Type: Lever 97
• Door Thickness: 32mm to 45mm

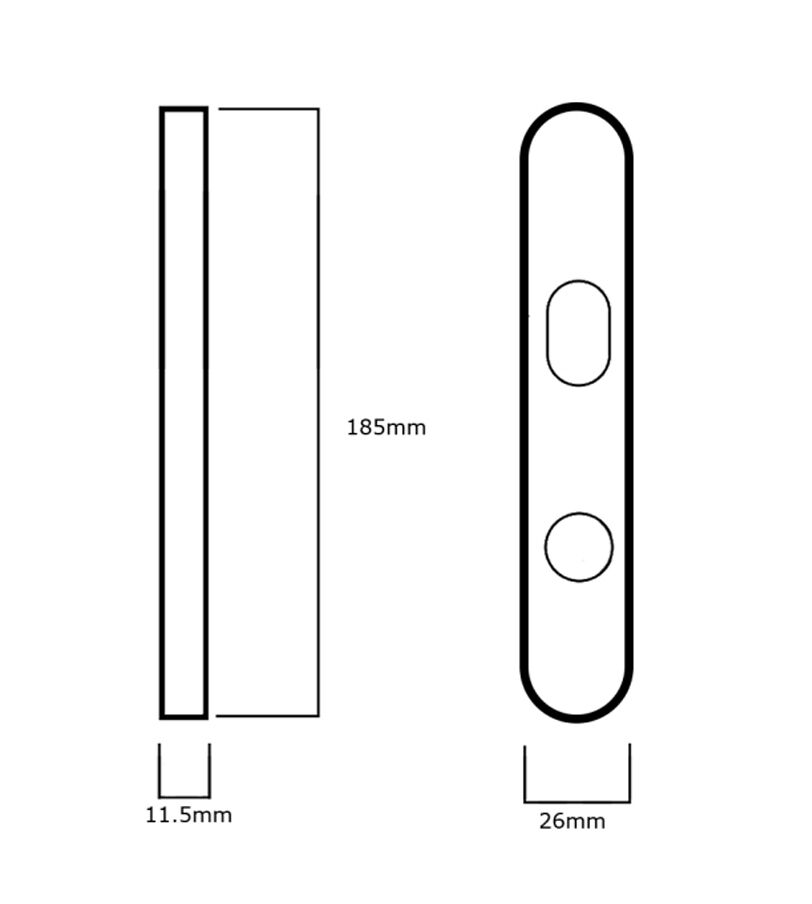

• Plate Dimension:
  • Height: 185mm
  • Width: 26mm
  • Depth: 11.5mm
• Lever Dimensions
  • Length: 120mm
  • Projection: 50.5mm
  • Finger clearance: 34.6mm
• Available Finish:
  • Chrome Plate
  • Oil Rubbed Bronze
  • Polished Brass Unlacquered
  • Satin Chrome

Standard and Compliance:

• Fire Rating: Successfully tested up to 4 hours with a fire rated Lockwood mortice lock on fire door assemblies (depending on type of doorset) in accordance with Australian Standard AS1905.1:2005, Fire Resistant Doorsets
• D8: Successfully tested to conform with Level D8 (500,000 cycles) under Australian Standard AS4145.2-2008, Locksets and hardware for doors and windows
• Disabled Compliant: meet the requirements of AS1428.1-2009, Design for access and mobility
