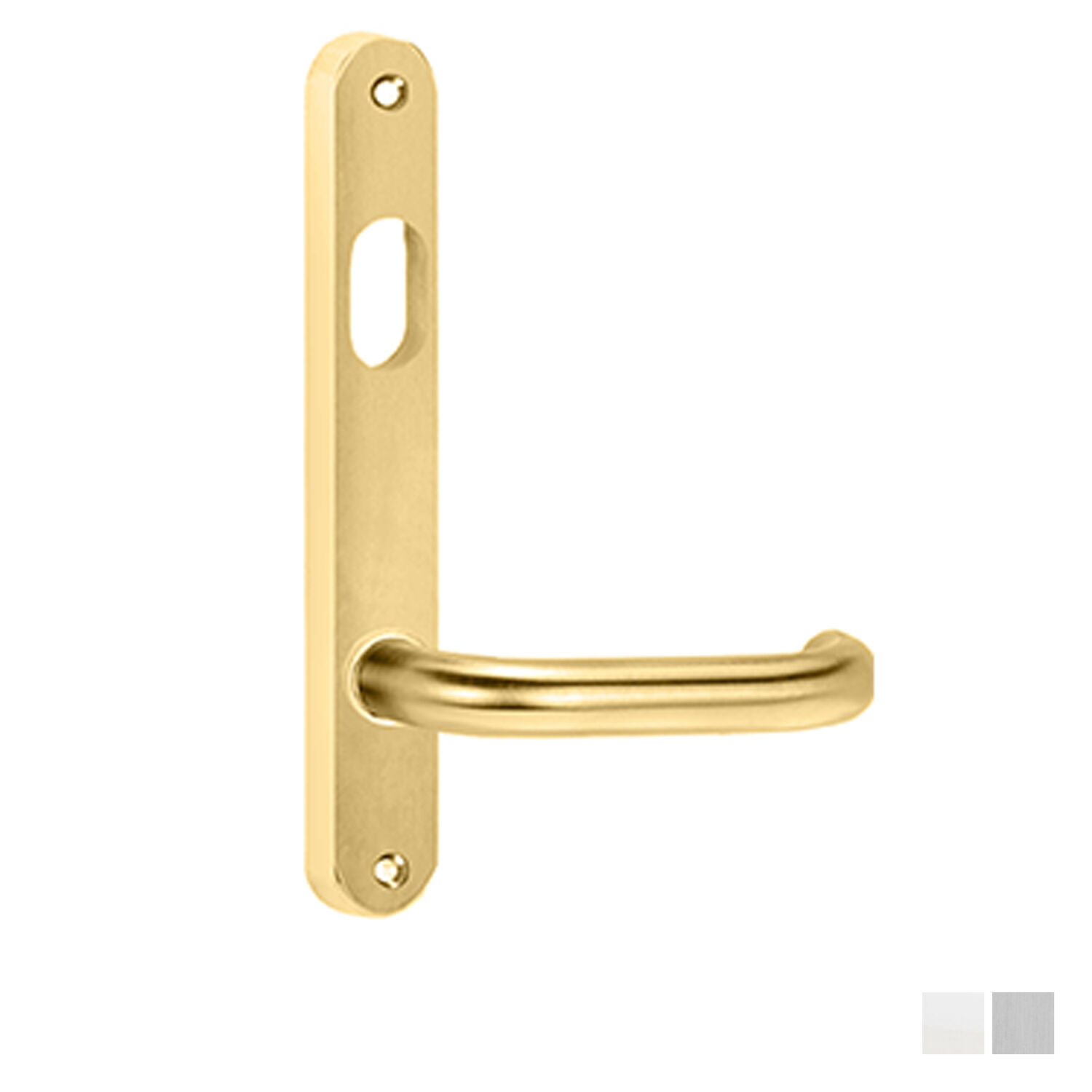

Lockwood 5701 Round End Plate with Cylinder Hole and 70 Lever

Door Lever can be found on all types of doors including exterior doors of internal doors, residential and commercial buildings.

Door Lever Function - Lever design provides an easier grip when opening a door and it prevents your hand from slipping.

Features:

• Functional, yet elegant, the soft lines of this round-ended brass plate complement a wide range of levers which give you the flexibility to mix and match to suit the aesthetics of every application
• Lockwood Brass Plate furniture is made from the highest quality materials and is available in a comprehensive array of levers in a range of superb finishes that provide complete freedom of choice
• The Lockwood Brass Door Furniture range is the culmination of decades of experience in the design and manufacture of high quality door furniture
• Over the years the Lockwood brass door range has evolved as the product of choice for leading architects in commercial, institutional and industrial applications
• The timeless design of this tubular shaped lever signifies quality and strengt
• Non-hande
• Plated finiah

Specifications:

• Handle Type: Lever 70
• Door Thickness: 32mm to 45mm
• Fixing centres: 160mm
• Cylinder pitch: 64mm

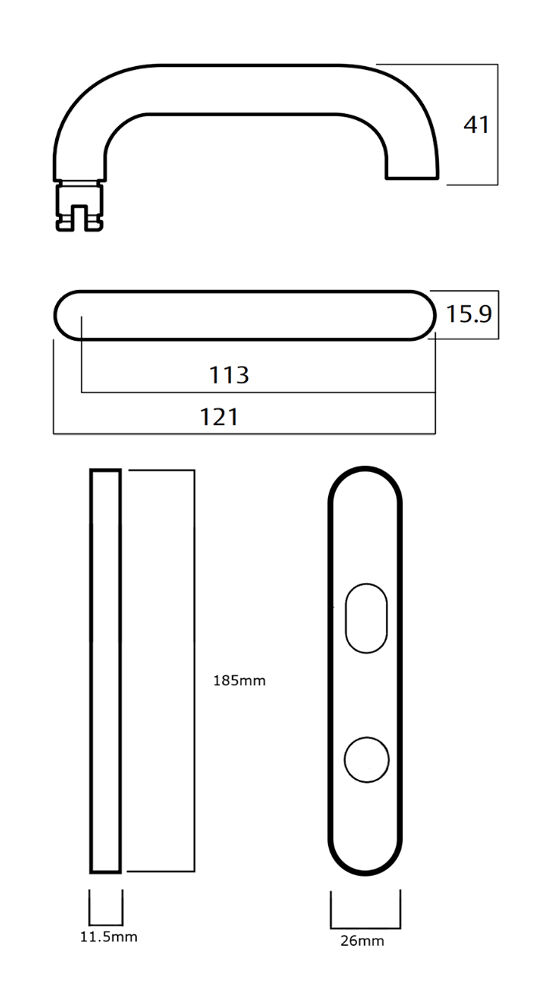

• Plate Dimensions
  • Height: 185mm
  • Width: 26mm
  • Depth: 11.5mm
• Lever Dimensions
  • Length: 121mm
  • Projection: 53mm
  • Finger clearance: 37mm
• Available Finish:
  • Chrome Plate
  • Polished Brass
  • Satin Chrome

Standard and Compliance:

• Fire Rating: ;Successfully tested up to 4 hours with a fire rated Lockwood mortice lock on fire door assemblies (depending on type of doorset) in accordance with Australian Standard AS1905.1:2005, Fire Resistant Doorsets
• D8: ;Successfully tested to conform with Level D8 (500,000 cycles) under Australian Standard AS4145.2-2008, Locksets and hardware for doors and windows
• Disabled Compliant: ; ;meet the requirements of AS1428.1-2009, Design for access and mobility
