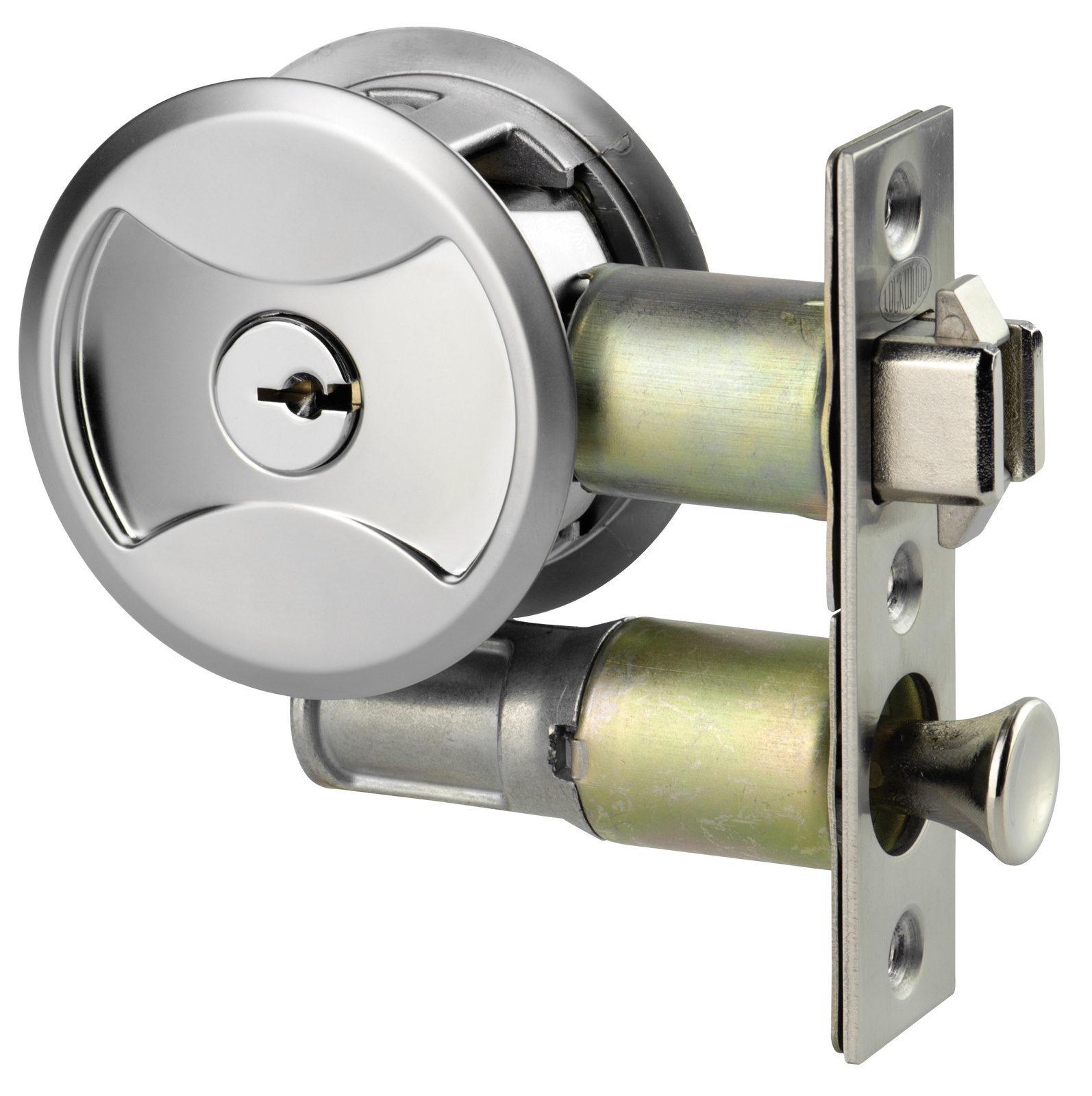

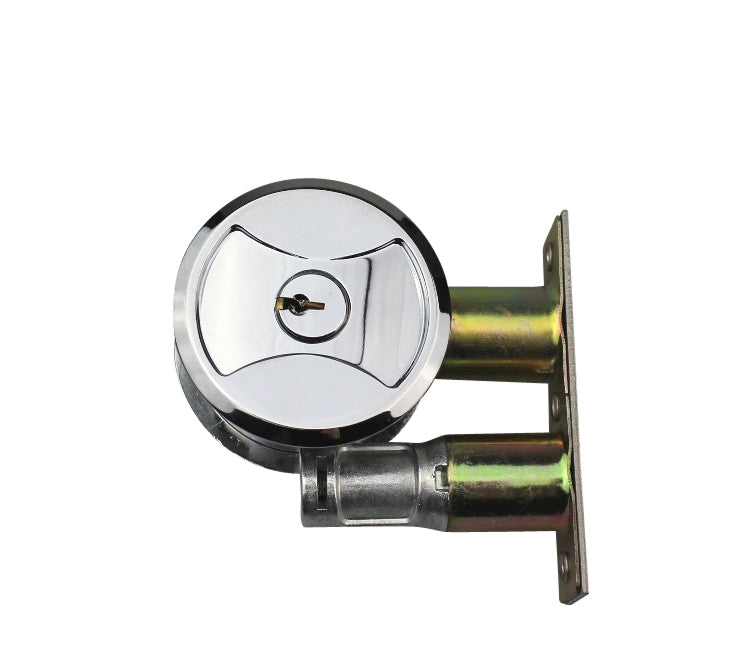

Lockwood Cavity Sliding Door Entrance Set
7444CP

• Lockwood's sliding door lock range is possibly the most innovative and aesthetically pleasing lock for a cavity sliding door in Australia. Combining elegance and ease of use, the Symmetry 7400 series is ideal for any home décor and security solution.
• Not only will the internal bathroom or lounge room sliding door have a contemporary look, but the interconnecting door from the garage can be fitted with a key lockable entrance-set for security.

7444 Entrance Set Function:

• Outside - Locked or unlocked by key

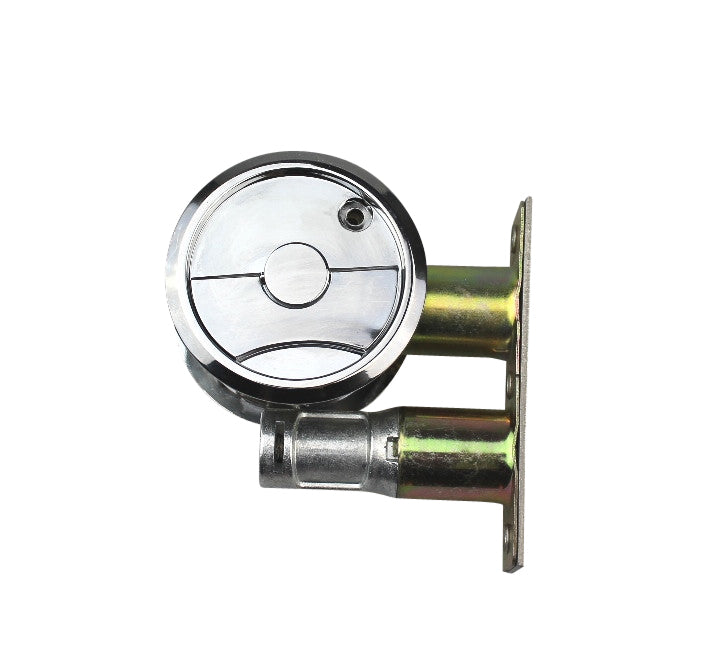

• Inside - Locked or unlocked by turn-plate

Key Features of the Lockwood Cavity Sliding Door Lock Range:

• Designed in Australia for specific Australian market conditions
• Easily fitted into a standard 54mm door preparation with a 60mm backset
• Fitted flush against the panel of the sliding door for full recess into the door cavity

Key lockable solution

• Key locking and turn function protects the secondary external application for an interconnecting sliding cavity door
• Australian standards compliance AS41452.2-2008: Tested to exceed 30,000 turn cycles withstanding 3 kN of pull force

Retractable door pull

• Revealed after extensive research, the sliding cavity door lock features an innovative retractable door pull which highly appeals to the discerning home owner

Specifications:

• Furniture Plate: Zinc Alloy
• Bolt: Nickel Plated Zinc (12.4mm projection)
• Bolt Beak: Stainless Steel
• Front End Plate: Stainless Steel
• Retractable Door Pull: Zinc Plated
• Strike Plate: Stainless Steel
• Strike Box: Zinc Plated
• Keys: Brass

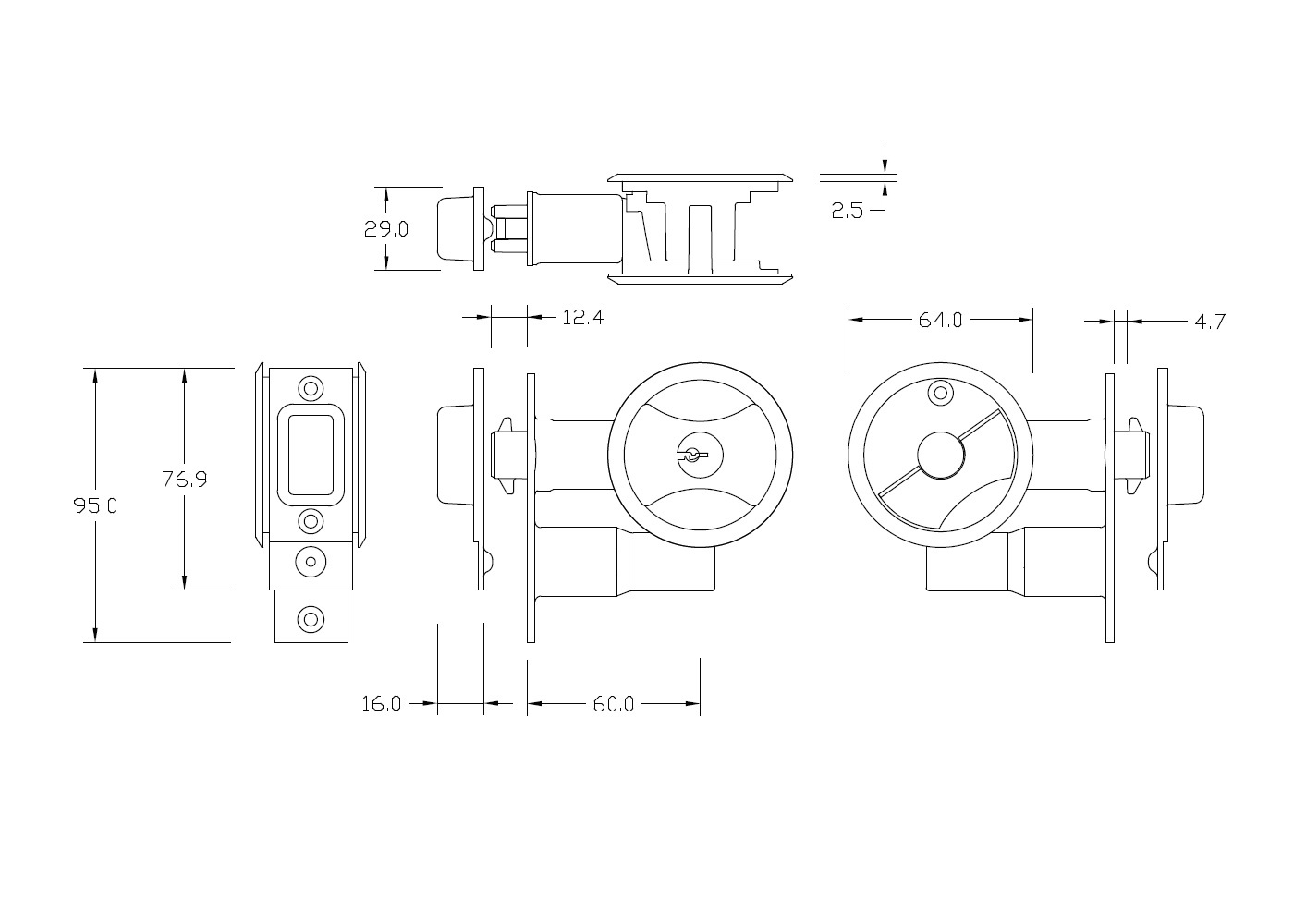

• Fitting/Fixing
  • Standard 54mm prep hole
  • Standard 60mm latch backset
  • Standard 25mm cross-drill
  • Retractable door pull
• Door Thickness: 32mm to 45mm for timber doors * Requires spacer ring (included)
• 5 Pin C4 keyway

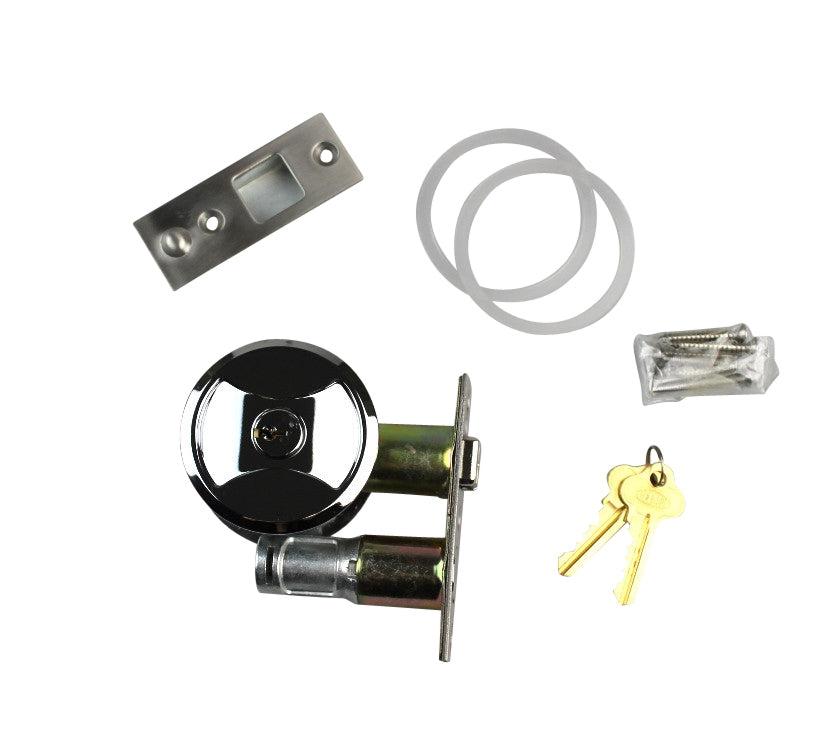

• Supplied individually keyed with two keys per Lock
• Finish: Bright Chrome

Standards

• Tested in accordance to Australian Standards AS4145.2-2008
