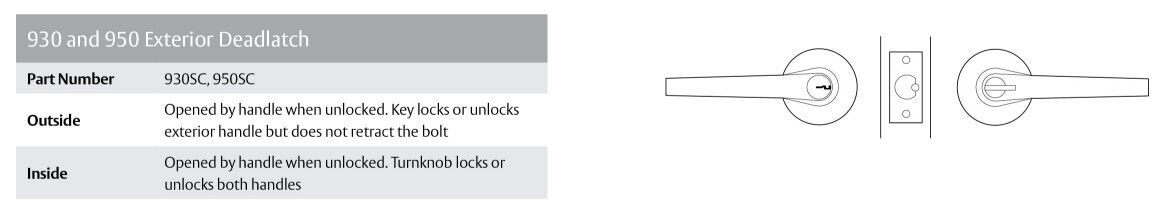

Lockwood 930 Series Entrance Lever Set
930SC

Entrance Lever commonly used in residential homes, apartments, schools, libraries, small commercial buildings.

Entrance Lever Function - Turn/push-button locking, pushing and turning button locks outside lever requiring use of key until button is manually unlocked Push-button locking: pushing button locks outside lever until unlocked by key or by turning inside lever.

• Produced from high purity zinc alloy and are available in a comprehensive range of functions.
• Designed as a non‑handed, easy‑to‑install lockset.
• Suitable for residential and semi-commercial applications including office partitioning.

Features:

• Commercial grade entrance leverset.
• Outside key locks and unlocks both levers.
• Inside snib locks and unlocks both levers.
• Compatible with most restricted keying systems.
• Baffle (shroud) prevents over-tightening when installing.
• 5 pin tumbler mechanism
• Brass cylinder and brass barrel
• Supplied individually keyed with two keys per lock
• 78,000 key combinations
• Key blank KB2015P

Specifications:

• Handing: Field adjustable handing
• Latch: 13mm projection
• Max. Lever / Knob Projection (distance does not include turnsnib): 51 mm
• Strike: 70mm x 28.5mm x 1.2mm
• Backset: 70mm
• Latch Face Plate: 57mm x 25mm
• Cylinder: LW4 profile
• Door handing: Field adjustable
• Rose: 65 mm
• Material: High purity zinc alloy
• Finish: Satin Chrome

Protection:

• Fire Rated: Successfully tested to 2 hours on fire door assemblies in accordance with Australian Standard AS1905.1:2005 Fire Resistant Doorsets.
