Lockwood Cavity Sliding Door Passage Set
7450CPDP

PLEASE NOTE: This item is Non-returnable. Upon placing your order, it CAN'T be cancelled or returned (unless faulty or damaged)

This is a non-stocked item which leaves the warehouse in 10 business days after payment is made.

Lockwood's sliding door lock range is possibly the most innovative and aesthetically pleasing lock for a cavity sliding door in Australia. Combining elegance and ease of use, the Symmetry 7400 series is ideal for any home décor and security solution.

Not only will the internal bathroom or lounge room sliding door have a contemporary look, but the interconnecting door from the garage can be fitted with a key lockable entrance-set for security.

Key Features of the Lockwood Cavity Sliding Door Lock Range:
Designed in Australia for specific Australian market conditions
Easily fitted into a standard 54mm door preparation with a 60mm backset
Fitted flush against the panel of the sliding door for full recess into the door cavity

Key lockable solution
Key locking and turn function protects the secondary external application for an interconnecting sliding cavity door
Australian standards compliance AS41452.2-2008: Tested to exceed 30,000 turn cycles withstanding 3 kN of pull force

Retractable door pull
Revealed after extensive research, the sliding cavity door lock features an innovative retractable door pull which highly appeals to the discerning home owner

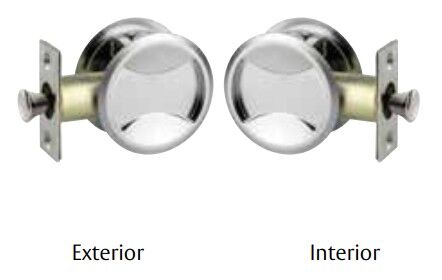

7450 Passage Set
Outside - Free to slide door at all times
Inside - Free to slide door at all times

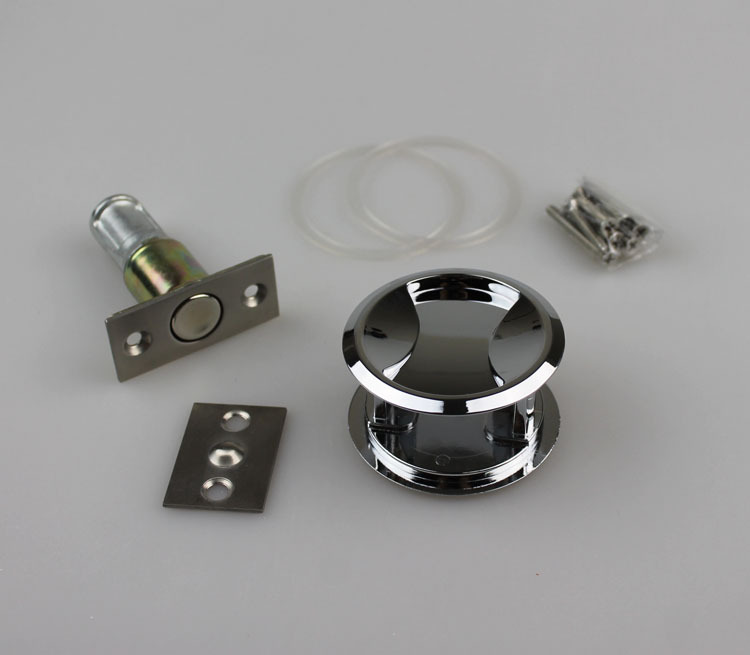

Materials

Furniture plate: Zinc Alloy
Bolt: Nickel Plated Zinc (12.4mm projection)
Bolt Beak: Stainless Steel
Front End Plate: Stainless Steel
Retractable Door Pull: Zinc Plated
Strike Plate: Stainless Steel
Strike Box: Zinc Plated
Keys: Brass

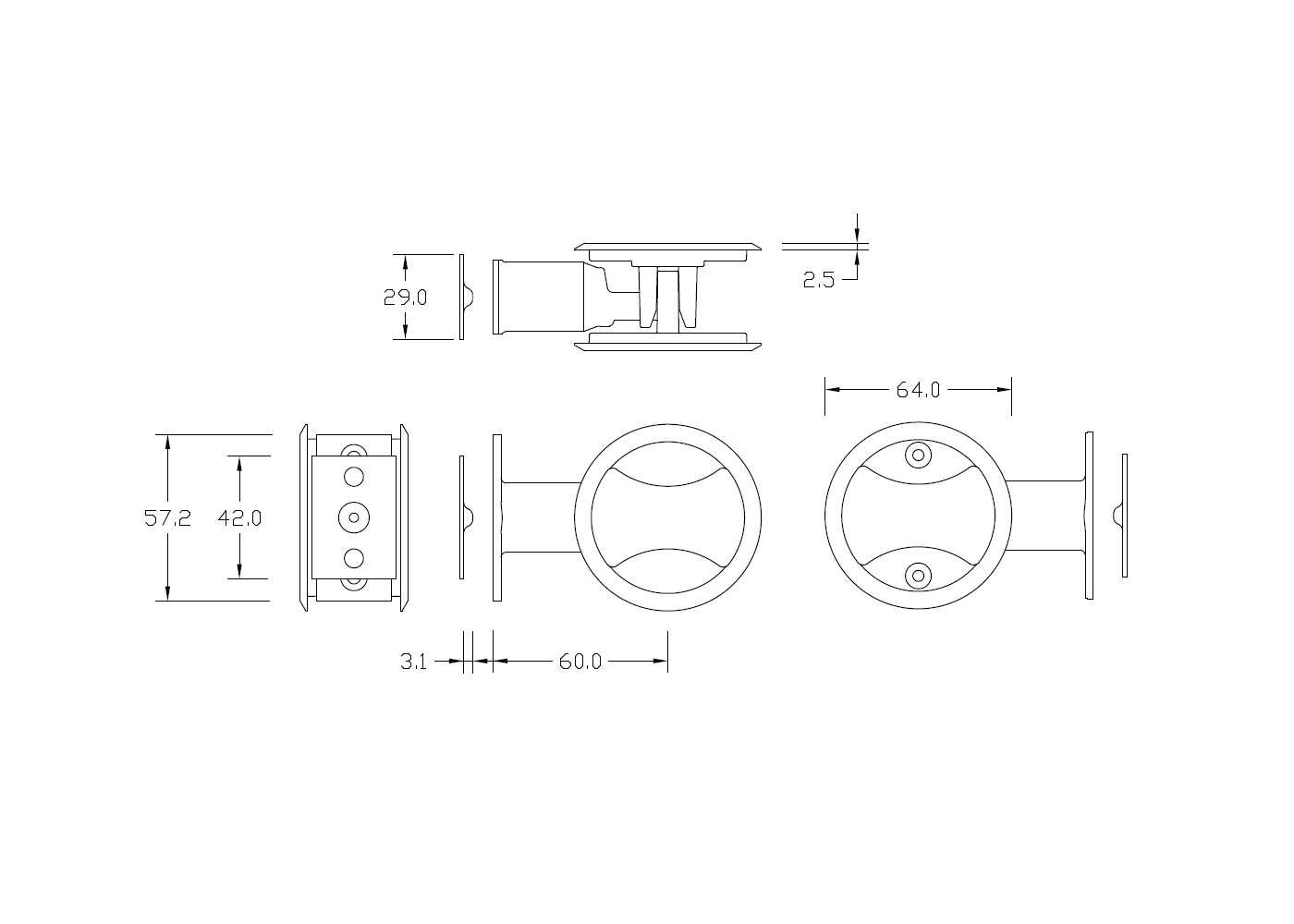

Fitting/Fixing
Standard 54mm prep hole
Standard 60mm latch backset
Standard 25mm cross-drill
Retractable door pull

Door Thickness
32* to 45mm for timber doors
* Requires spacer ring (included)

Standards
Tested in accordance to Australian Standards AS4145.2-2008

Finish
Bright Chrome CP
