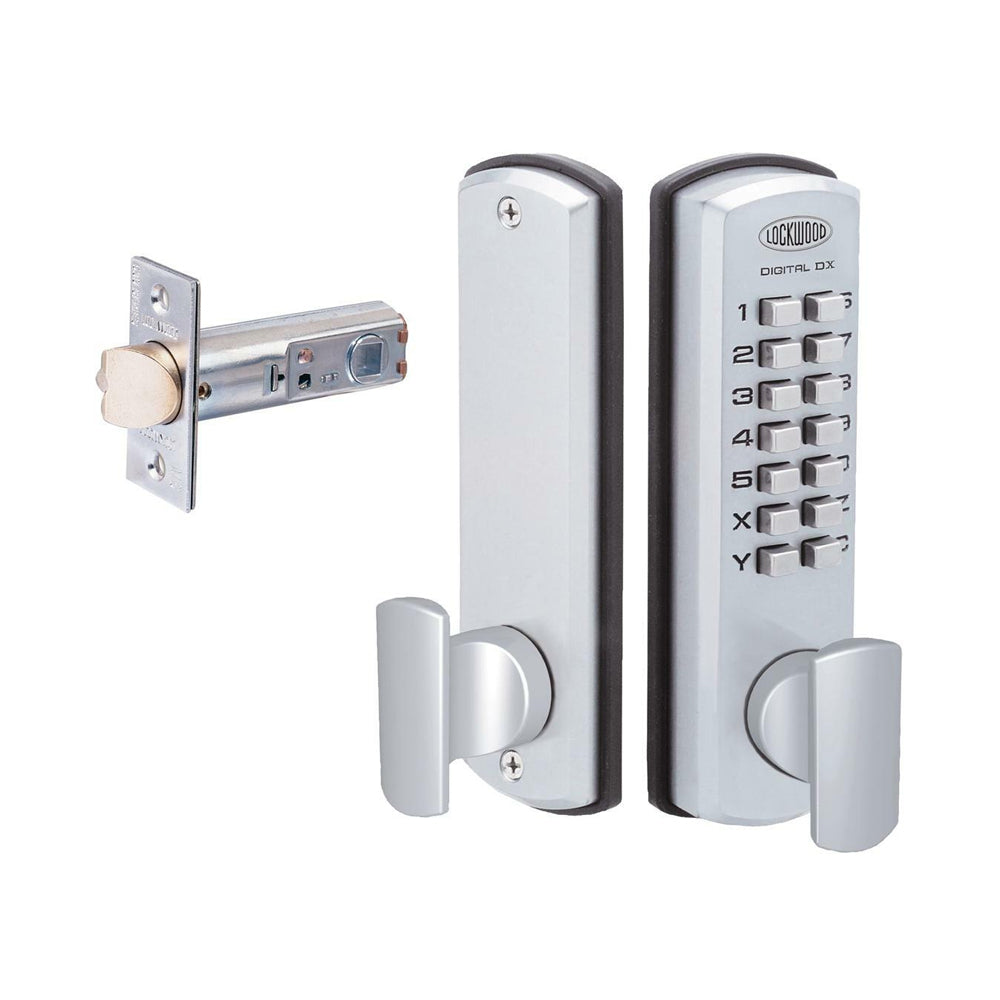

Lockwood Digital Door Lock Entrance Set
530DXSC

Digital Door Lock designed for medium duty applications.  Enables to control access in a wide variety of applications.

Digital Door Lock Function - The door can be unlocked by entering the correct code on the digital keypad (allowing keyless entry).

• Designed to control access into commercial areas, especially when frequent combination changes are needed to maintain security.

Features:

• Digital entrance set
• 4 to 6 digit code
• Clutching external knob
• Stainless steel springs
• Non-reversible tumblers
• Supplied display pack

Specifications:

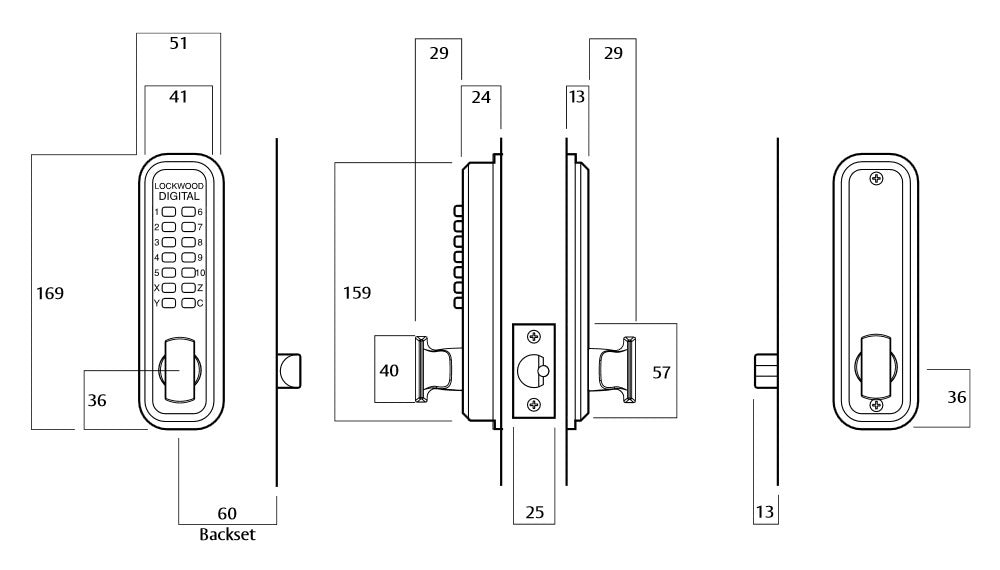

• Backset: 60mm (70mm & 127mm latch available to purchase separately)
• Door Thickness: 32mm - 45mm
• Latch Bolt: 13 mm projection
• Outside Function: Press the C button, enter the correct code, then turn the knob to unlock the door. Upon releasing the turn knob the code is automatically cancelled
• Inside Function: Opened by knob/lever at all times
• Finish: Satin Chrome

Protection:

• Fire Rated: Successfully tested to 2 hours on fire door assemblies in accordance with Australian Standard AS 1905.1 2005 Part 1, Fire Resistant Doorsets.
