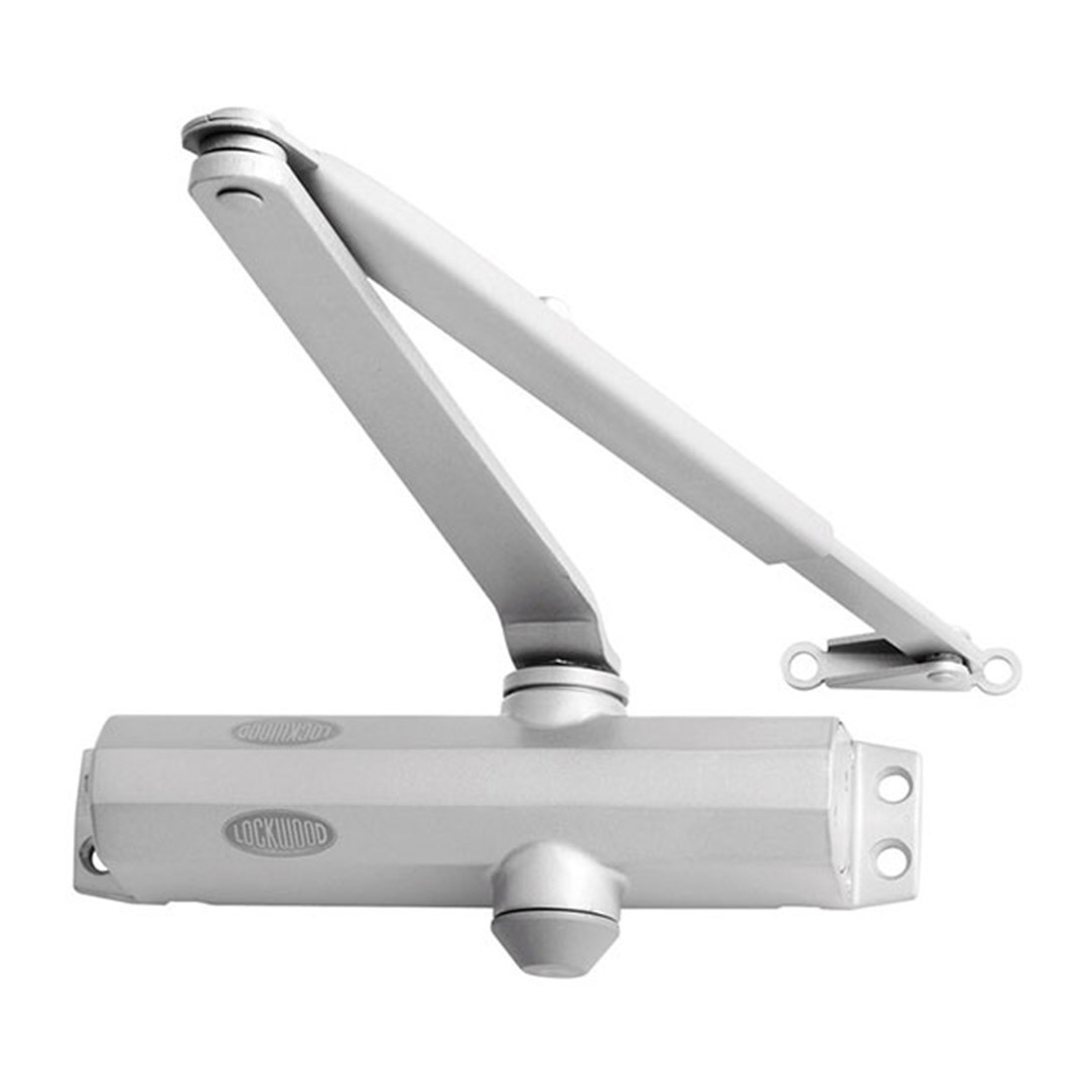

Lockwood Door Closer Fire Rated Back Check
2024BCSIL

The Lockwood range of economy door closers is particularly quick and easy to install on most applications, ideally suitable where cost is a high priority. Multi position mounting template enables adjustment on site to meet most conditions also low stock holding as one model will cover 3 power sizes. Suitable for doors up to 1100 mm in width.

Features:

• Backcheck cushions or slows the door prior to reaching final opening position.
• Non handed. Suitable for left or right hand doors.
• Independent valves control closing and latching speeds which can be readily adjusted on site when required.
• Approved on fire door assemblies up to 4 HR, in accordance with Australian Standards AS1905 Part 1 - Fire Resistant Doors 1984. Backcheck is required for all fire door applications.
• Hold open available in this series, please see our store.

Specifications:

• Mechanism: Rack and pinion design.
• Materials: High purity die cast aluminium housing with hardened steel rack and pinion mechanism.
• Finish: Silver baked enamel.

Power Selection Charts

• The power of the door closer is altered by adjusting the position of the door closer body on the mounting template.

Functions in Detail

• All products include parallel arm bracket; Multi strength mounting (one model covers size 2, 3, and 4); Parallel Arm Size 2 and 3; 4HR Fire Rating (backcheck version).
