Lockwood Palladium Long Plate Door Furniture w/ Aria Lever
PL4/85/27SP

The Palladium Series represents the highest standard in residential and semi-commercial door hardware and is brought to you through modern innovative designs, combined with quality manufacturing. A wide range of lever options is available to enable a common style throughout the home.

Features:

• Stylish range of contemporary non handed lever designs
• Range of available finishes.
• Solid metal lever escutcheon
• The Palladium Series mechanism incorporates a lever handle torsion spring and shuttle mechanism which provides a positive feel and increased product life
• All lever handles are reversible
• Suits 85 mm pitch mortice locksets
• Includes 7.6 mm square stepped spindle
• Available in trade pack
• Lockwood Palladium door furniture is supplied as a complete set, with both the internal and external plates.

Suitability
Residential and semi-commercial buildings

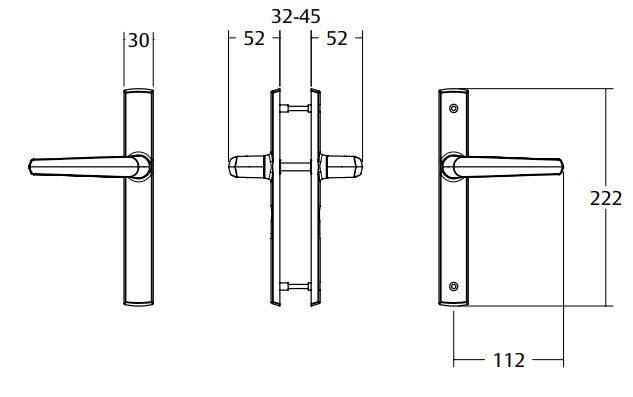

Dimensions
222 x 31 x 9mm

Handing
Easy, field selectable handing.

Materials
All plates and levers in the Palladium Series are constructed from solid zinc die-cast.

Fixing
Lockwood Palladium Series Door Furniture is a complete set, supplied with both the internal and external plates. Plates are designed to fit back to back to be fully concealed externally.

Door Thickness
Minimum 32mm - maximum 45mm door thickness.

Keying
Use with Euro profile cylinder.

Finishes
Satin Chrome Pearl SP

Lever
Aria #27
