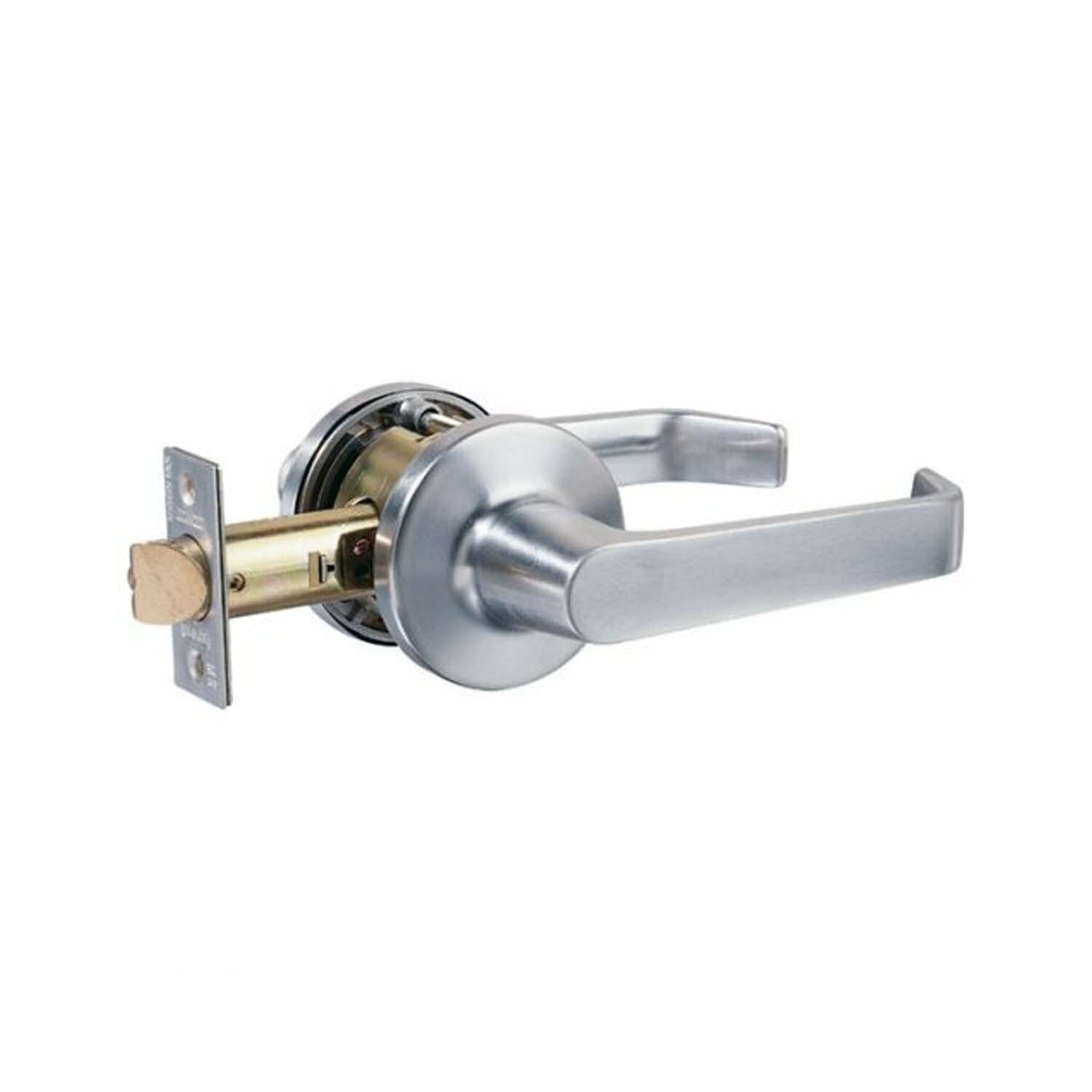

Lockwood 951 Series Passage Lever Set
951SC

PLEASE NOTE: This item is Non-returnable. Upon placing your order, it CAN'T be cancelled or returned (unless faulty or damaged)

This is a non-stocked item which leaves the warehouse in 10 business days after payment is made.

Passage door lever are ideal for interior hallways, closets and other rooms that don't need privacy locks.

Passage Function - Both levers free at all times.

• Suitable for residential and commercial applications including office partitioning.
• Designed as a non handed, easy to install lockset.

Features:

• Commercial grade passage leverset.
• Levers and roses made of high purity zinc alloy.
• Baffle (shroud) prevents over-tightening when installing.

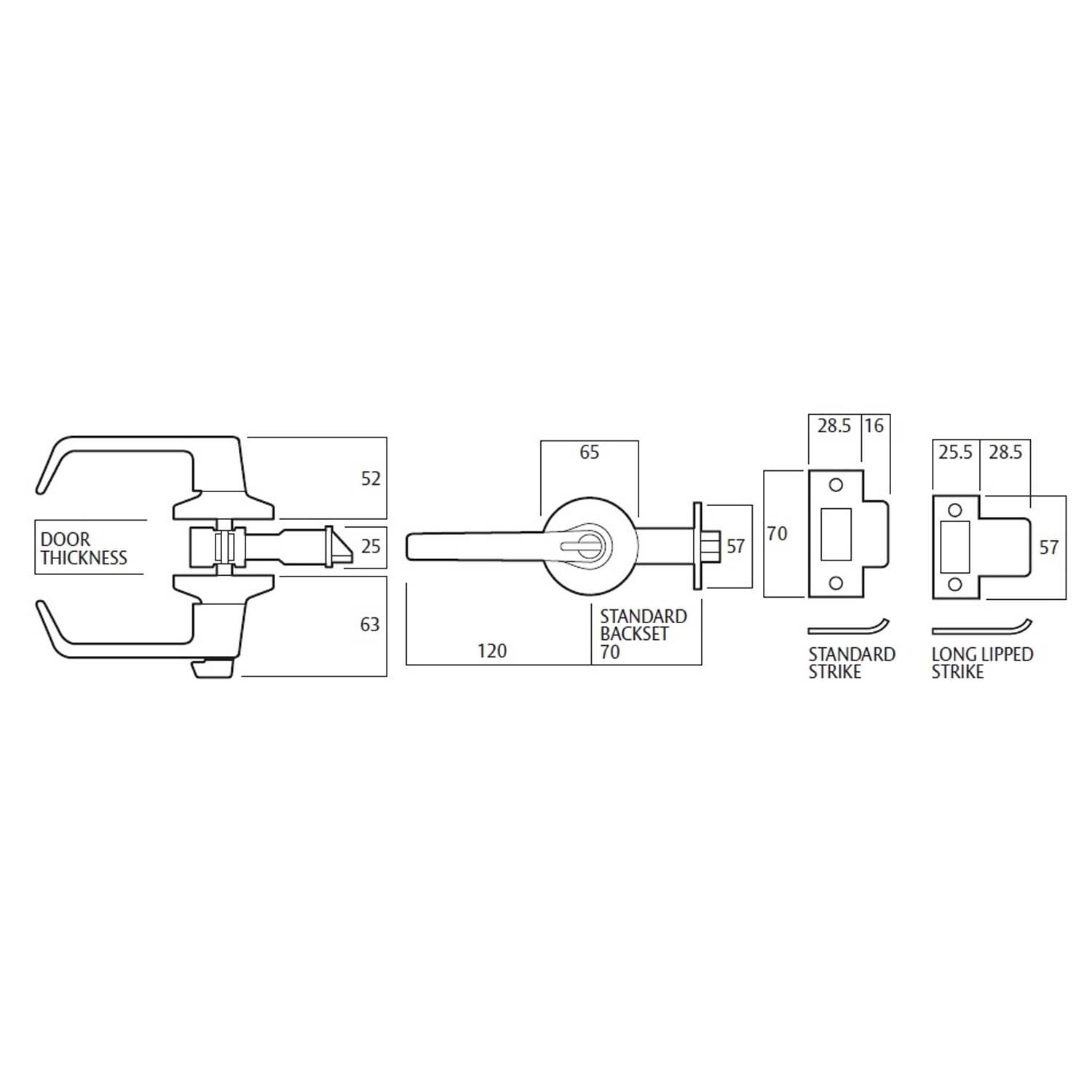

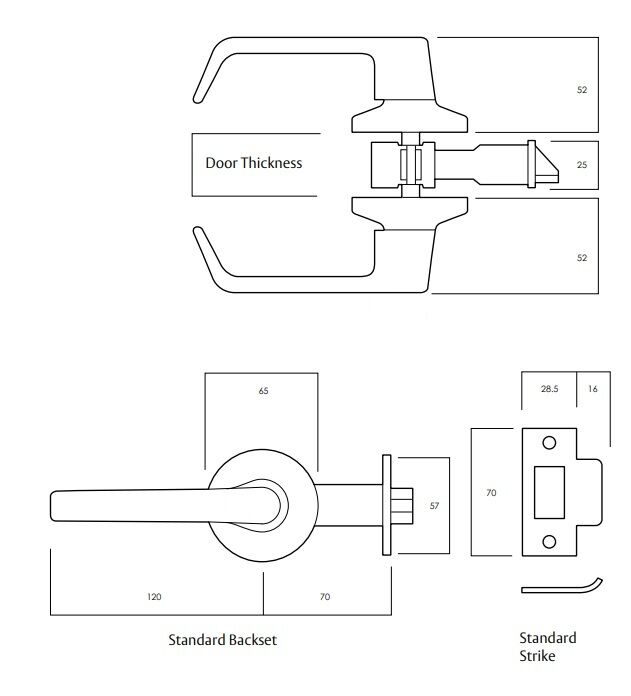

Specifications:

• Door thickness: 32-45mm
• Latch Projection: 13mm
• Rose Diameter: 65mm
• Backset: 70mm
• Max. Projection: 52mm
• Strike: 70mm x 28.5mm x 1.2mm
• Latch: 70mm backset
• Latch Face Plate: 57mm x 25mm
• Door Handing: Field adjustable
• Rose: 65mm
• Material: Zinc Alloy
• Finish: Satin Chrome

Protection:

• Fire Rated: Successfully tested to 2 hours on fire door assemblies in accordance with Australian Standard AS1905.1:2005 Fire Resistant Doorsets.
