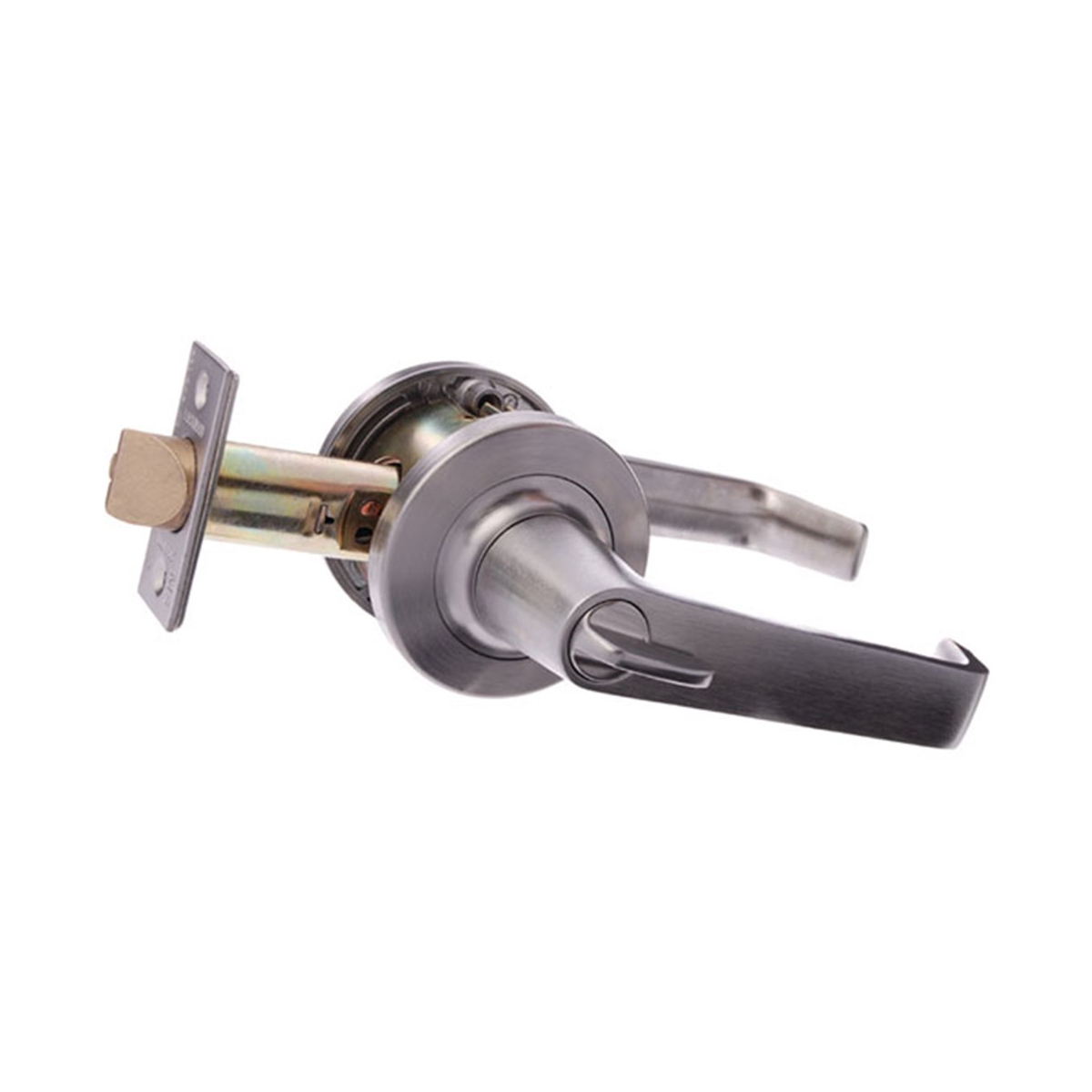

Lockwood Door Lever Privacy Set
952SC

PLEASE NOTE: This item is Non-returnable. Upon placing your order, it CAN'T be cancelled or returned (unless faulty or damaged)

This is a non-stocked item which leaves the warehouse in 10 business days after payment is made.

Privacy used for internal doors that require locking. (e.g. bathrooms, bedrooms, and any room where privacy is needed)

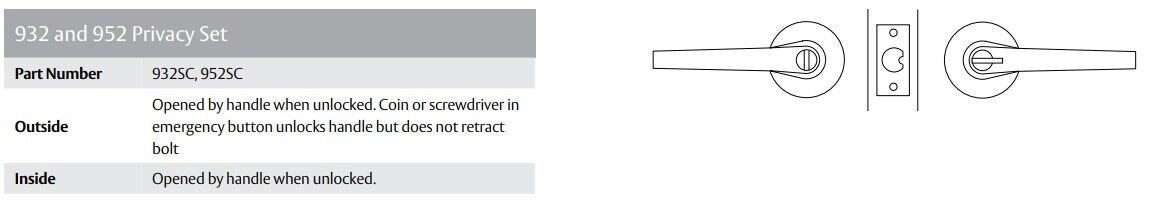

Privacy Function - can be locked by a button or a turn piece on the inside with no key function.

• Suitable for residential and commercial applications including office partitioning.
• Designed as a non handed, easy to install lockset.

Features:

• Commercial grade privacy leverset
• Outside emergency coin turn unlocks both levers
• Inside turn snib locks and unlocks both levers
• Levers and roses made of high purity zinc alloy
• Baffle (shroud) prevents over-tightening when installing
• Brass latch bolt with 13 mm projection

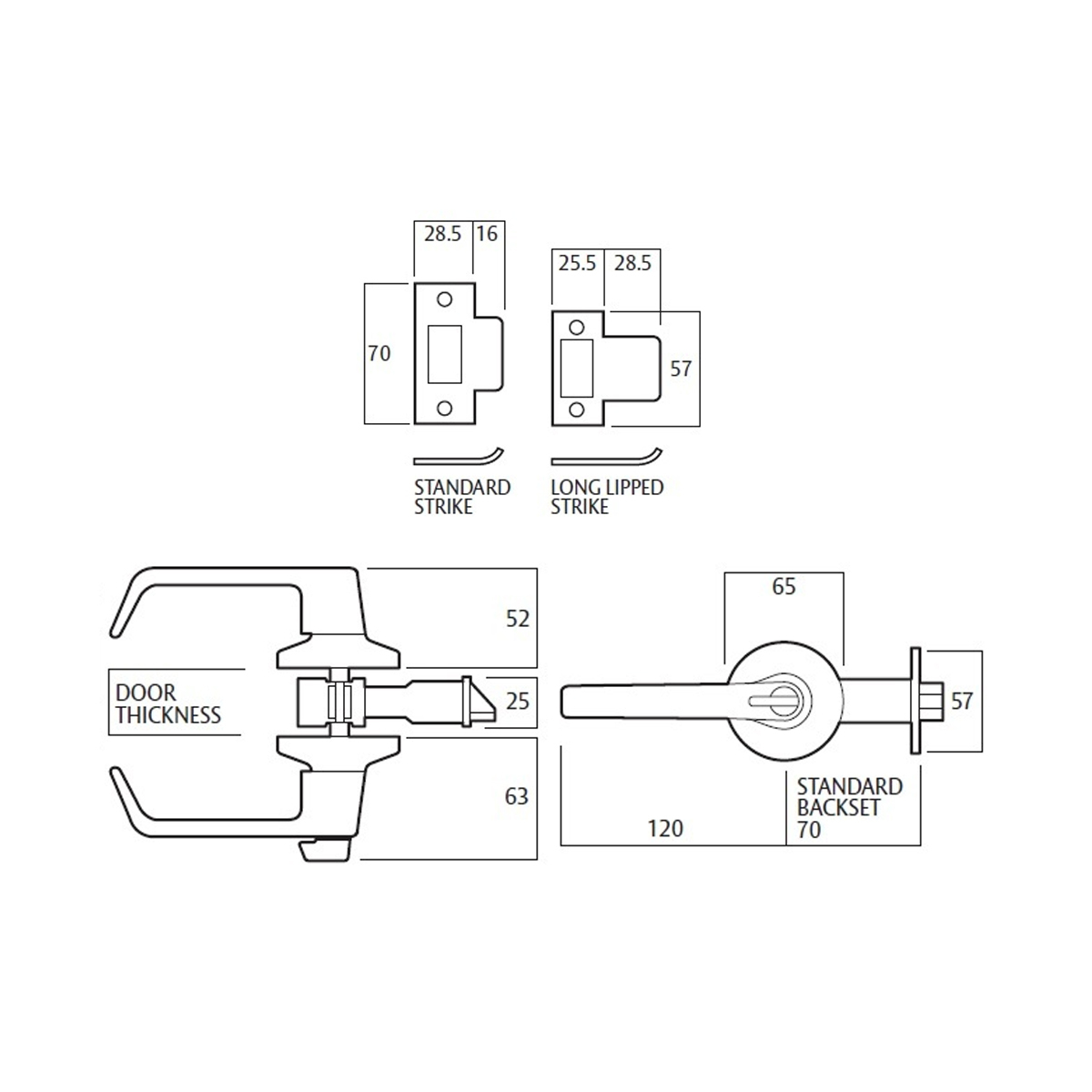

Specifications:

• Door thickness: 32-45mm
• Backset: 70mm
• Max. projection: 52mm
• Strike: 70mm x 28.5mm x 1.2mm
• Latch: 70mm backset
• Latch Face Plate: 57mm x 25mm
• Cylinder: LW4 profile
• Door Handing: Field adjustable
• Rose: 65mm
• Finish: Satin Chrome

Protection:

• Fire Rated: Successfully tested to 2 hours on fire door assemblies in accordance with Australian Standard AS1905.1:2005 Fire Resistant Doorsets.
