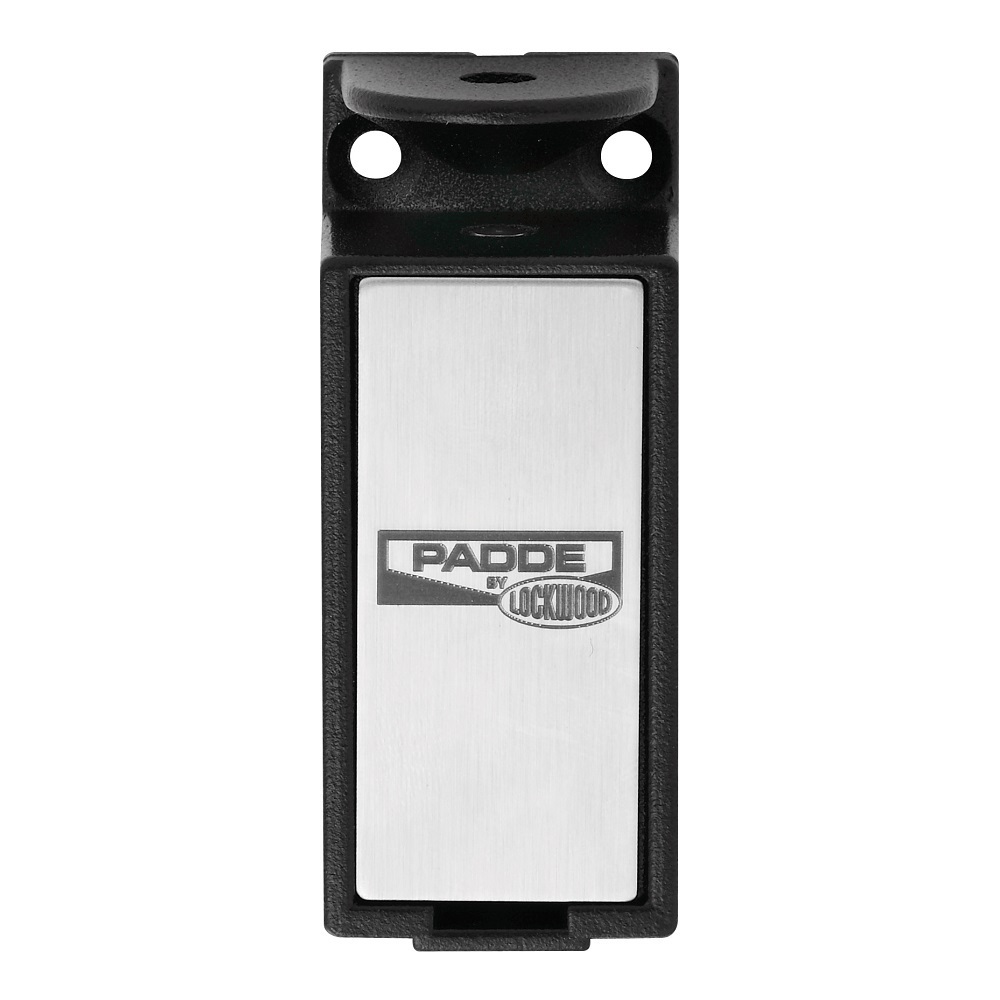

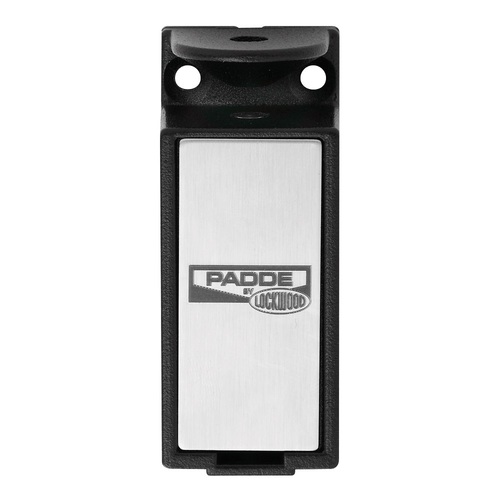

Lockwood EF934 Series Electric Strike
EL1101

PLEASE NOTE: This item is Non-returnable. Upon placing your order, it CAN'T be cancelled or returned (unless faulty or damaged)

This is a non-stocked item which leaves the warehouse in 10 business days after payment is made.

• The unique glass door strike is one of a kind offering selectable voltage between the 12 and 24 volts using a sliding switch: Easy, safe voltage selection is assured.
• Integrated TVS diode provides surge protection for direct and alternating currents.
• The glass doors strikes awaits in the open position to encapsulate the door upon closure.
• The built-in shock absorbing function of the glass door strike ensures a gentle closing and locking action.

Features:

• Vertical and horizontal mounting possible
• 12 to 24Vdc field selectable
• Adjustment to glass leaf thickness 9 - 12mm
• Use on single or pairs (requires two locks) of glass doors with frames around the opening
• Non-handed
• Built in Diode

Applications:

• Glass door sets
  Open in/open out doors
  Suitable for use with all access control systems

Standards and Compliance:

• CE Approved
• C-Tick Certified

Specifications:

• Voltage: 12-24Vdc field selectable
• Current: 210mA @12Vdc - 105mA @24Vdc
• Monitoring: None
• Holding Force: 375kg Static Strength Rating
• Environment: Operational temperature range -15 Degrees to +40 Degrees
• Body: High purity Zinc alloy construction
• Keeper: Brass
• Glass Door Thickness: 9mm - 12mm

Specification Statement:

• The EF 934 glass door strike must have selectable voltage between the 12 - 24 volts using a simple sliding switch. It must have integrated TVS diodes for surge protection. It must also have built-in shock absorbing function ensuring gentle closing and locking actions. It must operate in both vertical and horizontal positions, and be adjustable for glass doors from 9 -12mm.
