Lockwood Fixed Pin Hinge **Polished Stainless**
LW10075FPPSS

Butt Hinge is used to mount and operate doors on commercial properties and residential homes.

Butt Hinge Function - a form of surface mount hinge that fits on top of the door's surface and does not require mortising or recessed installation.

Features:

  • Designed to provide an effective solution to hanging doors where there is a need for high grade, architectural quality hinges
  • Suitable for use on aluminium or steel glazed doors and solid core timber door.

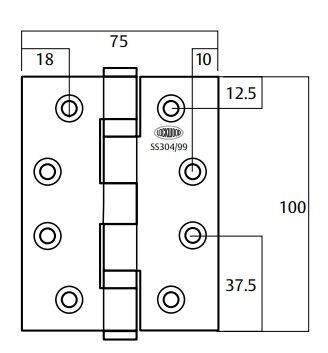

Specifications:

  • Maximum Adjusted Door Weight: 60Kg
  • Type: Fixed Pin Butt Hinge
  • Length: 100mm
  • Width: 75mm
  • Thickness: 2.5mm
  • Finish: Polished Stainless Steel
  • Material: Stainless Steel

Compliance:

  • Fire Rated:  Successfully tested up to four hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS 1905.1-2005, Part 1: Fire Resistant Doorsets
SKU ASSLW10075FPPSS
Barcode # 9311847801141
Brand Lockwood
