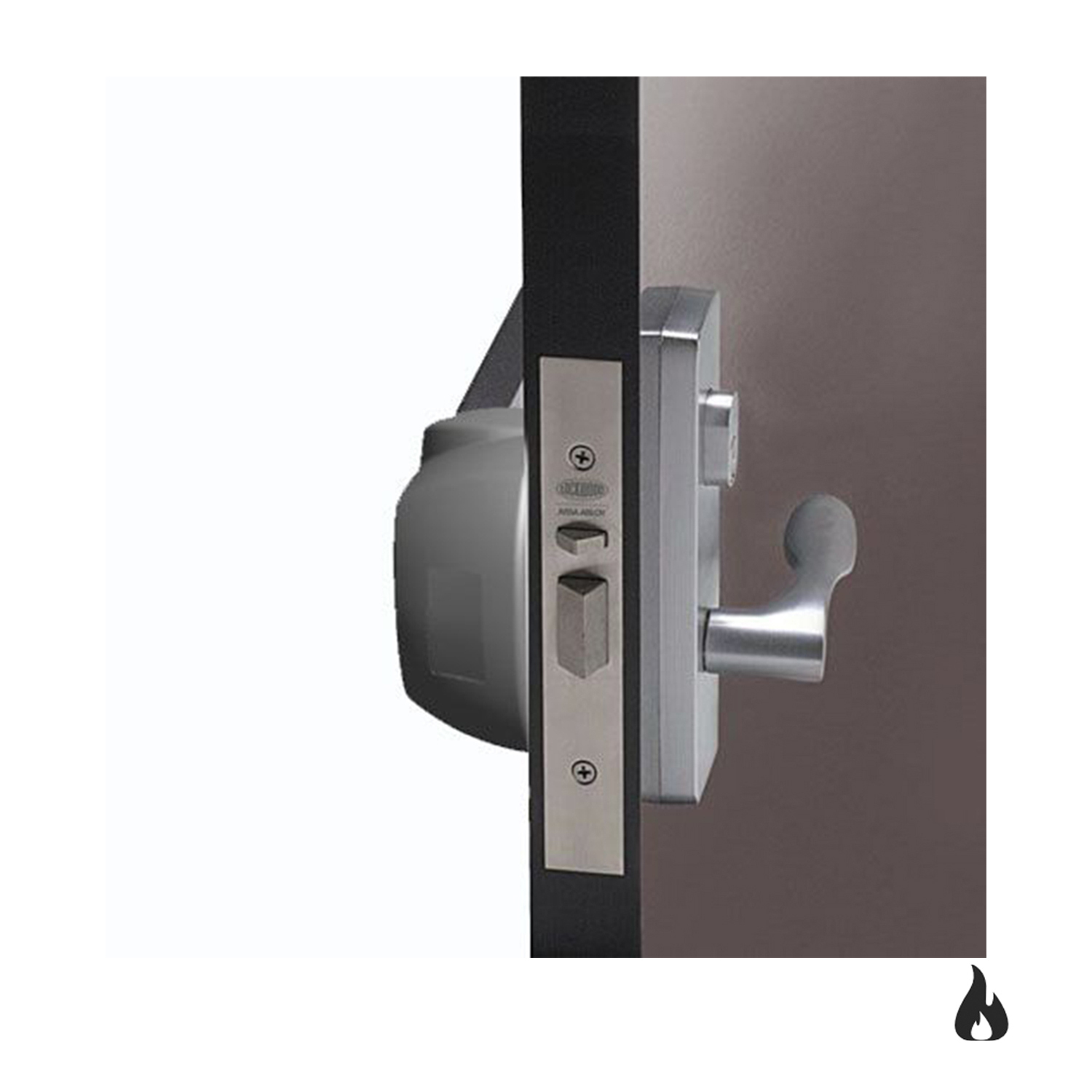

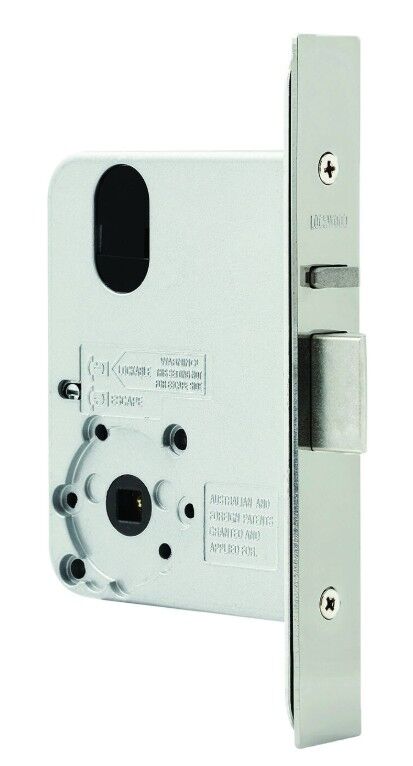

Lockwood Fluid Exit Device Mortice Lock
FE112/0MSIL

Panic Exit Device is used on doors in public buildings to provide a quick and easy means of exiting a building in the event of an emergency, such as a fire or other life-threatening situations.

Panic Exit Device Function - Operated by a horizontal push bar, which when pushed in a downward arc withdraws either the bolts or latch, releasing the door for immediate escape in the event of an emergency.

Features:

• Includes panic bar and mortice lock (external handle ordered separetely)
• Handing is field reversible
• Compatible with 570 Cylinder type and the ability to adapt to most master key systems.
• Provides for the fundamental means of escape whilst offering a completely unique locking mechanism and design aesthetic

Specifications:

• Length: 1200mm
• Backset: 60mm
• Door Thickness: 32mm - 50mm
• Width: 117mm
• Projection: 87mm
• Finish: Silver

Standards and Compliance:

• Successfully tested on fire door assemblies in accordance with Australian Standard AS1905.1-2005. Fire Resistant Doorsets.
