Lockwood Furniture Square End Plate With 70 Lever 4805/70

PLEASE NOTE: This item is Non-returnable. Upon placing your order, it CAN'T be cancelled or returned (unless faulty or damaged)

This is a non-stocked item which leaves the warehouse in 10 business days after payment is made.

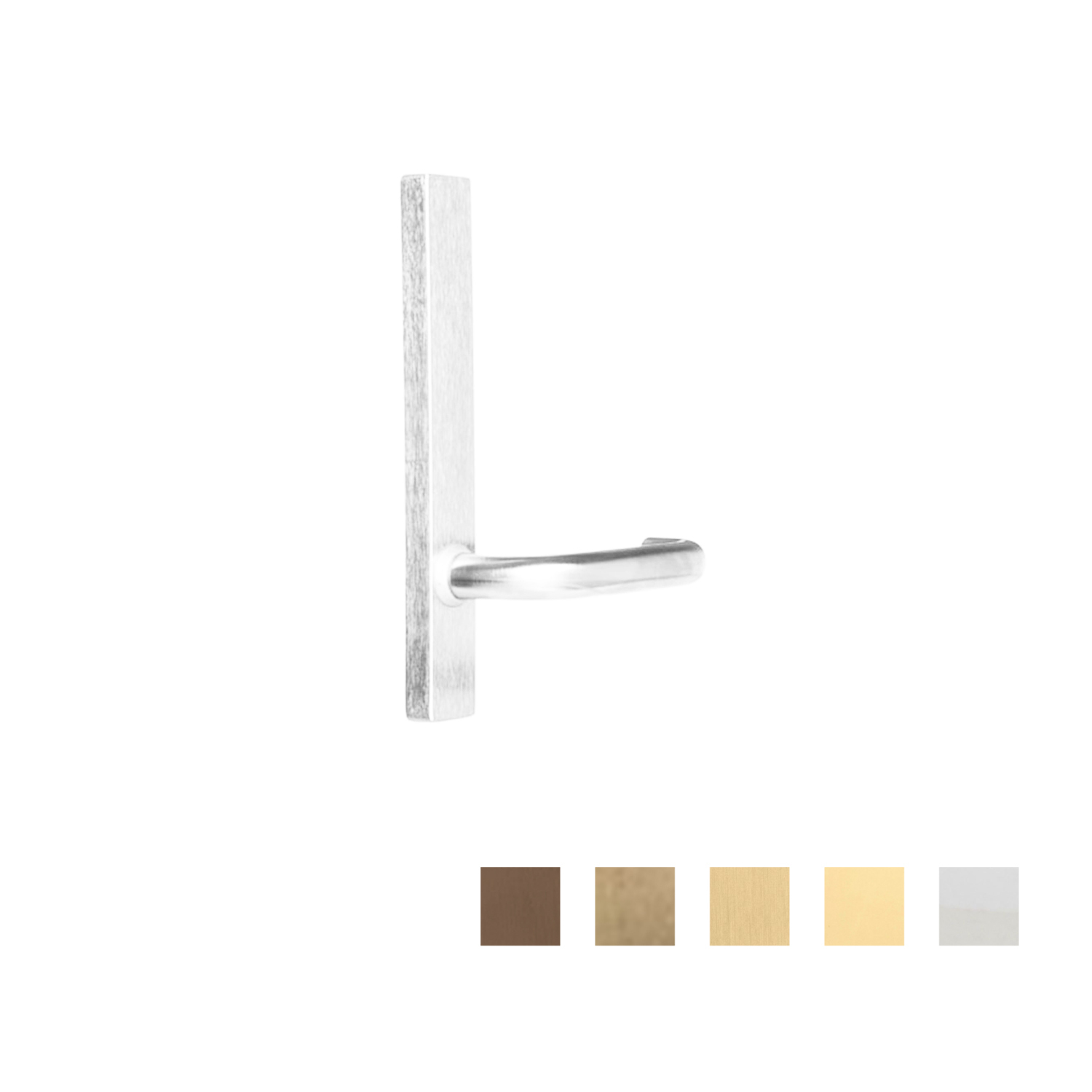

Square End Plate a classic rectangular plate with bevelled edges. Suits corporate, commercial and public spaces with high use requirements.

Square End Plate Function - external plates designed to fit back to back. If outside plate is specified with concealed fixing, then the inside plate must be visible fixed.

Features:

  • Designed for use with Lockwood 3580 series locks
  • Narrow stile exterior square end plate
  • Plain plate and 70 series tubular lever
  • Concealed fixing
  • Plates are designed to fit back to back
  • External plates supplied with fixing screws
  • Disabled access AS1428.1 compliant lever

Specifications:

  • Material: Brass
  • Plate Type: Square End

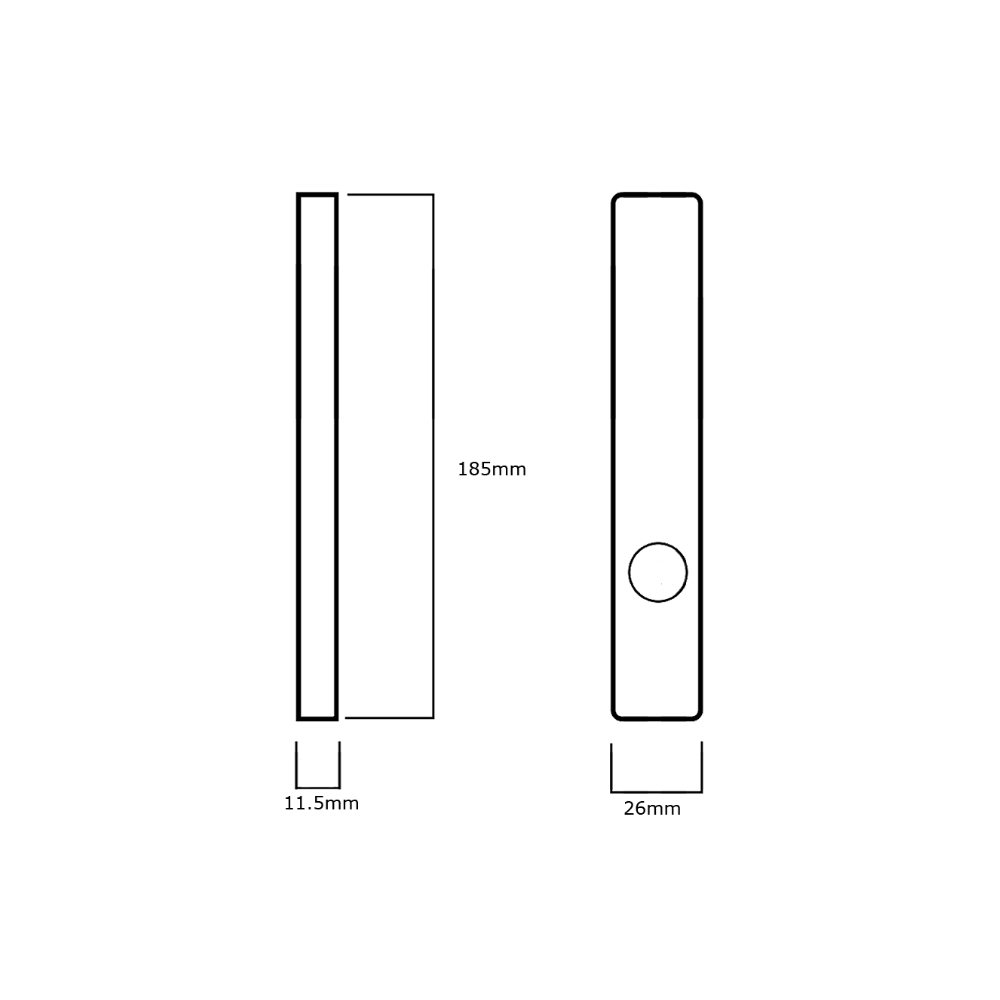

  • Plate Size: 185mm x 26mm x 11.5mm
  • Door Thickness: 32mm to 50mm
  • Screw Fixing Centers: 160mm
  • Available Finish:
    • Aged Brass
    • Chrome Plate
    • Oil Rubbed Bronze
    • Polished Brass
    • Satin Brass
    • Satin Chrome
SKU ASS480570_
Brand Lockwood
