Lockwood Paradigm Double Cylinder Deadbolt
005/B2SPDP

Double Cylinder Deadbolt is designed to offer a high-security level commonly used in domestic and architectural applications.

Double Cylinder Deadbolt Function - A key will be required to turn the lock on the outside. On the inside, a key can be used when locked or the turn knob when unlocked

  • Designed in Australia, the Paradigm 005 Deadbolt range represents the pinnacle in deadbolt security products.
  • Incorporating innovative safety features including Safety Release, LockAlert, and DualSelect, the Paradigm range is ideal for residential and architectural applications.

Features:

  • Safety Release automatically unlocks the internal knob upon key entry from outside
  • LockAlert indicator shows lock status at a glance
  • Multi-mode slimline deadbolt providing safety, use, security, and convenience
  • Simple to High-security
  • Highcut-resistant resistant stainless steel bolt
  • Box strike with cross-grain doorframe strengthening screw
  • 5-pin tumbler mechanism. Brass cylinder and brass barrel

Specifications:

  • SafetyRelease: Yes
  • Door Thickness Range: 32mm to 48mm
  • Residential: Yes
  • Compatible with Restricted Keying: Yes
  • DualSelect: Yes
  • Number of Cylinders: 2
  • Bolt / Latch Projection: 15mm
  • Fixing Type: Concealed
  • Rose Design: Square
  • Door Type: Hinged
  • Kinetic Defence: Yes
  • LockAlert: Yes
  • Bolt Material: Stainless Steel

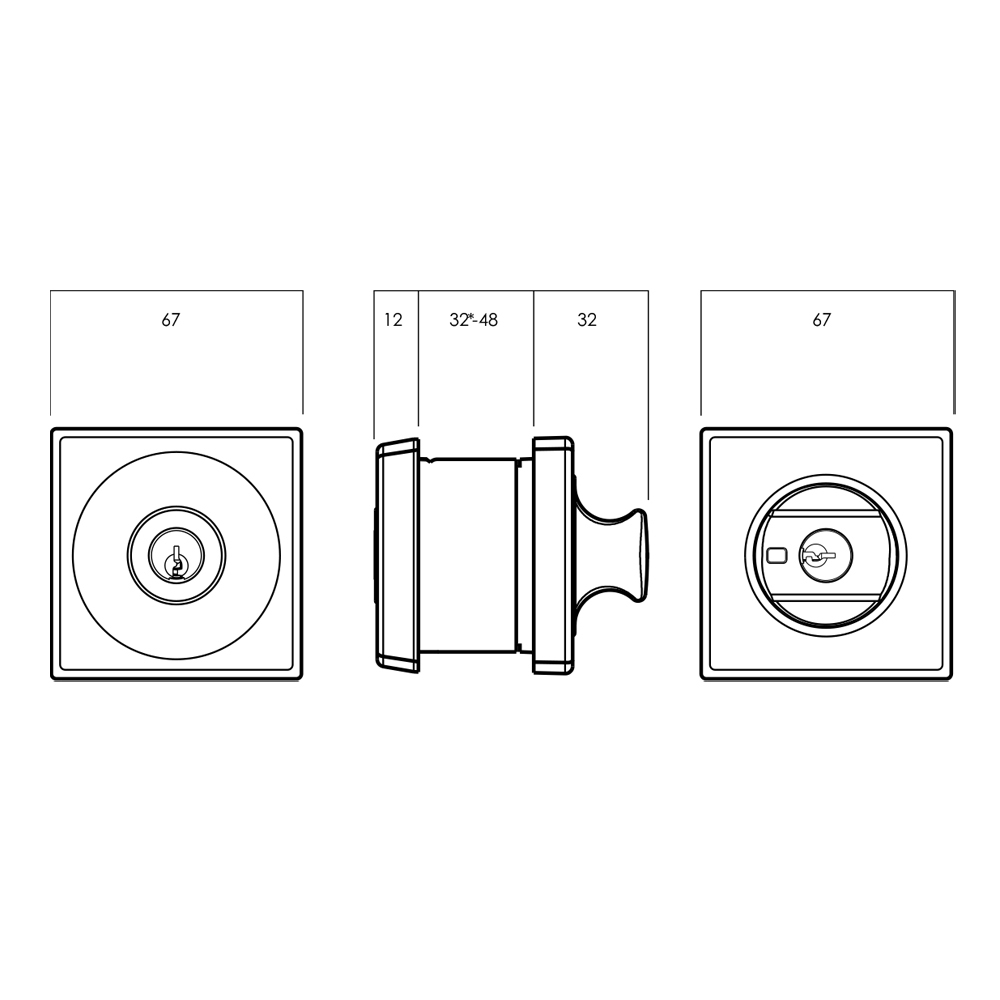

  • Rose Dimension: 67mm x 67mm
  • Bolt Holdback: Yes
  • Door Frame Strengthener: Yes
  • Bolt Type / Function: Deadbolt
  • Keying: Supplied individually keyed with two keys per lock, 78,000 key combinations, Key blank KB2015P
  • Handing: Reversible
  • Backset: 60mm to 70mm (adjustable stainless steel bolt)
  • Material: High Purity Zinc Alloy
  • Finish: Satin Chrome Pearl

Standard and Compliance:

  • SL8 (Security) Australian Lock Standard (AS4145.2 - 2008)
  • D8 (Durability) Australian Lock Standard (AS4145.2 - 2008)
  • C6 (Corrosion) Australian Lock Standard AS4145.2 - 2008)
  • K5 (Key Security) Australian Lock Standard AS4145.2 - 2008)
SKU ASS005B2SPDP
Barcode # 9311847084568
Brand Lockwood
