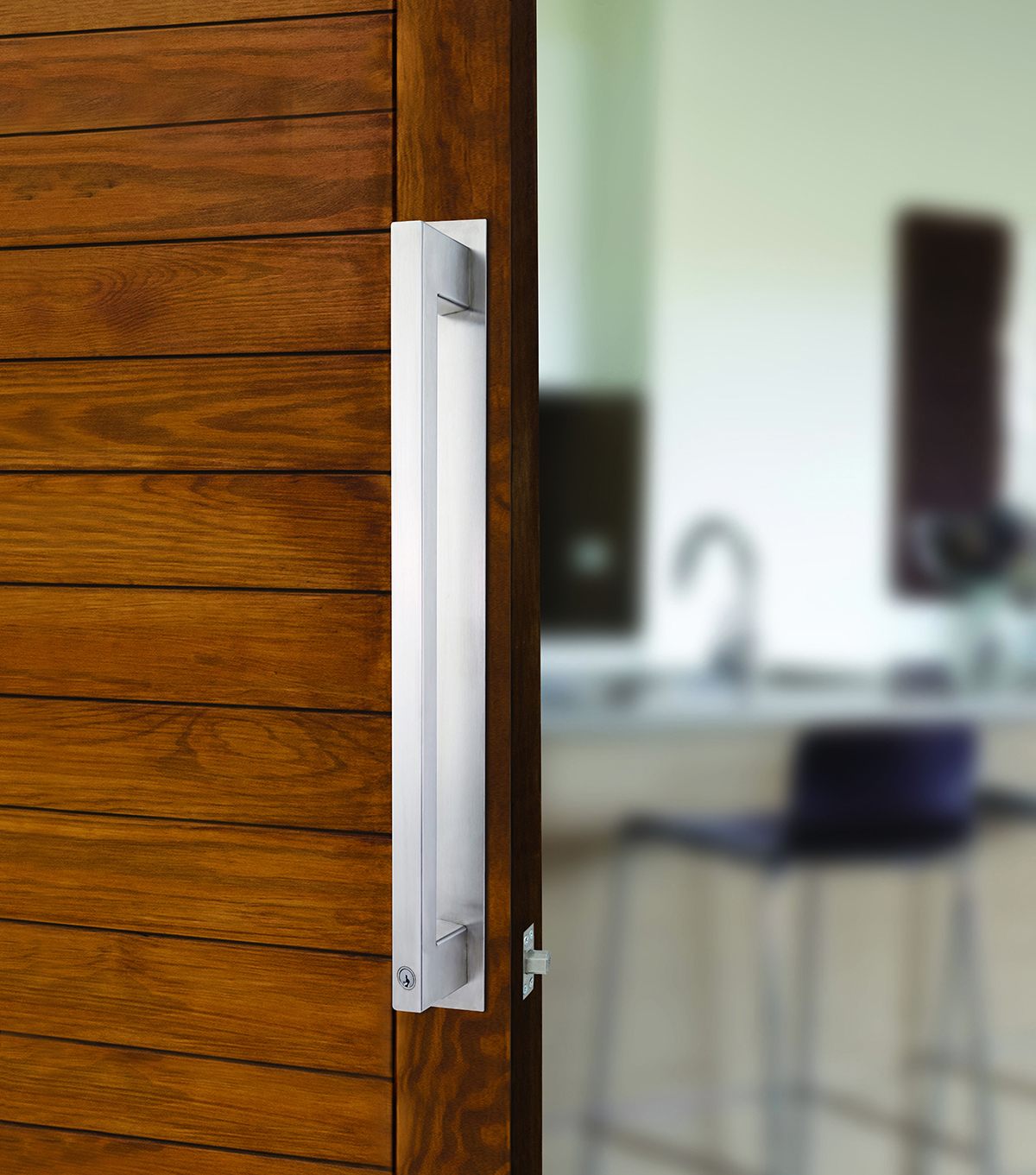

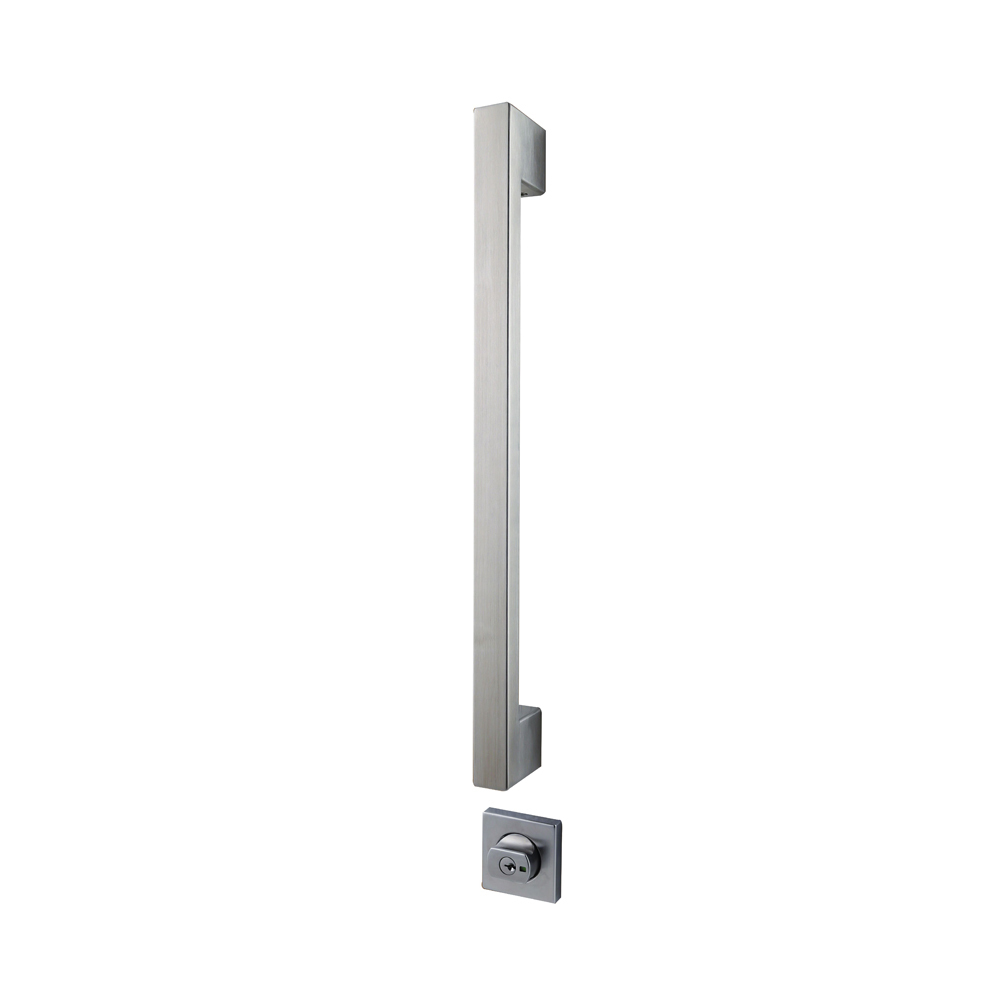

Lockwood Paradigm Pull Handle with Double Cylinder Deadbolt
005/DPHBSSS

PLEASE NOTE: This item is Non-returnable. Upon placing your order, it CAN'T be cancelled or returned (unless faulty or damaged)

This is a non-stocked item which leaves the warehouse in 10 business days after payment is made.

Pull Handle - Used as handling feature for opening and closing doors. (e.g. Usually used but not limited to entrance doors and some commercial buildings)

Pull Handle Function - Facilitates the operation of doors by gripping the pull handle with one or both hands before pulling it to enter or exit the door.

• Lockwood introduces its new Paradigm Pull Handle lockset for an elegant entry to your home!
• This Australian designed lockset comes in three variants including a Double Cylinder Deadbolt, Self-Latching Single and Double Cylinder.
• The Double Cylinder Deadbolt is highly recommended for residential homes whether it's a new build or an upgrade, this piece will make an excellent entrance choice. It incorporates the superior state-of-the-art design and safety features from the existing 005 Paradigm Deadbolt such as DualSelect, Safety Release and LockAlert that are renowned for performance.

Features:

• Three function modes with DualSelect provides combination of convenience and security
• High security cut resistant stainless steel bolt
• Brushed 304 Grade Stainless Steel Pull Handles
• Concealed screw fixings gives a neat and clean appearance
• Safety Release automatically unlocks internal knob upon key entry from outside
• LockAlert indicator shows lock status at a glance

The lockset can operate in three modes:

• Secure Mode - Locked from the inside and outside.
• Safety Mode - Locked from the outside and free to exit from inside.
• Passage Mode - Free to enter from outside and free to exit from inside.
• DualSelect - Turn the key for safety mode. Turn the key further to select secure mode.
• SafetyRelease - Automatically unlocks the internal knob upon entry minimising the risk of being locked in.
• Anti-Corrosion - Successfully tested in accordance with AS2332.3.1:2001 neutral salt spray test.
• Kinetic Defence - Bump and pick resistant.
• Counterbalance Bolt - Proportionally distributes the load between the door and door frame.
• 2 Keys Included - Can be keyed alike to other Lockwood door locks.

Specifications:

• External Handle Length: 600mm
• Internal Handle Length: 500mm
• Handle Width: 30mm
• Backset: 60mm - 70mm adjustable
• Door Thickness: 32 - 48mm, 32-36mm doors require a spacer (Included)
• Finish: Satin Stainless Steel
• Materials: 304 Grade Stainless Steel
• Strike: Box strike with concealed crossgrain door frame strengthening screw
• Magnets: Door Magnets included to hold the door(s) in position when in passage mode (free to enter from outside and free to exit from inside)
• Keying:
  • Supplied individually keyed with two keys per lock
  • 78,000 key combinations
  • Key blank KB2015P

Standards and Compliance:

• SL8 (Security) Australian Lock Standard (AS4145.2 - 2008)
• D8 (Durability) Australian Lock Standard (AS4145.2 - 2008)
• C6 (Corrosion) Australian Lock Standard AS4145.2 - 2008)
• K5 (Key Security) Australian Lock Standard AS4145.2 - 2008)
