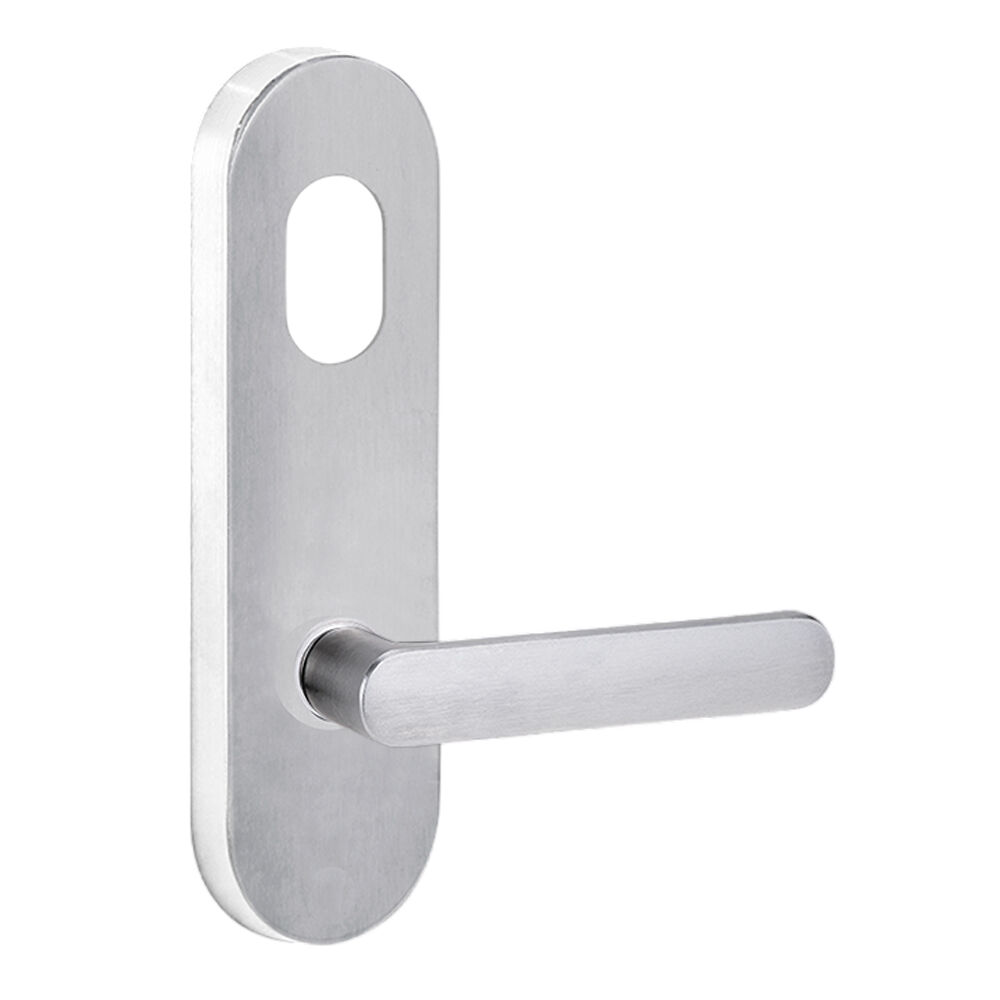

Lockwood 2801 Round End Plate with Cylinder Hole & 106 Lever
2801/106SC

PLEASE NOTE: This item is Non-returnable. Upon placing your order, it CAN'T be cancelled or returned (unless faulty or damaged)

This is a non-stocked item which leaves the warehouse in 8 business days after payment is made.

Round End Plate with Cylinder Hole is commonly used in furniture assembly for secure, discreet mounting.

Round End Plate with Cylinder Hole Function - securely mounts components with a cylinder-shaped hole.

Features:

• A classic oval shapped plate suiting corporate, commercial and public spaces with high use requirements
• Designed for use with Lockwood Synergy 3570 and Selector 3770 Series Mortice Locks
• Lockwood lever 106
• External plate with concealed fixing (screws included)
• Cylinder hole (cylinder not included)
• Non-handed
• Symmetrical levers may be reversed by removing the stop screw
• Plates are designed to fit back to back
• If outside plate is specified with concealed fixing, then the inside plate must be visible fixed

Specifications:

• Door Thickness: 32mm - 45mm
• Cylinder Pitch: 64mm
• Fixing Centre: 148mm

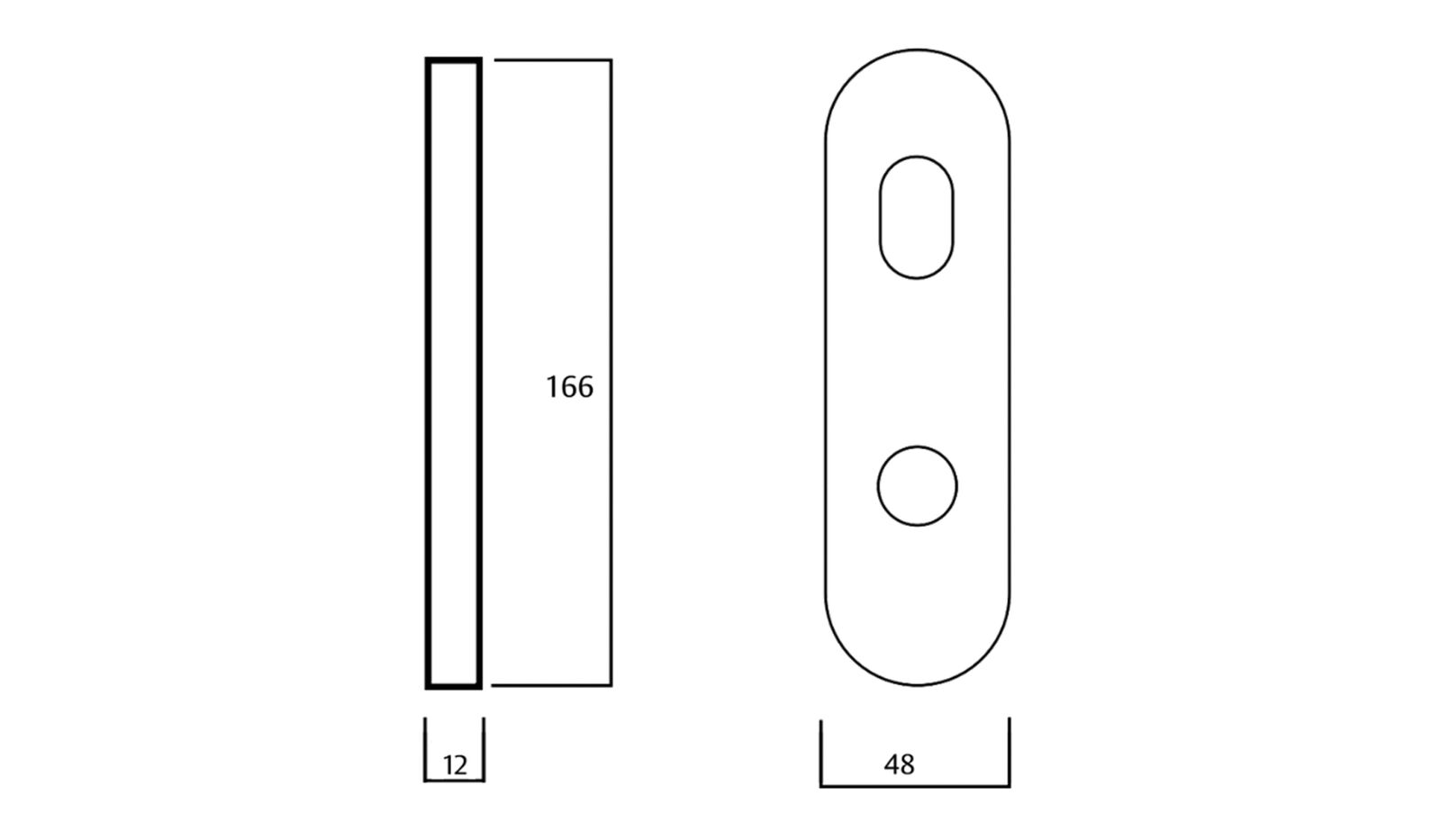

• Plate Dimensions:
  • Dimensions: 166mm
  • Cylinder pitch: 48mm
  • Fixing centres: 12mm
• Lever Dimensions
  • Length: 130mm
  • Projection: 48mm
  • Finger clearance: 40mm
• Finish: Satin Chrome
